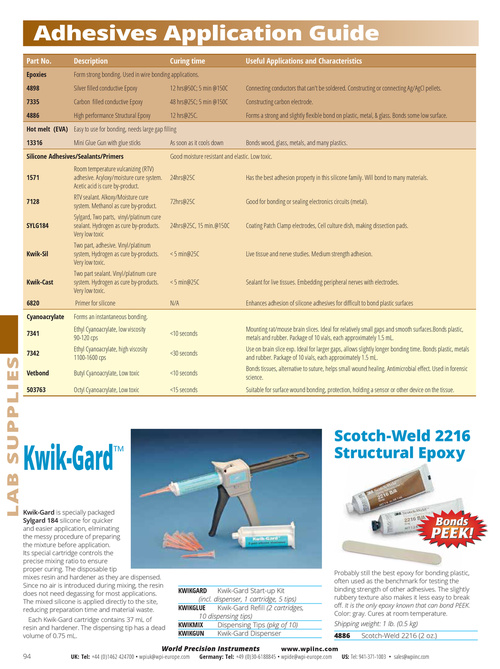

Adhesives Application Guide Part No. Epoxies 4898 7335 4886 Description Silver filled conductive Epoxy Carbon filled conductive Epoxy High performance Structural Epoxy Curing time 12 hrs@50C; 5 min @150C 48 hrs@25C; 5 min @150C 12 hrs@25C . Useful Applications and Characteristics Connecting conductors that can't be soldered . Constructing or connecting Ag/AgCl pellets . Constructing carbon electrode . Forms a strong and slightly flexible bond on plastic, metal, & glass . Bonds some low surface . Form strong bonding . Used in wire bonding applications . Hot melt (EVA) Easy to use for bonding, needs large gap filling 13316 Mini Glue Gun with glue sticks As soon as it cools down Bonds wood, glass, metals, and many plastics . Silicone Adhesives/Sealants/Primers 1571 7128 SYLG184 Room temperature vulcanizing (RTV) adhesive. Acyloxy/moisture cure system. Acetic acid is cure by-product . RTV sealant . Alkoxy/Moisture cure system . Methanol as cure by-product . Sylgard, Two parts, vinyl/platinum cure sealant . Hydrogen as cure by-products . Very low toxic Two part, adhesive. Vinyl/platinum system, Hydrogen as cure by-products . Very low toxic . Two part sealant . Vinyl/platinum cure system . Hydrogen as cure by-products . Very low toxic . Primer for silicone Forms an instantaneous bonding . Ethyl Cyanoacrylate, low viscosity 90-120 cps Ethyl Cyanoacrylate, high viscosity 1100-1600 cps Butyl Cyanoacrylate, Low toxic Octyl Cyanoacrylate, Low toxic Good moisture resistant and elastic . Low toxic . 24hrs@25C 72hrs@25C 24hrs@25C, 15 min .@150C Has the best adhesion property in this silicone family . Will bond to many materials . Good for bonding or sealing electronics circuits (metal) . Coating Patch Clamp electrodes, Cell culture dish, making dissection pads . Kwik-Sil < 5 min@25C Live tissue and nerve studies. Medium strength adhesion. Kwik-Cast 6820 Cyanoacrylate 7341 7342 Vetbond 503763 < 5 min@25C N/A Sealant for live tissues. Embedding peripheral nerves with electrodes. Enhances adhesion of silicone adhesives for difficult to bond plastic surfaces <10 seconds <30 seconds <10 seconds <15 seconds Mounting rat/mouse brain slices. Ideal for relatively small gaps and smooth surfaces.Bonds plastic, metals and rubber. Package of 10 vials, each approximately 1.5 mL. Use on brain slice exp . Ideal for larger gaps, allows slightly longer bonding time . Bonds plastic, metals and rubber. Package of 10 vials, each approximately 1.5 mL. Bonds tissues, alternative to suture, helps small wound healing. Antimicrobial effect. Used in forensic science . Suitable for surface wound bonding, protection, holding a sensor or other device on the tissue. LAB SUPPLIES Kwik-Gard ™ Scotch-Weld 2216 Structural Epoxy Kwik-Gard is specially packaged Sylgard 184 silicone for quicker and easier application, eliminating the messy procedure of preparing the mixture before application. Its special cartridge controls the precise mixing ratio to ensure proper curing. The disposable tip mixes resin and hardener as they are dispensed. Since no air is introduced during mixing, the resin does not need degassing for most applications. The mixed silicone is applied directly to the site, reducing preparation time and material waste. Each Kwik-Gard cartridge contains 37 mL of resin and hardener. The dispensing tip has a dead volume of 0.75 mL. KWIKGARD Kwik-Gard Start-up Kit (incl. dispenser, 1 cartridge, 5 tips) KWIKGLUE Kwik-Gard Refill (2 cartridges, 10 dispensing tips) KWIKMIX Dispensing Tips (pkg of 10) KWIKGUN Kwik-Gard Dispenser Probably still the best epoxy for bonding plastic, often used as the benchmark for testing the binding strength of other adhesives. The slightly rubbery texture also makes it less easy to break off. It is the only epoxy known that can bond PEEK. Color: gray. Cures at room temperature. Shipping weight: 1 lb. (0.5 kg) 4886 Scotch-Weld 2216 (2 oz.) 94 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
