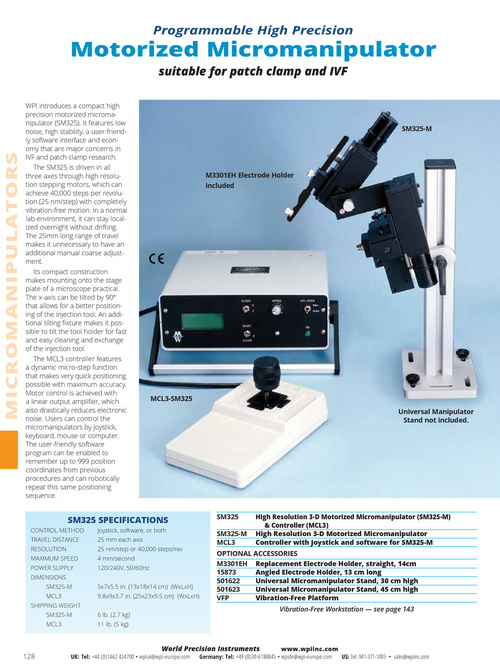

Motorized Micromanipulator suitable for patch clamp and IVF WPI introduces a compact high precision motorized micromanipulator (SM325). It features low noise, high stability, a user-friendly software interface and economy that are major concerns in IVF and patch clamp research. The SM325 is driven in all three axes through high resolution stepping motors, which can achieve 40,000 steps per revolution (25 nm/step) with completely vibration-free motion. In a normal lab environment, it can stay localized overnight without drifting. The 25mm long range of travel makes it unnecessary to have an additional manual coarse adjustment. Its compact construction makes mounting onto the stage plate of a microscope practical. The x-axis can be tilted by 90° that allows for a better positioning of the injection tool. An additional tilting fixture makes it possible to tilt the tool holder for fast and easy cleaning and exchange of the injection tool. The MCL3 controller features a dynamic micro-step function that makes very quick positioning possible with maximum accuracy. Motor control is achieved with a linear output amplifier, which also drastically reduces electronic noise. Users can control the micromanipulators by joystick, keyboard, mouse or computer. The user-friendly software program can be enabled to remember up to 999 position coordinates from previous procedures and can robotically repeat this same positioning sequence. Programmable High Precision SM325-M MICROMANIPULATORS M3301EH Electrode Holder included MCL3-SM325 Universal Manipulator Stand not included. SM325 SPECIFICATIONS CONTROL METHOD TRAVEL DISTANCE RESOLUTION MAXIMUM SPEED POWER SUPPLY DIMENSIONS SM325-M MCL3 SHIPPING WEIGHT SM325-M MCL3 6 lb. (2.7 kg) 11 lb. (5 kg) 5x7x5.5 in. (13x18x14 cm) (WxLxH) 9.8x9x3.7 in. (25x23x9.5 cm) (WxLxH) Joystick, software, or both 25 mm each axis 25 nm/step or 40,000 steps/rev 4 mm/second 120/240V, 50/60Hz SM325 SM325-M MCL3 High Resolution 3-D Motorized Micromanipulator (SM325-M) & Controller (MCL3) High Resolution 3-D Motorized Micromanipulator Controller with Joystick and software for SM325-M OPTIONAL ACCESSORIES M3301EH Replacement Electrode Holder, straight, 14cm 15873 Angled Electrode Holder, 13 cm long 501622 Universal Micromanipulator Stand, 30 cm high 501623 Universal Micromanipulator Stand, 45 cm high VFP Vibration-Free Platform Vibration-Free Workstation — see page 143 128 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
