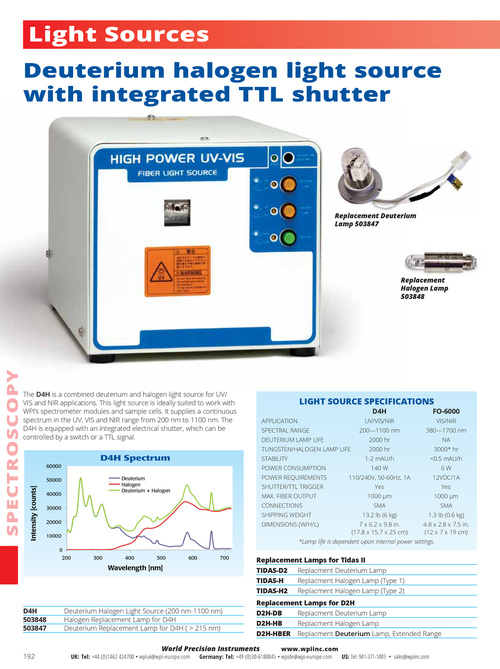

Light Sources Deuterium halogen light source with integrated TTL shutter Replacement Deuterium Lamp 503847 Replacement Halogen Lamp 503848 SPEC TROS CO PY The D4H is a combined deuterium and halogen light source for UV/ VIS and NIR applications. This light source is ideally suited to work with WPI’s spectrometer modules and sample cells. It supplies a continuous spectrum in the UV, VIS and NIR range from 200 nm to 1100 nm. The D4H is equipped with an integrated electrical shutter, which can be controlled by a switch or a TTL signal. LIGHT SOURCE SPECIFICATIONS D4H APPLICATION SPECTRAL RANGE DEUTERIUM LAMP LIFE TUNGSTEN/HALOGEN LAMP LIFE STABILITY POWER CONSUMPTION POWER REQUIREMENTS SHUTTER/TTL TRIGGER MAX. FIBER OUTPUT CONNECTIONS SHIPPING WEIGHT DIMENSIONS (W/H/L) UV/VIS/NIR 200—1100 nm 2000 hr 2000 hr 1-2 mAU/h 140 W 110/240V, 50-60Hz, 1A Yes 1000 µm SMA 13.2 lb (6 kg) 7 x 6.2 x 9.8 in. (17.8 x 15.7 x 25 cm) FO-6000 VIS/NIR 380—1700 nm NA 3000* hr <0.5 mAU/h 6W 12VDC/1A Yes 1000 µm SMA 1.3 lb (0.6 kg) 4.8 x 2.8 x 7.5 in. (12 x 7 x 19 cm) D4H Spectrum 60000 50000 Deuterium Halogen Deuterium + Halogen Intensity [counts] 40000 30000 20000 10000 0 200 300 *Lamp life is dependent upon internal power settings. 400 500 600 700 Wavelength [nm] Replacement Lamps for Tidas II TIDAS-D2 Replacment Deuterium Lamp TIDAS-H Replacment Halogen Lamp (Type 1) TIDAS-H2 Replacment Halogen Lamp (Type 2) Replacement Lamps for D2H D2H-DB Replacment Deuterium Lamp D2H-HB Replacment Halogen Lamp D2H-HBER Replacment Deuterium Lamp, Extended Range D4H 503848 503847 Deuterium Halogen Light Source (200 nm-1100 nm) Halogen Replacement Lamp for D4H Deuterium Replacement Lamp for D4H ( > 215 nm) 192 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
