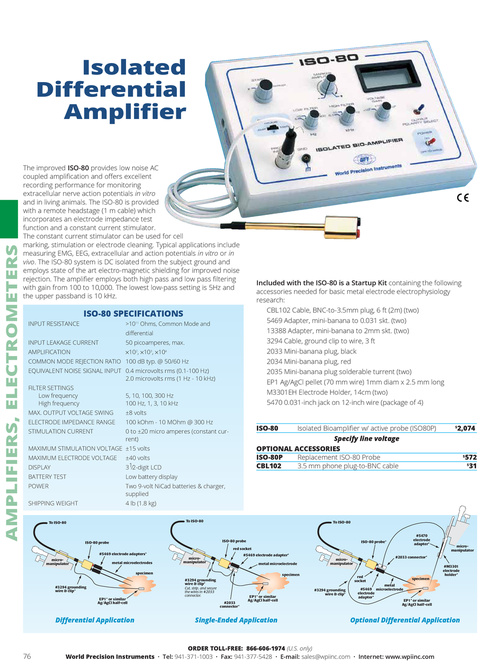

Isolated Differential Amplifier The improved ISO-80 provides low noise AC coupled amplification and offers excellent recording performance for monitoring extracellular nerve action potentials in vitro and in living animals. The ISO-80 is provided with a remote headstage (1 m cable) which incorporates an electrode impedance test function and a constant current stimulator. The constant current stimulator can be used for cell marking, stimulation or electrode cleaning. Typical applications include measuring EMG, EEG, extracellular and action potentials in vitro or in vivo. The ISO-80 system is DC isolated from the subject ground and employs state of the art electro-magnetic shielding for improved noise rejection. The amplifier employs both high pass and low pass filtering with gain from 100 to 10,000. The lowest low-pass setting is 5Hz and the upper passband is 10 kHz. AMPLIFIERS, ELECTROMETERS ISO-80 SPECIFICATIONS INPUT RESISTANCE INPUT LEAKAGE CURRENT AMPLIFICATION >1011 Ohms, Common Mode and differential 50 picoamperes, max. ×102, ×103, ×104 COMMON MODE REJECTION RATIO 100 dB typ. @ 50/60 Hz EQUIVALENT NOISE SIGNAL INPUT 0.4 microvolts rms (0.1-100 Hz) 2.0 microvolts rms (1 Hz - 10 kHz) FILTER SETTINGS Low frequency High frequency MAX. OUTPUT VOLTAGE SWING ELECTRODE IMPEDANCE RANGE STIMULATION CURRENT 5, 10, 100, 300 Hz 100 Hz, 1, 3, 10 kHz ±8 volts 100 kOhm - 10 MOhm @ 300 Hz 0 to ±20 micro amperes (constant current) ±40 volts 31⁄2-digit LCD Low battery display Two 9-volt NiCad batteries & charger, supplied 4 lb (1.8 kg) To ISO-80 Included with the ISO-80 is a Startup Kit containing the following accessories needed for basic metal electrode electrophysiology research: CBL102 Cable, BNC-to-3.5mm plug, 6 ft (2m) (two) 5469 Adapter, mini-banana to 0.031 skt. (two) 13388 Adapter, mini-banana to 2mm skt. (two) 3294 Cable, ground clip to wire, 3 ft 2033 Mini-banana plug, black 2034 Mini-banana plug, red 2035 Mini-banana plug solderable turrent (two) EP1 Ag/AgCl pellet (70 mm wire) 1mm diam x 2.5 mm long M3301EH Electrode Holder, 14cm (two) 5470 0.031-inch jack on 12-inch wire (package of 4) ISO-80 Isolated Bioamplifier w/ active probe (ISO80P) Specify line voltage OPTIONAL ACCESSORIES ISO-80P Replacement ISO-80 Probe CBL102 3.5 mm phone plug-to-BNC cable 2,074 $ MAXIMUM STIMULATION VOLTAGE ±15 volts MAXIMUM ELECTRODE VOLTAGE DISPLAY BATTERY TEST POWER SHIPPING WEIGHT To ISO-80 $ 572 $ 31 To ISO-80 #5470 electrode adapter* #2033 connector* #M3301 electrode holder* ISO-80 probe #5469 electrode adapters* micromanipulator metal microelectrodes specimen #3294 grounding wire & clip* Cut, strip, and secure the wires in #2033 connector. micromanipulator ISO-80 probe red socket #5469 electrode adapter* metal microelectrode specimen micromanipulator ISO-80 probe* micromanipulator red socket #3294 grounding wire & clip* metal #5469 microelectrode electrode adapter* specimen #3294 grounding wire & clip* EP1* or similar Ag/AgCl half-cell #2033 connector* EP1* or similar Ag/AgCl half-cell EP1* or similar Ag/AgCl half-cell Differential Application Single-Ended Application Optional Differential Application 76 ORDER TOLL-FREE: 866-606-1974 (U.S. only) World Precision Instruments • Tel: 941-371-1003 • Fax: 941-377-5428 • E-mail: sales@wpiinc.com • Internet: www.wpiinc.com
