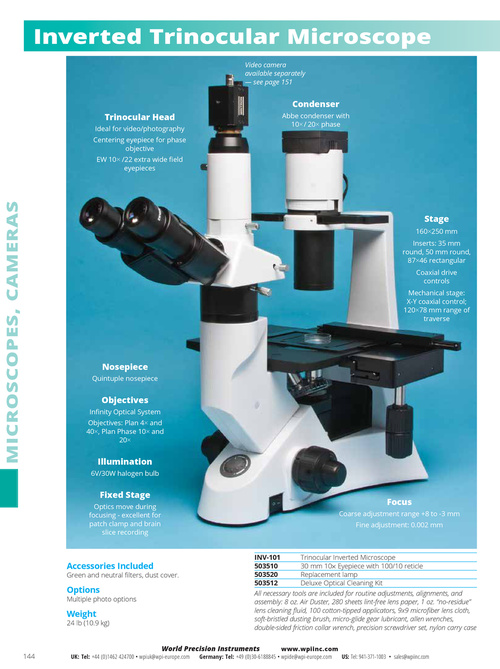

Video camera available separately — see page 151 Condenser Trinocular Head Ideal for video/photography Centering eyepiece for phase objective EW 10× /22 extra wide field eyepieces Abbe condenser with 10× / 20× phase MICROSCOPES, CAMERAS Stage 160×250 mm Inserts: 35 mm round, 50 mm round, 87×46 rectangular Coaxial drive controls Mechanical stage: X-Y coaxial control; 120×78 mm range of traverse Nosepiece Quintuple nosepiece Objectives Infinity Optical System Objectives: Plan 4× and 40×, Plan Phase 10× and 20× Illumination 6V/30W halogen bulb Fixed Stage Optics move during focusing - excellent for patch clamp and brain slice recording Focus Coarse adjustment range +8 to -3 mm Fine adjustment: 0.002 mm Accessories Included Options Weight Green and neutral filters, dust cover. Multiple photo options 24 lb (10.9 kg) INV-101 Trinocular Inverted Microscope 503510 30 mm 10× Eyepiece with 100/10 reticle 503520 Replacement lamp 503512 Deluxe Optical Cleaning Kit All necessary tools are included for routine adjustments, alignments, and assembly: 8 oz. Air Duster, 280 sheets lint-free lens paper, 1 oz. “no-residue” lens cleaning fluid, 100 cotton-tipped applicators, 9x9 microfiber lens cloth, soft-bristled dusting brush, micro-glide gear lubricant, allen wrenches, double-sided friction collar wrench, precision screwdriver set, nylon carry case www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 144 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments
