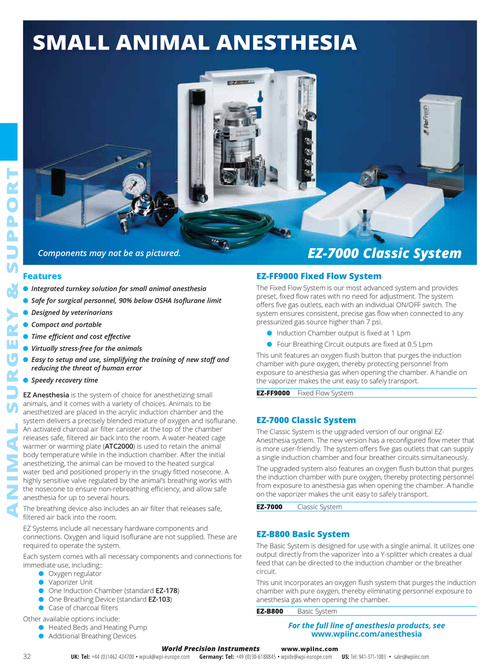

SMALL ANIMAL ANESTHESIA ANIMAL SURGERY & SUPPORT Components may not be as pictured. Features ● Integrated turnkey solution for small animal anesthesia ● Safe for surgical personnel, 90% below OSHA Isoflurane limit ● Designed by veterinarians ● Compact and portable ● Time efficient and cost effective ● Virtually stress-free for the animals ● Easy to setup and use, simplifying the training of new staff and reducing the threat of human error ● Speedy recovery time EZ Anesthesia is the system of choice for anesthetizing small animals, and it comes with a variety of choices. Animals to be anesthetized are placed in the acrylic induction chamber and the system delivers a precisely blended mixture of oxygen and isoflurane. An activated charcoal air filter canister at the top of the chamber releases safe, filtered air back into the room. A water-heated cage warmer or warming plate (ATC2000) is used to retain the animal body temperature while in the induction chamber. After the initial anesthetizing, the animal can be moved to the heated surgical water bed and positioned properly in the snugly fitted nosecone. A highly sensitive valve regulated by the animal’s breathing works with the nosecone to ensure non-rebreathing efficiency, and allow safe anesthesia for up to several hours. The breathing device also includes an air filter that releases safe, filtered air back into the room. EZ Systems include all necessary hardware components and connections. Oxygen and liquid Isoflurane are not supplied. These are required to operate the system. Each system comes with all necessary components and connections for immediate use, including:: ● Oxygen regulator ● Vaporizer Unit ● One Induction Chamber (standard EZ-178) ● One Breathing Device (standard EZ-103) ● Case of charcoal filters Other available options include: ● Heated Beds and Heating Pump ● Additional Breathing Devices 32 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com EZ-7000 Classic System EZ-FF9000 Fixed Flow System The Fixed Flow System is our most advanced system and provides preset, fixed flow rates with no need for adjustment. The system offers five gas outlets, each with an individual ON/OFF switch. The system ensures consistent, precise gas flow when connected to any pressurized gas source higher than 7 psi. ● Induction Chamber output is fixed at 1 Lpm ● Four Breathing Circuit outputs are fixed at 0.5 Lpm This unit features an oxygen flush button that purges the induction chamber with pure oxygen, thereby protecting personnel from exposure to anesthesia gas when opening the chamber. A handle on the vaporizer makes the unit easy to safely transport. EZ-FF9000 Fixed Flow System EZ-7000 Classic System The Classic System is the upgraded version of our original EZAnesthesia system. The new version has a reconfigured flow meter that is more user-friendly. The system offers five gas outlets that can supply a single induction chamber and four breather circuits simultaneously. The upgraded system also features an oxygen flush button that purges the induction chamber with pure oxygen, thereby protecting personnel from exposure to anesthesia gas when opening the chamber. A handle on the vaporizer makes the unit easy to safely transport. EZ-7000 Classic System EZ-B800 Basic System The Basic System is designed for use with a single animal. It utilizes one output directly from the vaporizer into a Y-splitter which creates a dual feed that can be directed to the induction chamber or the breather circuit. This unit incorporates an oxygen flush system that purges the induction chamber with pure oxygen, thereby eliminating personnel exposure to anesthesia gas when opening the chamber. EZ-B800 Basic System For the full line of anesthesia products, see www.wpiinc.com/anesthesia World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
