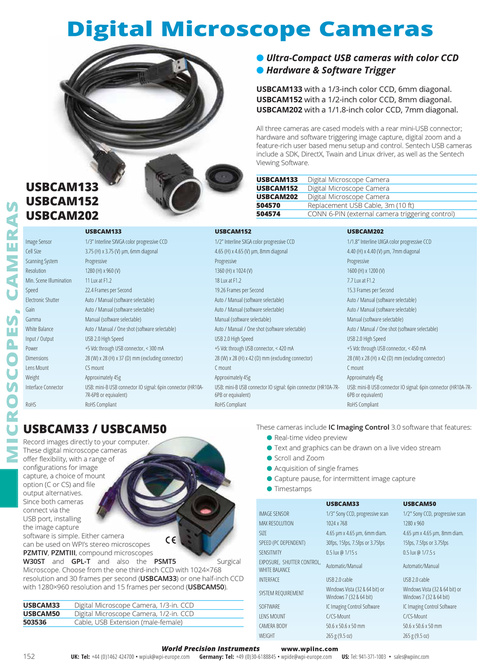

Digital Microscope Cameras
● Ultra-Compact USB cameras with color CCD ● Hardware & Software Trigger
USBCAM133 with a 1/3-inch color CCD, 6mm diagonal. USBCAM152 with a 1/2-inch color CCD, 8mm diagonal. USBCAM202 with a 1/1.8-inch color CCD, 7mm diagonal.
All three cameras are cased models with a rear mini-USB connector; hardware and software triggering image capture, digital zoom and a feature-rich user based menu setup and control. Sentech USB cameras include a SDK, DirectX, Twain and Linux driver, as well as the Sentech Viewing Software.
MICROSCOPES, CAMERAS
USBCAM133 USBCAM152 USBCAM202
USBCAM133 Image Sensor Cell Size Scanning System Resolution Min . Scene Illumination Speed Electronic Shutter Gain Gamma White Balance Input / Output Power Dimensions Lens Mount Weight Interface Connector RoHS 1/3” Interline SXVGA color progressive CCD 3 .75 (H) x 3 .75 (V) µm, 6mm diagonal Progressive 1280 (H) x 960 (V) 11 Lux at F1 .2 22 .4 Frames per Second Auto / Manual (software selectable) Auto / Manual (software selectable) Manual (software selectable) Auto / Manual / One shot (software selectable) USB 2 .0 High Speed +5 Vdc through USB connector, < 300 mA 28 (W) x 28 (H) x 37 (D) mm (excluding connector) CS mount Approximately 45g USB: mini-B USB connector IO signal: 6pin connector (HR10A7R-6PB or equivalent) RoHS Compliant USBCAM152
USBCAM133 USBCAM152 USBCAM202 504570 504574
Digital Microscope Camera Digital Microscope Camera Digital Microscope Camera Replacement USB Cable, 3m (10 ft) CONN 6-PIN (external camera triggering control)
USBCAM202 1/1.8” Interline UXGA color progressive CCD 4 .40 (H) x 4 .40 (V) µm, 7mm diagonal Progressive 1600 (H) x 1200 (V) 7 .7 Lux at F1 .2 15 .3 Frames per Second Auto / Manual (software selectable) Auto / Manual (software selectable) Manual (software selectable) Auto / Manual / One shot (software selectable) USB 2 .0 High Speed +5 Vdc through USB connector, < 450 mA 28 (W) x 28 (H) x 42 (D) mm (excluding connector) C mount Approximately 45g USB: mini-B USB connector IO signal: 6pin connector (HR10A-7R6PB or equivalent) RoHS Compliant
1/2” Interline SXGA color progressive CCD 4 .65 (H) x 4 .65 (V) µm, 8mm diagonal Progressive 1360 (H) x 1024 (V) 18 Lux at F1 .2 19 .26 Frames per Second Auto / Manual (software selectable) Auto / Manual (software selectable) Manual (software selectable) Auto / Manual / One shot (software selectable) USB 2 .0 High Speed +5 Vdc through USB connector, < 420 mA 28 (W) x 28 (H) x 42 (D) mm (excluding connector) C mount Approximately 45g USB: mini-B USB connector IO signal: 6pin connector (HR10A-7R6PB or equivalent) RoHS Compliant
USBCAM33 / USBCAM50
Record images directly to your computer. These digital microscope cameras offer flexibility, with a range of configurations for image capture, a choice of mount option (C or CS) and file output alternatives. Since both cameras connect via the USB port, installing the image capture software is simple. Either camera can be used on WPI’s stereo microscopes PZMTIV, PZMTIII, compound microscopes W30ST and GPL-T and also the PSMT5 Surgical Microscope. Choose from the one third-inch CCD with 1024×768 resolution and 30 frames per second (USBCAM33) or one half-inch CCD with 1280×960 resolution and 15 frames per second (USBCAM50). USBCAM33 USBCAM50 503536 Digital Microscope Camera, 1/3-in. CCD Digital Microscope Camera, 1/2-in. CCD Cable, USB Extension (male-female)
These cameras include IC Imaging Control 3.0 software that features: ● Real-time video preview ● Text and graphics can be drawn on a live video stream ● Scroll and Zoom ● Acquisition of single frames ● Capture pause, for intermittent image capture ● Timestamps
USBCAM33 IMAGE SENSOR MAX RESOLUTION SIZE SPEED (PC DEPENDENT) SENSITIVITY 1/3” Sony CCD, progressive scan 1024 x 768 4 .65 µm x 4 .65 µm, 6mm diam . 30fps, 15fps, 7 .5fps or 3 .75fps 0 .5 lux @ 1/15 s USBCAM50 1/2" Sony CCD, progressive scan 1280 x 960 4 .65 µm x 4 .65 µm, 8mm diam . 15fps, 7 .5fps or 3 .75fps 0 .5 lux @ 1/7 .5 s Automatic/Manual USB 2 .0 cable Windows Vista (32 & 64 bit) or Windows 7 (32 & 64 bit) IC Imaging Control Software C/CS-Mount 50 .6 x 50 .6 x 50 mm 265 g (9 .5 oz)
EXPOSURE, SHUTTER CONTROL, Automatic/Manual WHITE BALANCE INTERFACE SYSTEM REQUIREMENT SOFTWARE LENS MOUNT CAMERA BODY WEIGHT USB 2 .0 cable Windows Vista (32 & 64 bit) or Windows 7 (32 & 64 bit) IC Imaging Control Software C/CS-Mount 50 .6 x 50 .6 x 50 mm 265 g (9 .5 oz)
