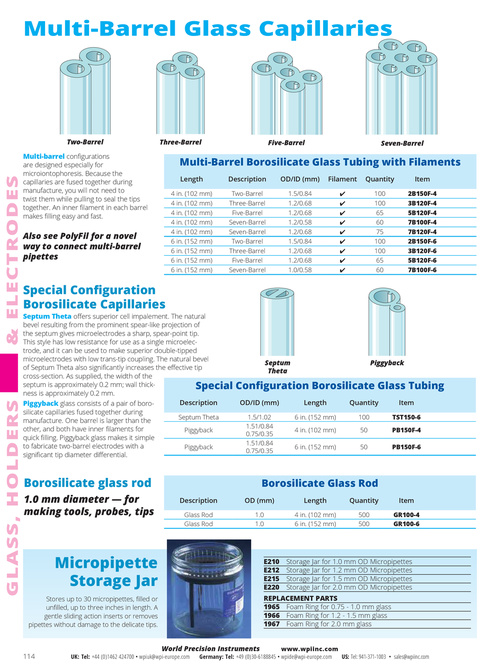

Multi-Barrel Glass Capillaries Two-Barrel Multi-barrel configurations are designed especially for microiontophoresis. Because the capillaries are fused together during manufacture, you will not need to twist them while pulling to seal the tips together. An inner filament in each barrel makes filling easy and fast. Three-Barrel Five-Barrel Seven-Barrel Multi-Barrel Borosilicate Glass Tubing with Filaments Length 4 in. (102 mm) 4 in. (102 mm) 4 in. (102 mm) 4 in. (102 mm) 4 in. (102 mm) 6 in. (152 mm) 6 in. (152 mm) 6 in. (152 mm) 6 in. (152 mm) & ELECTRODES Description Two-Barrel Three-Barrel Five-Barrel Seven-Barrel Seven-Barrel Two-Barrel Three-Barrel Five-Barrel Seven-Barrel OD/ID (mm) 1.5/0.84 1.2/0.68 1.2/0.68 1.2/0.58 1.2/0.68 1.5/0.84 1.2/0.68 1.2/0.68 1.0/0.58 Filament 4 4 4 4 4 4 4 4 4 Quantity 100 100 65 60 75 100 100 65 60 Item 2B150F-4 3B120F-4 5B120F-4 7B100F-4 7B120F-4 2B150F-6 3B120F-6 5B120F-6 7B100F-6 Also see PolyFil for a novel way to connect multi-barrel pipettes GLASS, HOLDERS Septum Theta offers superior cell impalement. The natural bevel resulting from the prominent spear-like projection of the septum gives microelectrodes a sharp, spear-point tip. This style has low resistance for use as a single microelectrode, and it can be used to make superior double-tipped microelectrodes with low trans-tip coupling. The natural bevel of Septum Theta also significantly increases the effective tip cross-section. As supplied, the width of the septum is approximately 0.2 mm; wall thickSpecial ness is approximately 0.2 mm. Description Piggyback glass consists of a pair of borosilicate capillaries fused together during Septum Theta manufacture. One barrel is larger than the other, and both have inner filaments for Piggyback quick filling. Piggyback glass makes it simple to fabricate two-barrel electrodes with a Piggyback significant tip diameter differential. Special Configuration Borosilicate Capillaries Septum Theta Piggyback Configuration Borosilicate Glass Tubing OD/ID (mm) 1.5/1.02 1.51/0.84 0.75/0.35 1.51/0.84 0.75/0.35 Length 6 in. (152 mm) 4 in. (102 mm) 6 in. (152 mm) Quantity 100 50 50 Item TST150-6 PB150F-4 PB150F-6 Borosilicate glass rod 1.0 mm diameter — for making tools, probes, tips Description Glass Rod Glass Rod Borosilicate Glass Rod OD (mm) 1.0 1.0 Length 4 in. (102 mm) 6 in. (152 mm) Quantity 500 500 Item GR100-4 GR100-6 Micropipette Storage Jar Stores up to 30 micropipettes, filled or unfilled, up to three inches in length. A gentle sliding action inserts or removes pipettes without damage to the delicate tips. E210 E212 E215 E220 Storage Jar for 1.0 mm OD Micropipettes Storage Jar for 1.2 mm OD Micropipettes Storage Jar for 1.5 mm OD Micropipettes Storage Jar for 2.0 mm OD Micropipettes REPLACEMENT PARTS 1965 Foam Ring for 0.75 - 1.0 mm glass 1966 Foam Ring for 1.2 - 1.5 mm glass 1967 Foam Ring for 2.0 mm glass World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 114 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com
