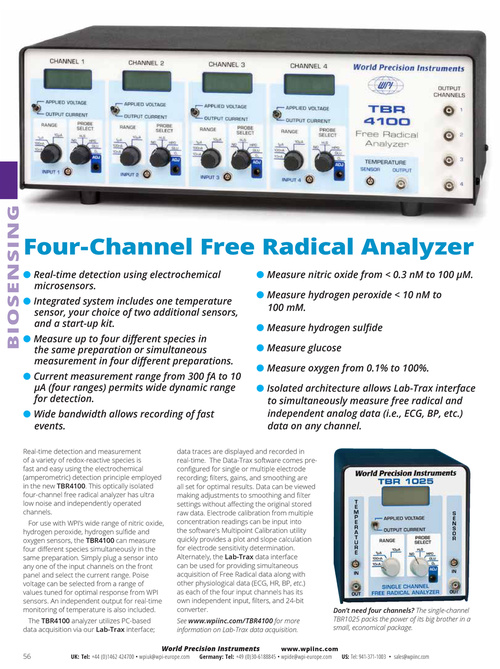

BIOSENSING Four-Channel Free Radical Analyzer ● Measure nitric oxide from < 0.3 nM to 100 µM. ● Measure hydrogen peroxide < 10 nM to 100 mM. ● Measure hydrogen sulfide ● Measure glucose ● Measure oxygen from 0.1% to 100%. ● Isolated architecture allows Lab-Trax interface to simultaneously measure free radical and independent analog data (i.e., ECG, BP, etc.) data on any channel. ● Real-time detection using electrochemical microsensors. ● Integrated system includes one temperature sensor, your choice of two additional sensors, and a start-up kit. ● Measure up to four different species in the same preparation or simultaneous measurement in four different preparations. ● Current measurement range from 300 fA to 10 µA (four ranges) permits wide dynamic range for detection. ● Wide bandwidth allows recording of fast events. Real-time detection and measurement of a variety of redox-reactive species is fast and easy using the electrochemical (amperometric) detection principle employed in the new TBR4100. This optically isolated four-channel free radical analyzer has ultra low noise and independently operated channels. For use with WPI’s wide range of nitric oxide, hydrogen peroxide, hydrogen sulfide and oxygen sensors, the TBR4100 can measure four different species simultaneously in the same preparation. Simply plug a sensor into any one of the input channels on the front panel and select the current range. Poise voltage can be selected from a range of values tuned for optimal response from WPI sensors. An independent output for real-time monitoring of temperature is also included. The TBR4100 analyzer utilizes PC-based data acquisition via our Lab-Trax interface; data traces are displayed and recorded in real-time. The Data-Trax software comes preconfigured for single or multiple electrode recording; filters, gains, and smoothing are all set for optimal results. Data can be viewed making adjustments to smoothing and filter settings without affecting the original stored raw data. Electrode calibration from multiple concentration readings can be input into the software's Multipoint Calibration utility quickly provides a plot and slope calculation for electrode sensitivity determination. Alternately, the Lab-Trax data interface can be used for providing simultaneous acquisition of Free Radical data along with other physiological data (ECG, HR, BP, etc.) as each of the four input channels has its own independent input, filters, and 24-bit converter. See www.wpiinc.com/TBR4100 for more information on Lab-Trax data acquisition. Don’t need four channels? The single-channel TBR1025 packs the power of its big brother in a small, economical package. 56 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
