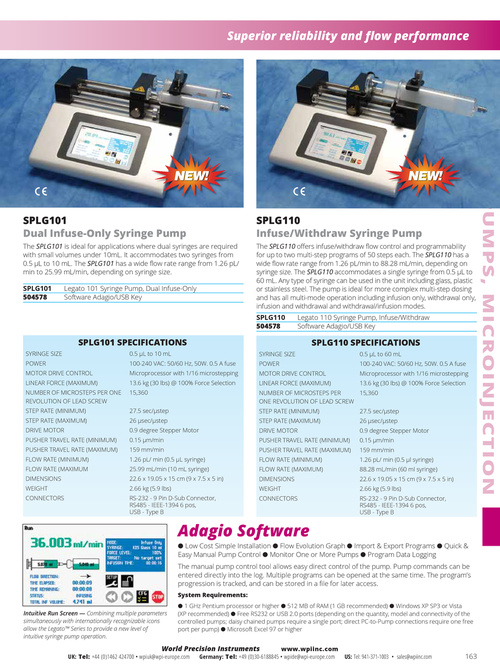

Superior reliability and flow performance
PUMPS, MICROINJECTION
SPLG101 Dual Infuse-Only Syringe Pump
The SPLG101 is ideal for applications where dual syringes are required with small volumes under 10mL. It accommodates two syringes from 0.5 µL to 10 mL. The SPLG101 has a wide flow rate range from 1.26 pL/ min to 25.99 mL/min, depending on syringe size. SPLG101 504578 Legato 101 Syringe Pump, Dual Infuse-Only Software Adagio/USB Key
SPLG110 Infuse/Withdraw Syringe Pump
The SPLG110 offers infuse/withdraw flow control and programmability for up to two multi-step programs of 50 steps each. The SPLG110 has a wide flow rate range from 1.26 pL/min to 88.28 mL/min, depending on syringe size. The SPLG110 accommodates a single syringe from 0.5 µL to 60 mL. Any type of syringe can be used in the unit including glass, plastic or stainless steel. The pump is ideal for more complex multi-step dosing and has all multi-mode operation including infusion only, withdrawal only, infusion and withdrawal and withdrawal/infusion modes. SPLG110 504578 Legato 110 Syringe Pump, Infuse/Withdraw Software Adagio/USB Key
SPLG101 SPECIFICATIONS
SYRINGE SIZE POWER MOTOR DRIVE CONTROL LINEAR FORCE (MAXIMUM) NUMBER OF MICROSTEPS PER ONE REVOLUTION OF LEAD SCREW STEP RATE (MINIMUM) STEP RATE (MAXIMUM) DRIVE MOTOR PUSHER TRAVEL RATE (MINIMUM) PUSHER TRAVEL RATE (MAXIMUM) FLOW RATE (MINIMUM) FLOW RATE (MAXIMUM DIMENSIONS WEIGHT CONNECTORS 0.5 μL to 10 mL 100-240 VAC: 50/60 Hz, 50W. 0.5 A fuse Microprocessor with 1/16 microstepping 13.6 kg (30 lbs) @ 100% Force Selection 15,360 27.5 sec/μstep 26 μsec/μstep 0.9 degree Stepper Motor 0.15 μm/min 159 mm/min 1.26 pL/ min (0.5 μL syringe) 25.99 mL/min (10 mL syringe) 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in) 2.66 kg (5.9 lbs) RS-232 - 9 Pin D-Sub Connector, RS485 - IEEE-1394 6 pos, USB - Type B SYRINGE SIZE POWER
SPLG110 SPECIFICATIONS
0.5 μL to 60 mL 100-240 VAC: 50/60 Hz, 50W. 0.5 A fuse Microprocessor with 1/16 microstepping 13.6 kg (30 lbs) @ 100% Force Selection MOTOR DRIVE CONTROL LINEAR FORCE (MAXIMUM)
NUMBER OF MICROSTEPS PER 15,360 ONE REVOLUTION OF LEAD SCREW STEP RATE (MINIMUM) STEP RATE (MAXIMUM) DRIVE MOTOR PUSHER TRAVEL RATE (MINIMUM) PUSHER TRAVEL RATE (MAXIMUM) FLOW RATE (MINIMUM) FLOW RATE (MAXIMUM) DIMENSIONS WEIGHT CONNECTORS 27.5 sec/μstep 26 μsec/μstep 0.9 degree Stepper Motor 0.15 μm/min 159 mm/min 1.26 pL/ min (0.5 μl syringe) 88.28 mL/min (60 ml syringe) 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in) 2.66 kg (5.9 lbs) RS-232 - 9 Pin D-Sub Connector, RS485 - IEEE-1394 6 pos, USB - Type B
Adagio Software
● Low Cost Simple Installation ● Flow Evolution Graph ● Import & Export Programs ● Quick & Easy Manual Pump Control ● Monitor One or More Pumps ● Program Data Logging The manual pump control tool allows easy direct control of the pump. Pump commands can be entered directly into the log. Multiple programs can be opened at the same time. The program’s progression is tracked, and can be stored in a file for later access.
System Requirements: Intuitive Run Screen — Combining multiple parameters simultaneously with internationally recognizable icons allow the Legato™ Series to provide a new level of intuitive syringe pump operation. ● 1 GHz Pentium processor or higher ● 512 MB of RAM (1 GB recommended) ● Windows XP SP3 or Vista (XP recommended) ● Free RS232 or USB 2.0 ports (depending on the quantity, model and connectivity of the controlled pumps; daisy chained pumps require a single port; direct PC-to-Pump connections require one free port per pump) ● Microsoft Excel 97 or higher www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com
UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com
World Precision Instruments
US: Tel: 941-371-1003 • sales@wpiinc.com
163
|
