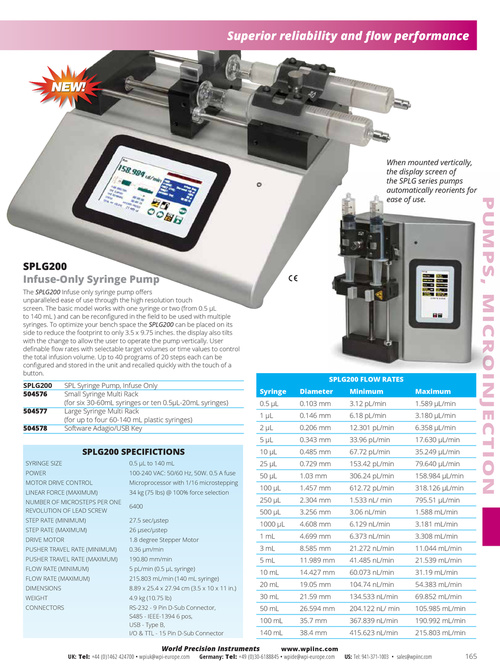

Superior reliability and flow performance When mounted vertically, the display screen of the SPLG series pumps automatically reorients for ease of use. PUMPS, MICROINJECTION SPLG200 Infuse-Only Syringe Pump The SPLG200 Infuse only syringe pump offers unparalleled ease of use through the high resolution touch screen. The basic model works with one syringe or two (from 0.5 μL to 140 mL ) and can be reconfigured in the field to be used with multiple syringes. To optimize your bench space the SPLG200 can be placed on its side to reduce the footprint to only 3.5 x 9.75 inches. the display also tilts with the change to allow the user to operate the pump vertically. User definable flow rates with selectable target volumes or time values to control the total infusion volume. Up to 40 programs of 20 steps each can be configured and stored in the unit and recalled quickly with the touch of a button. SPLG200 504576 504577 504578 SPL Syringe Pump, Infuse Only Small Syringe Multi Rack (for six 30-60mL syringes or ten 0.5µL-20mL syringes) Large Syringe Multi Rack (for up to four 60-140 mL plastic syringes) Software Adagio/USB Key SPLG200 FLOW RATES Syringe 0.5 μL 1 μL 2 μL 5 μL 10 μL 25 μL 50 μL 100 μL 250 μL 500 μL 1000 μL 1 mL 3 mL 5 mL 10 mL 20 mL 30 mL 50 mL 100 mL 140 mL Diameter 0.103 mm 0.146 mm 0.206 mm 0.343 mm 0.485 mm 0.729 mm 1.03 mm 1.457 mm 2.304 mm 3.256 mm 4.608 mm 4.699 mm 8.585 mm 11.989 mm 14.427 mm 19.05 mm 21.59 mm 26.594 mm 35.7 mm 38.4 mm Minimum 3.12 pL/min 6.18 pL/min 12.301 pL/min 33.96 pL/min 67.72 pL/min 153.42 pL/min 306.24 pL/min 612.72 pL/min 1.533 nL/ min 3.06 nL/min 6.129 nL/min 6.373 nL/min 21.272 nL/min 41.485 nL/min 60.073 nL/min 104.74 nL/min 134.533 nL/min 204.122 nL/ min 367.839 nL/min 415.623 nL/min Maximum 1.589 μL/min 3.180 μL/min 6.358 μL/min 17.630 μL/min 35.249 μL/min 79.640 μL/min 158.984 μL/min 318.126 μL/min 795.51 μL/min 1.588 mL/min 3.181 mL/min 3.308 mL/min 11.044 mL/min 21.539 mL/min 31.19 mL/min 54.383 mL/min 69.852 mL/min 105.985 mL/min 190.992 mL/min 215.803 mL/min 165 SPLG200 SPECIFICTIONS SYRINGE SIZE POWER MOTOR DRIVE CONTROL LINEAR FORCE (MAXIMUM) NUMBER OF MICROSTEPS PER ONE REVOLUTION OF LEAD SCREW STEP RATE (MINIMUM) STEP RATE (MAXIMUM) DRIVE MOTOR PUSHER TRAVEL RATE (MINIMUM) PUSHER TRAVEL RATE (MAXIMUM) FLOW RATE (MINIMUM) FLOW RATE (MAXIMUM) DIMENSIONS WEIGHT CONNECTORS 0.5 μL to 140 mL 100-240 VAC: 50/60 Hz, 50W. 0.5 A fuse Microprocessor with 1/16 microstepping 34 kg (75 lbs) @ 100% force selection 6400 27.5 sec/μstep 26 μsec/μstep 1.8 degree Stepper Motor 0.36 μm/min 190.80 mm/min 5 pL/min (0.5 μL syringe) 215.803 mL/min (140 mL syringe) 8.89 x 25.4 x 27.94 cm (3.5 x 10 x 11 in.) 4.9 kg (10.75 lb) RS-232 - 9 Pin D-Sub Connector, S485 - IEEE-1394 6 pos, USB - Type B, I/O & TTL - 15 Pin D-Sub Connector UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
