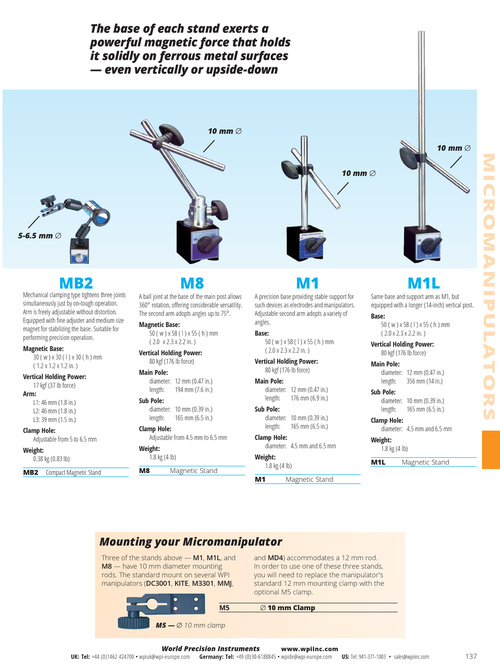

The base of each stand exerts a powerful magnetic force that holds it solidly on ferrous metal surfaces — even vertically or upside-down 10 mm ∅ 10 mm ∅ 10 mm ∅ MICROMANIPULATORS 5-6.5 mm ∅ Mechanical clamping type tightens three joints simultaneously just by on-tough operation . Arm is freely adjustable without distortion . Equipped with fine adjuster and medium size magnet for stabilizing the base . Suitable for performing precision operation . Magnetic Base: 30 ( w ) x 30 ( l ) x 30 ( h ) mm ( 1 .2 x 1 .2 x 1 .2 in . ) Vertical Holding Power: 17 kgf (37 Ib force) Arm: L1: 46 mm (1 .8 in .) L2: 46 mm (1 .8 in .) L3: 39 mm (1 .5 in .) Clamp Hole: Adjustable from 5 to 6 .5 mm Weight: 0 .38 kg (0 .83 Ib) MB2 Compact Magnetic Stand MB2 A ball joint at the base of the main post allows 360° rotation, offering considerable versatility. The second arm adopts angles up to 75° . Magnetic Base: 50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2.0 x 2.3 x 2.2 in. ) Vertical Holding Power: 80 kgf (176 lb force) Main Pole: diameter: 12 mm (0 .47 in .) length: 194 mm (7 .6 in .) Sub Pole: diameter: 10 mm (0 .39 in .) length: 165 mm (6 .5 in .) Clamp Hole: Adjustable from 4 .5 mm to 6 .5 mm Weight: 1 .8 kg (4 lb) M8 Magnetic Stand M8 A precision base providing stable support for such devices as electrodes and manipulators. Adjustable second arm adopts a variety of angles . Base: 50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2 .0 x 2 .3 x 2 .2 in . ) Vertical Holding Power: 80 kgf (176 lb force) Main Pole: diameter: 12 mm (0 .47 in .) length: 176 mm (6 .9 in .) Sub Pole: diameter: 10 mm (0 .39 in .) length: 165 mm (6 .5 in .) Clamp Hole: diameter: 4 .5 mm and 6 .5 mm Weight: 1 .8 kg (4 lb) M1 Magnetic Stand M1 Same base and support arm as M1, but equipped with a longer (14-inch) vertical post. Base: 50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2 .0 x 2 .3 x 2 .2 in . ) Vertical Holding Power: 80 kgf (176 lb force) Main Pole: diameter: 12 mm (0 .47 in .) length: 356 mm (14 in .) Sub Pole: diameter: 10 mm (0 .39 in .) length: 165 mm (6 .5 in .) Clamp Hole: diameter: 4 .5 mm and 6 .5 mm Weight: 1 .8 kg (4 lb) M1L Magnetic Stand M1L Mounting your Micromanipulator Three of the stands above — M1, M1L, and M8 — have 10 mm diameter mounting rods. The standard mount on several WPI manipulators (DC3001, KITE, M3301, MMJ, M5 M5 — ∅ 10 mm clamp World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com and MD4) accommodates a 12 mm rod. In order to use one of these three stands, you will need to replace the manipulator's standard 12 mm mounting clamp with the optional M5 clamp. ∅ 10 mm Clamp UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com 137
