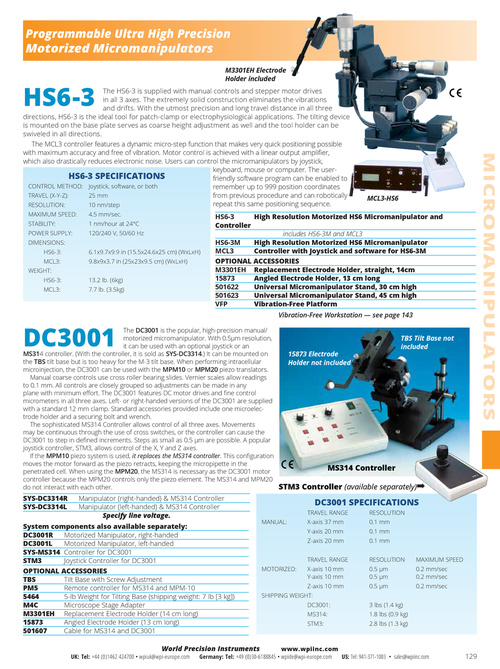

Programmable Ultra High Precision Motorized Micromanipulators HS6-3 M3301EH Electrode Holder included The HS6-3 is supplied with manual controls and stepper motor drives in all 3 axes. The extremely solid construction eliminates the vibrations and drifts. With the utmost precision and long travel distance in all three directions, HS6-3 is the ideal tool for patch-clamp or electrophysiological applications. The tilting device is mounted on the base plate serves as coarse height adjustment as well and the tool holder can be swiveled in all directions. The MCL3 controller features a dynamic micro-step function that makes very quick positioning possible with maximum accuracy and free of vibration. Motor control is achieved with a linear output amplifier, which also drastically reduces electronic noise. Users can control the micromanipulators by joystick, keyboard, mouse or computer. The userHS6-3 SPECIFICATIONS friendly software program can be enabled to CONTROL METHOD: Joystick, software, or both remember up to 999 position coordinates TRAVEL (X-Y-Z): 25 mm from previous procedure and can robotically repeat this same positioning sequence. RESOLUTION: 10 nm/step MAXIMUM SPEED: STABILITY: POWER SUPPLY: DIMENSIONS: HS6-3: MCL3: WEIGHT: HS6-3: MCL3: 13.2 lb. (6kg) 7.7 lb. (3.5kg) 6.1x9.7x9.9 in (15.5x24.6x25 cm) (WxLxH) 9.8x9x3.7 in (25x23x9.5 cm) (WxLxH) 4.5 mm/sec. 1 nm/hour at 24°C 120/240 V, 50/60 Hz MICROMANIPULATORS MCL3-HS6 HS6-3 High Resolution Motorized HS6 Micromanipulator and Controller includes HS6-3M and MCL3 HS6-3M High Resolution Motorized HS6 Micromanipulator MCL3 Controller with Joystick and software for HS6-3M OPTIONAL ACCESSORIES M3301EH Replacement Electrode Holder, straight, 14cm 15873 Angled Electrode Holder, 13 cm long 501622 Universal Micromanipulator Stand, 30 cm high 501623 Universal Micromanipulator Stand, 45 cm high VFP Vibration-Free Platform Vibration-Free Workstation — see page 143 TBS Tilt Base not included DC3001 The DC3001 is the popular, high-precision manual/ motorized micromanipulator. With 0.5µm resolution, it can be used with an optional joystick or an MS314 controller. (With the controller, it is sold as SYS-DC3314.) It can be mounted on the TBS tilt base but is too heavy for the M-3 tilt base. When performing intracellular microinjection, the DC3001 can be used with the MPM10 or MPM20 piezo translators. Manual coarse controls use cross roller bearing slides. Vernier scales allow readings to 0.1 mm. All controls are closely grouped so adjustments can be made in any plane with minimum effort. The DC3001 features DC motor drives and fine control micrometers in all three axes. Left- or right-handed versions of the DC3001 are supplied with a standard 12 mm clamp. Standard accessories provided include one microelectrode holder and a securing bolt and wrench. The sophisticated MS314 Controller allows control of all three axes. Movements may be continuous through the use of cross switches, or the controller can cause the DC3001 to step in defined increments. Steps as small as 0.5 µm are possible. A popular joystick controller, STM3, allows control of the X, Y and Z axes. If the MPM10 piezo system is used, it replaces the MS314 controller. This configuration moves the motor forward as the piezo retracts, keeping the micropipette in the penetrated cell. When using the MPM20, the MS314 is necessary as the DC3001 motor controller because the MPM20 controls only the piezo element. The MS314 and MPM20 do not interact with each other. 15873 Electrode Holder not included MS314 Controller STM3 Controller (available separately)➡ SYS-DC3314R SYS-DC3314L Manipulator (right-handed) & MS314 Controller Manipulator (left-handed) & MS314 Controller Specify line voltage. DC3001 SPECIFICATIONS TRAVEL RANGE MANUAL: X-axis 37 mm Y-axis 20 mm Z-axis 20 mm TRAVEL RANGE MOTORIZED: X-axis 10 mm Y-axis 10 mm Z-axis 10 mm SHIPPING WEIGHT: DC3001: MS314: STM3: 3 lbs (1.4 kg) 1.8 lbs (0.9 kg) 2.8 lbs (1.3 kg) RESOLUTION 0.1 mm 0.1 mm 0.1 mm RESOLUTION 0.5 µm 0.5 µm 0.5 µm MAXIMUM SPEED 0.2 mm/sec 0.2 mm/sec 0.2 mm/sec System components also available separately: DC3001R Motorized Manipulator, right-handed DC3001L Motorized Manipulator, left-handed SYS-MS314 Controller for DC3001 STM3 Joystick Controller for DC3001 OPTIONAL ACCESSORIES TBS Tilt Base with Screw Adjustment PM5 Remote controller for MS314 and MPM-10 5464 5-lb Weight for Tilting Base (shipping weight: 7 lb [3 kg]) M4C Microscope Stage Adapter M3301EH Replacement Electrode Holder (14 cm long) 15873 Angled Electrode Holder (13 cm long) 501607 Cable for MS314 and DC3001 World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 129
