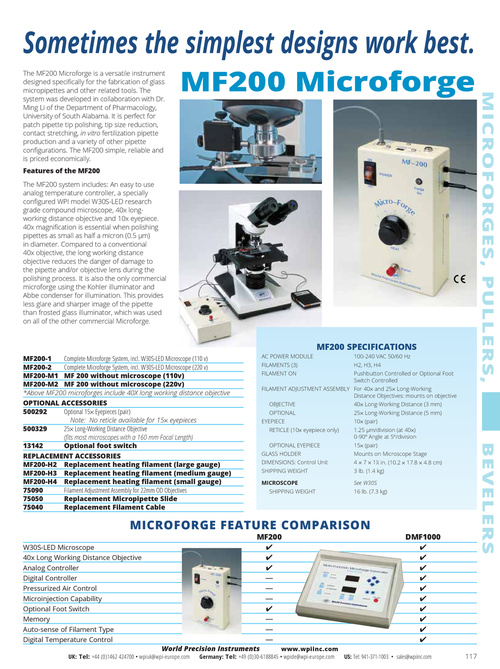

Sometimes the simplest designs work best. The MF200 Microforge is a versatile instrument designed specifically for the fabrication of glass micropipettes and other related tools. The system was developed in collaboration with Dr. Ming Li of the Department of Pharmacology, University of South Alabama. It is perfect for patch pipette tip polishing, tip size reduction, contact stretching, in vitro fertilization pipette production and a variety of other pipette configurations. The MF200 simple, reliable and is priced economically. Features of the MF200 The MF200 system includes: An easy to use analog temperature controller, a specially configured WPI model W30S-LED research grade compound microscope, 40x longworking distance objective and 10x eyepiece. 40x magnification is essential when polishing pipettes as small as half a micron (0.5 µm) in diameter. Compared to a conventional 40x objective, the long working distance objective reduces the danger of damage to the pipette and/or objective lens during the polishing process. It is also the only commercial microforge using the Kohler illuminator and Abbe condenser for illumination. This provides less glare and sharper image of the pipette than frosted glass illuminator, which was used on all of the other commercial Microforge. MF200 Microforge MICROFORGES, PULLERS, MF200 SPECIFICATIONS MF200-1 Complete Microforge System, incl. W30S-LED Microscope (110 v) MF200-2 Complete Microforge System, incl. W30S-LED Microscope (220 v) MF200-M1 MF 200 without microscope (110v) MF200-M2 MF 200 without microscope (220v) *Above MF200 microforges include 40X long working distance objective OPTIONAL ACCESSORIES 500292 Optional 15× Eyepieces (pair) Note: No reticle available for 15× eyepieces 500329 25× Long-Working Distance Objective (fits most microscopes with a 160 mm Focal Length) 13142 Optional foot switch REPLACEMENT ACCESSORIES MF200-H2 Replacement heating filament (large gauge) MF200-H3 Replacement heating filament (medium gauge) MF200-H4 Replacement heating filament (small gauge) 75090 Filament Adjustment Assembly for 22mm OD Objectives 75050 Replacement Micropipette Slide 75040 Replacement Filament Cable AC POWER MODULE FILAMENTS (3) FILAMENT ON 100-240 VAC 50/60 Hz H2, H3, H4 Pushbutton Controlled or Optional Foot Switch Controlled FILAMENT ADJUSTMENT ASSEMBLY For 40× and 25× Long-Working Distance Objectives: mounts on objective OBJECTIVE OPTIONAL EYEPIECE RETICLE (10× eyepiece only) OPTIONAL EYEPIECE GLASS HOLDER DIMENSIONS: Control Unit SHIPPING WEIGHT MICROSCOPE SHIPPING WEIGHT 40× Long-Working Distance (3 mm) 25× Long-Working Distance (5 mm) 10× (pair) 1.25 µm/division (at 40×) 0-90º Angle at 5º/division 15× (pair) Mounts on Microscope Stage 4 × 7 × 17⁄8 in. (10.2 × 17.8 × 4.8 cm) 3 lb. (1.4 kg) See W30S 16 lb. (7.3 kg) BEVELERS MICROFORGE FEATURE COMPARISON W30S-LED Microscope 40x Long Working Distance Objective Analog Controller Digital Controller Pressurized Air Control Microinjection Capability Optional Foot Switch Memory Auto-sense of Filament Type Digital Temperature Control UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments MF200 4 4 4 — — — 4 — — — DMF1000 4 4 4 4 4 4 4 4 4 4 117 www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
