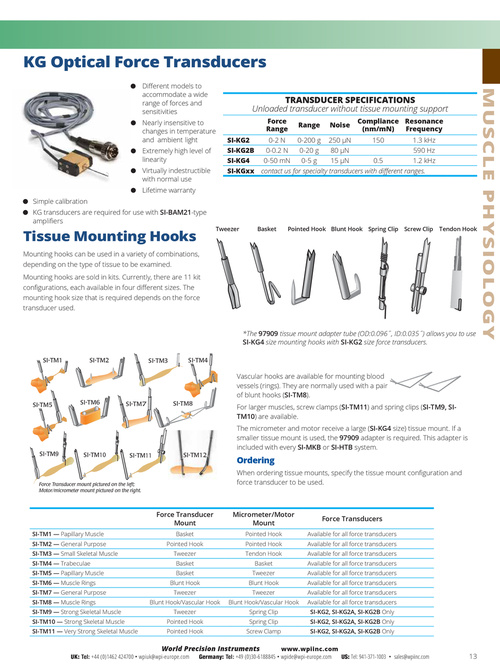

KG Optical Force Transducers ● Different models to accommodate a wide range of forces and sensitivities ● Nearly insensitive to changes in temperature and ambient light ● Extremely high level of linearity ● Virtually indestructible with normal use ● Lifetime warranty ● Simple calibration ● KG transducers are required for use with SI-BAM21-type amplifiers MUSCLE PHYSIOLOGY TRANSDUCER SPECIFICATIONS Unloaded transducer without tissue mounting support Force Range SI-KG2 SI-KG2B SI-KG4 SI-KGxx Range Noise Compliance Resonance (nm/mN) Frequency 0-2 N 0-200 g 250 µN 150 1.3 kHz 0-0.2 N 0-20 g 80 µN 590 Hz 0-50 mN 0-5 g 15 µN 0.5 1.2 kHz contact us for specialty transducers with different ranges. Tissue Mounting Hooks Mounting hooks can be used in a variety of combinations, depending on the type of tissue to be examined. Mounting hooks are sold in kits. Currently, there are 11 kit configurations, each available in four different sizes. The mounting hook size that is required depends on the force transducer used. Tweezer Basket Pointed Hook Blunt Hook Spring Clip Screw Clip Tendon Hook *The 97909 tissue mount adapter tube (OD:0.096˝, ID:0.035˝) allows you to use SI-KG4 size mounting hooks with SI-KG2 size force transducers. SI-TM1 SI-TM2 SI-TM3 SI-TM4 SI-TM5 SI-TM6 SI-TM7 SI-TM8 SI-TM9 SI-TM10 SI-TM11 SI-TM12 Force Transducer mount pictured on the left; Motor/micrometer mount pictured on the right. 1. papillary muscle 2. general purpose Vascular hooks are available for mounting blood 3. small skeletal muscle vessels (rings). They are normally used with a pair 4. trabeculae of blunt hooks (SI-TM8). 5. papillary muscle For larger muscles, screw clamps (SI-TM11) and spring clips (SI-TM9, SI6. muscle rings TM10) are available. 7. small skeletal The micrometer and motor receive a large (SI-KG4 size) tissue mount. If a 8. muscle rings smaller tissue mount is used, the 97909 adapter is required. This adapter is 9. strong skeletal muscle included with every SI-MKB or SI-HTB system. 10. strong skeletal muscle Ordering 11. very strong skeletal specify the tissue mount configuration and When ordering tissue mounts, muscle force transducer to be used. 12. SI-OPT system Micrometer/Motor Mount Pointed Hook Pointed Hook Tendon Hook Basket Tweezer Blunt Hook Tweezer Blunt Hook/Vascular Hook Spring Clip Spring Clip Screw Clamp Force Transducer Mount SI-TM1 — Papillary Muscle SI-TM2 — General Purpose SI-TM3 — Small Skeletal Muscle SI-TM4 — Trabeculae SI-TM5 — Papillary Muscle SI-TM6 — Muscle Rings SI-TM7 — General Purpose SI-TM8 — Muscle Rings SI-TM9 — Strong Skeletal Muscle SI-TM10 — Strong Skeletal Muscle SI-TM11 — Very Strong Skeletal Muscle Basket Pointed Hook Tweezer Basket Basket Blunt Hook Tweezer Blunt Hook/Vascular Hook Tweezer Pointed Hook Pointed Hook Force Transducers Available for all force transducers Available for all force transducers Available for all force transducers Available for all force transducers Available for all force transducers Available for all force transducers Available for all force transducers Available for all force transducers SI-KG2, SI-KG2A, SI-KG2B Only SI-KG2, SI-KG2A, SI-KG2B Only SI-KG2, SI-KG2A, SI-KG2B Only UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 13
