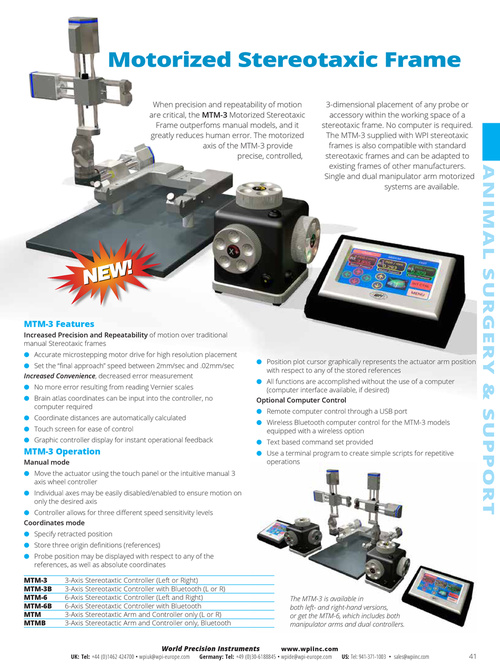

Motorized Stereotaxic Frame When precision and repeatability of motion are critical, the MTM-3 Motorized Stereotaxic Frame outperfoms manual models, and it greatly reduces human error. The motorized axis of the MTM-3 provide precise, controlled, 3-dimensional placement of any probe or accessory within the working space of a stereotaxic frame. No computer is required. The MTM-3 supplied with WPI stereotaxic frames is also compatible with standard stereotaxic frames and can be adapted to existing frames of other manufacturers. Single and dual manipulator arm motorized systems are available. ANIMAL SURGERY & SUPPORT MTM-3 Features Increased Precision and Repeatability of motion over traditional manual Stereotaxic frames ● Accurate microstepping motor drive for high resolution placement ● Set the “final approach” speed between 2mm/sec and .02mm/sec Increased Convenience, decreased error measurement ● No more error resulting from reading Vernier scales ● Brain atlas coordinates can be input into the controller, no computer required ● Coordinate distances are automatically calculated ● Touch screen for ease of control ● Graphic controller display for instant operational feedback ● Position plot cursor graphically represents the actuator arm position with respect to any of the stored references ● All functions are accomplished without the use of a computer (computer interface available, if desired) Optional Computer Control ● Remote computer control through a USB port ● Wireless Bluetooth computer control for the MTM-3 models equipped with a wireless option ● Text based command set provided ● Use a terminal program to create simple scripts for repetitive operations MTM-3 Operation Manual mode ● Move the actuator using the touch panel or the intuitive manual 3 axis wheel controller ● Individual axes may be easily disabled/enabled to ensure motion on only the desired axis ● Controller allows for three different speed sensitivity levels Coordinates mode ● Specify retracted position ● Store three origin definitions (references) ● Probe position may be displayed with respect to any of the references, as well as absolute coordinates MTM-3 MTM-3B MTM-6 MTM-6B MTM MTMB 3-Axis Stereotaxtic Controller (Left or Right) 3-Axis Stereotaxtic Controller with Bluetooth (L or R) 6-Axis Stereotaxtic Controller (Left and Right) 6-Axis Stereotaxtic Controller with Bluetooth 3-Axis Stereotaxtic Arm and Controller only (L or R) 3-Axis Stereotactic Arm and Controller only, Bluetooth The MTM-3 is available in both left- and right-hand versions, or get the MTM-6, which includes both manipulator arms and dual controllers. UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 41
