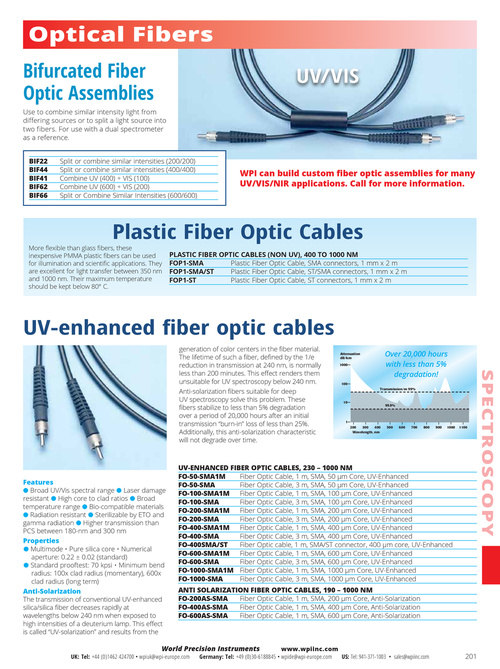

Optical Fibers Bifurcated Fiber Optic Assemblies Use to combine similar intensity light from differing sources or to split a light source into two fibers. For use with a dual spectrometer as a reference. BIF22 BIF44 BIF41 BIF62 BIF66 Split or combine similar intensities (200/200) Split or combine similar intensities (400/400) Combine UV (400) + VIS (100) Combine UV (600) + VIS (200) Split or Combine Similar Intensities (600/600) UV/VIS WPI can build custom fiber optic assemblies for many UV/VIS/NIR applications. Call for more information. More flexible than glass fibers, these inexpensive PMMA plastic fibers can be used for illumination and scientific applications. They are excellent for light transfer between 350 nm and 1000 nm. Their maximum temperature should be kept below 80° C. Plastic Fiber Optic Cables PLASTIC FIBER OPTIC CABLES (NON UV), 400 TO 1000 NM FOP1-SMA Plastic Fiber Optic Cable, SMA connectors, 1 mm x 2 m FOP1-SMA/ST Plastic Fiber Optic Cable, ST/SMA connectors, 1 mm x 2 m FOP1-ST Plastic Fiber Optic Cable, ST connectors, 1 mm x 2 m UV-enhanced fiber optic cables generation of color centers in the fiber material. The lifetime of such a fiber, defined by the 1/e reduction in transmission at 240 nm, is normally less than 200 minutes. This effect renders them unsuitable for UV spectroscopy below 240 nm. Anti-solarization fibers suitable for deep UV spectroscopy solve this problem. These fibers stabilize to less than 5% degradation over a period of 20,000 hours after an initial transmission “burn-in” loss of less than 25%. Additionally, this anti-solarization characteristic will not degrade over time. Attenuation dB/km 1000— Over 20,000 hours with less than 5% degradation! Transmission/m 99% SPEC TROS CO PY 100— 10— 99.9% 1— 200 300 400 Wavelength, nm 500 600 700 800 900 1000 1100 Features ● Broad UV/Vis spectral range ● Laser damage resistant ● High core to clad ratios ● Broad temperature range ● Bio-compatible materials ● Radiation resistant ● Sterilizable by ETO and gamma radiation ● Higher transmission than PCS between 180-nm and 300 nm Properties ● Multimode • Pure silica core • Numerical aperture: 0.22 ± 0.02 (standard) ● Standard prooftest: 70 kpsi • Minimum bend radius: 100x clad radius (momentary), 600x clad radius (long term) Anti-Solarization The transmission of conventional UV-enhanced silica/silica fiber decreases rapidly at wavelengths below 240 nm when exposed to high intensities of a deuterium lamp. This effect is called “UV-solarization” and results from the UV-ENHANCED FIBER OPTIC CABLES, 230 – 1000 NM FO-50-SMA1M Fiber Optic Cable, 1 m, SMA, 50 µm Core, UV-Enhanced FO-50-SMA Fiber Optic Cable, 3 m, SMA, 50 µm Core, UV-Enhanced FO-100-SMA1M Fiber Optic Cable, 1 m, SMA, 100 µm Core, UV-Enhanced FO-100-SMA Fiber Optic Cable, 3 m, SMA, 100 µm Core, UV-Enhanced FO-200-SMA1M Fiber Optic Cable, 1 m, SMA, 200 µm Core, UV-Enhanced FO-200-SMA Fiber Optic Cable, 3 m, SMA, 200 µm Core, UV-Enhanced FO-400-SMA1M Fiber Optic Cable, 1 m, SMA, 400 µm Core, UV-Enhanced FO-400-SMA Fiber Optic Cable, 3 m, SMA, 400 µm Core, UV-Enhanced FO-400SMA/ST Fiber Optic cable, 1 m, SMA/ST connector, 400 µm core, UV-Enhanced FO-600-SMA1M Fiber Optic Cable, 1 m, SMA, 600 µm Core, UV-Enhanced FO-600-SMA Fiber Optic Cable, 3 m, SMA, 600 µm Core, UV-Enhanced FO-1000-SMA1M Fiber Optic Cable, 1 m, SMA, 1000 µm Core, UV-Enhanced FO-1000-SMA Fiber Optic Cable, 3 m, SMA, 1000 µm Core, UV-Enhanced ANTI SOLARIZATION FIBER OPTIC CABLES, 190 – 1000 NM FO-200AS-SMA Fiber Optic Cable, 1 m, SMA, 200 µm Core, Anti-Solarization FO-400AS-SMA Fiber Optic Cable, 1 m, SMA, 400 µm Core, Anti-Solarization FO-600AS-SMA Fiber Optic Cable, 1 m, SMA, 600 µm Core, Anti-Solarization UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 201
