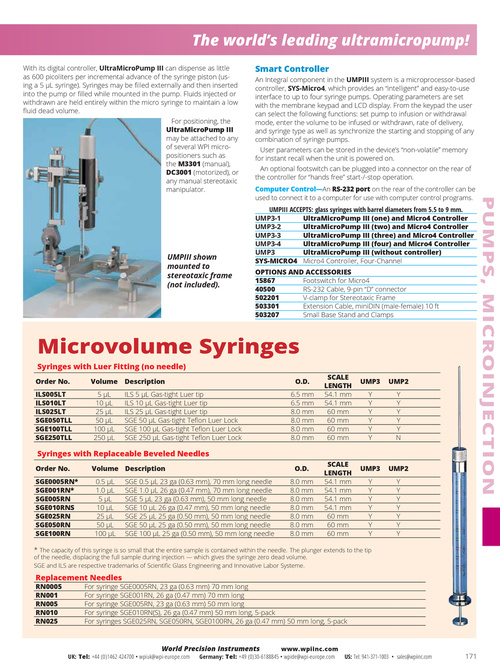

The world’s leading ultramicropump! With its digital controller, UltraMicroPump III can dispense as little as 600 picoliters per incremental advance of the syringe piston (using a 5 µL syringe). Syringes may be filled externally and then inserted into the pump or filled while mounted in the pump. Fluids injected or withdrawn are held entirely within the micro syringe to maintain a low fluid dead volume. For positioning, the UltraMicroPump III may be attached to any of several WPI micropositioners such as the M3301 (manual), DC3001 (motorized), or any manual stereotaxic manipulator. Smart Controller An Integral component in the UMPIII system is a microprocessor-based controller, SYS-Micro4, which provides an “intelligent” and easy-to-use interface to up to four syringe pumps. Operating parameters are set with the membrane keypad and LCD display. From the keypad the user can select the following functions: set pump to infusion or withdrawal mode, enter the volume to be infused or withdrawn, rate of delivery, and syringe type as well as synchronize the starting and stopping of any combination of syringe pumps. User parameters can be stored in the device’s “non-volatile” memory for instant recall when the unit is powered on. An optional footswitch can be plugged into a connector on the rear of the controller for “hands free” start-/-stop operation. Computer Control—An RS-232 port on the rear of the controller can be used to connect it to a computer for use with computer control programs. UMPIII ACCEPTS: glass syringes with barrel diameters from 5.5 to 9 mm. UMP3-1 UltraMicroPump III (one) and Micro4 Controller UMP3-2 UltraMicroPump III (two) and Micro4 Controller UMP3-3 UltraMicroPump III (three) and Micro4 Controller UMP3-4 UltraMicroPump III (four) and Micro4 Controller UMP3 UltraMicroPump III (without controller) SYS-MICRO4 Micro4 Controller, Four-Channel OPTIONS AND ACCESSORIES 15867 Footswitch for Micro4 40500 RS-232 Cable, 9-pin “D” connector 502201 V-clamp for Stereotaxic Frame 503301 Extension Cable, miniDIN (male-female) 10 ft 503207 Small Base Stand and Clamps PUMPS, MICROINJECTION UMPIII shown mounted to stereotaxic frame (not included). Microvolume Syringes Syringes with Luer Fitting (no needle) Order No . ILS005LT ILS010LT ILS025LT SGE050TLL SGE100TLL SGE250TLL Volume 5 µL 10 µL 25 µL 50 µL 100 µL 250 µL Description ILS 5 µL Gas-tight Luer tip ILS 10 µL Gas-tight Luer tip ILS 25 µL Gas-tight Luer tip SGE 50 µL Gas-tight Teflon Luer Lock SGE 100 µL Gas-tight Teflon Luer Lock SGE 250 µL Gas-tight Teflon Luer Lock O.D. 6.5 mm 6.5 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm SCALE LENGTH 54.1 mm 54.1 mm 60 mm 60 mm 60 mm 60 mm UMP3 Y Y Y Y Y Y UMP2 Y Y Y Y Y N Syringes with Replaceable Beveled Needles Order No . SGE0005RN* SGE001RN* SGE005RN SGE010RNS SGE025RN SGE050RN SGE100RN Volume Description 0.5 µL 1.0 µL 5 µL 10 µL 25 µL 50 µL 100 µL SGE 0.5 µL 23 ga (0.63 mm), 70 mm long needle SGE 1.0 µL 26 ga (0.47 mm), 70 mm long needle SGE 5 µL 23 ga (0.63 mm), 50 mm long needle SGE 10 µL 26 ga (0.47 mm), 50 mm long needle SGE 25 µL 25 ga (0.50 mm), 50 mm long needle SGE 50 µL 25 ga (0.50 mm), 50 mm long needle SGE 100 µL 25 ga (0.50 mm), 50 mm long needle O.D. 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm 8.0 mm SCALE LENGTH 54.1 mm 54.1 mm 54.1 mm 54.1 mm 60 mm 60 mm 60 mm UMP3 Y Y Y Y Y Y Y UMP2 Y Y Y Y Y Y Y * The capacity of this syringe is so small that the entire sample is contained within the needle. The plunger extends to the tip of the needle, displacing the full sample during injection — which gives the syringe zero dead volume. SGE and ILS are respective trademarks of Scientific Glass Engineering and Innovative Labor Systeme. Replacement Needles RN0005 RN001 RN005 RN010 RN025 For syringe SGE0005RN, 23 ga (0.63 mm) 70 mm long For syringe SGE001RN, 26 ga (0.47 mm) 70 mm long For syringe SGE005RN, 23 ga (0.63 mm) 50 mm long For syringe SGE010RN(S), 26 ga (0.47 mm) 50 mm long, 5-pack For syringes SGE025RN, SGE050RN, SGE0100RN, 26 ga (0.47 mm) 50 mm long, 5-pack UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 171
