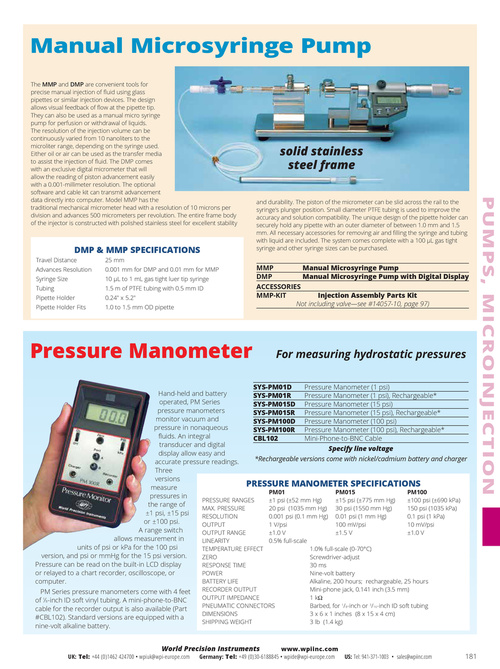

Manual Microsyringe Pump The MMP and DMP are convenient tools for precise manual injection of fluid using glass pipettes or similar injection devices. The design allows visual feedback of flow at the pipette tip. They can also be used as a manual micro syringe pump for perfusion or withdrawal of liquids. The resolution of the injection volume can be continuously varied from 10 nanoliters to the microliter range, depending on the syringe used. Either oil or air can be used as the transfer media to assist the injection of fluid. The DMP comes with an exclusive digital micrometer that will allow the reading of piston advancement easily with a 0.001-millimeter resolution. The optional software and cable kit can transmit advancement data directly into computer. Model MMP has the traditional mechanical micrometer head with a resolution of 10 microns per division and advances 500 micrometers per revolution. The entire frame body of the injector is constructed with polished stainless steel for excellent stability solid stainless steel frame and durability. The piston of the micrometer can be slid across the rail to the syringe's plunger position. Small diameter PTFE tubing is used to improve the accuracy and solution compatibility. The unique design of the pipette holder can securely hold any pipette with an outer diameter of between 1.0 mm and 1.5 mm. All necessary accessories for removing air and filling the syringe and tubing with liquid are included. The system comes complete with a 100 µL gas tight syringe and other syringe sizes can be purchased. PUMPS, MICROINJECTION DMP & MMP SPECIFICATIONS Travel Distance Advances Resolution Syringe Size Tubing Pipette Holder Pipette Holder Fits 25 mm 0.001 mm for DMP and 0.01 mm for MMP 10 µL to 1 mL gas tight luer tip syringe 1.5 m of PTFE tubing with 0.5 mm ID 0.24" x 5.2" 1.0 to 1.5 mm OD pipette MMP Manual Microsyringe Pump DMP Manual Microsyringe Pump with Digital Display ACCESSORIES MMP-KIT Injection Assembly Parts Kit Not including valve—see #14057-10, page 97) Pressure Manometer For measuring hydrostatic pressures SYS-PM01D Pressure Manometer (1 psi) Hand-held and battery SYS-PM01R Pressure Manometer (1 psi), Rechargeable* operated, PM Series SYS-PM015D Pressure Manometer (15 psi) pressure manometers SYS-PM015R Pressure Manometer (15 psi), Rechargeable* monitor vacuum and SYS-PM100D Pressure Manometer (100 psi) pressure in nonaqueous SYS-PM100R Pressure Manometer (100 psi), Rechargeable* fluids. An integral CBL102 Mini-Phone-to-BNC Cable transducer and digital Specify line voltage display allow easy and *Rechargeable versions come with nickel/cadmium battery and charger accurate pressure readings. Three versions PRESSURE MANOMETER SPECIFICATIONS measure PM01 PM015 PM100 pressures in PRESSURE RANGES ±1 psi (±52 mm Hg) ±15 psi (±775 mm Hg) ±100 psi (±690 kPa) the range of MAX. PRESSURE 20 psi (1035 mm Hg) 30 psi (1550 mm Hg) 150 psi (1035 kPa) ±1 psi, ±15 psi RESOLUTION 0.001 psi (0.1 mm Hg) 0.01 psi (1 mm Hg) 0.1 psi (1 kPa) or ±100 psi. OUTPUT 1 V/psi 100 mV/psi 10 mV/psi A range switch OUTPUT RANGE ±1.0 V ±1.5 V ±1.0 V allows measurement in LINEARITY 0.5% full-scale units of psi or kPa for the 100 psi TEMPERATURE EFFECT 1.0% full-scale (0-70°C) version, and psi or mmHg for the 15 psi version. ZERO Screwdriver-adjust Pressure can be read on the built-in LCD display RESPONSE TIME 30 ms or relayed to a chart recorder, oscilloscope, or POWER Nine-volt battery BATTERY LIFE Alkaline, 200 hours; rechargeable, 25 hours computer. RECORDER OUTPUT Mini-phone jack, 0.141 inch (3.5 mm) PM Series pressure manometers come with 4 feet OUTPUT IMPEDANCE 1 kΩ of 1⁄8-inch ID soft vinyl tubing. A mini-phone-to-BNC PNEUMATIC CONNECTORS Barbed, for 1/8-inch or 3/16-inch ID soft tubing cable for the recorder output is also available (Part DIMENSIONS 3 x 6 x 1 inches (8 x 15 x 4 cm) #CBL102). Standard versions are equipped with a SHIPPING WEIGHT 3 lb (1.4 kg) nine-volt alkaline battery. World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 181
