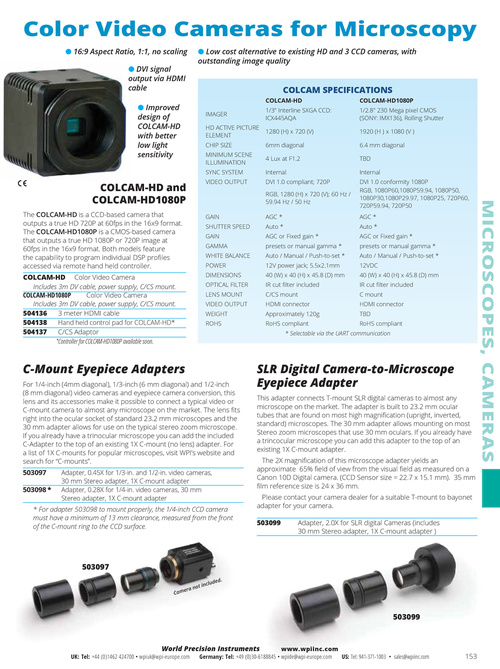

Color Video Cameras for Microscopy ● 16:9 Aspect Ratio, 1:1, no scaling ● DVI signal output via HDMI cable ● Improved design of COLCAM-HD with better low light sensitivity ● Low cost alternative to existing HD and 3 CCD cameras, with outstanding image quality COLCAM SPECIFICATIONS COLCAM-HD IMAGER HD ACTIVE PICTURE ELEMENT CHIP SIZE MINIMUM SCENE ILLUMINATION SYNC SYSTEM VIDEO OUTPUT 1/3" Interline SXGA CCD: ICX445AQA 1280 (H) x 720 (V) 6mm diagonal 4 Lux at F1.2 Internal DVI 1.0 compliant; 720P RGB, 1280 (H) x 720 (V); 60 Hz / 59.94 Hz / 50 Hz GAIN SHUTTER SPEED GAIN GAMMA WHITE BALANCE POWER DIMENSIONS OPTICAL FILTER LENS MOUNT VIDEO OUTPUT WEIGHT ROHS AGC * Auto * AGC or Fixed gain * presets or manual gamma * Auto / Manual / Push-to-set * 12V power jack; 5.5x2.1mm 40 (W) x 40 (H) x 45.8 (D) mm IR cut filter included C/CS mount HDMI connector Approximately 120g RoHS compliant COLCAM-HD1080P 1/2.8" 230 Mega pixel CMOS (SONY: IMX136), Rolling Shutter 1920 (H ) x 1080 (V ) 6.4 mm diagonal TBD Internal DVI 1.0 conformity 1080P RGB, 1080P60,1080P59.94, 1080P50, 1080P30,1080P29.97, 1080P25, 720P60, 720P59.94, 720P50 AGC * Auto * AGC or Fixed gain * presets or manual gamma * Auto / Manual / Push-to-set * 12VDC 40 (W) x 40 (H) x 45.8 (D) mm IR cut filter included C mount HDMI connector TBD RoHS compliant COLCAM-HD and COLCAM-HD1080P The COLCAM-HD is a CCD-based camera that outputs a true HD 720P at 60fps in the 16x9 format. The COLCAM-HD1080P is a CMOS-based camera that outputs a true HD 1080P or 720P image at 60fps in the 16x9 format. Both models feature the capability to program individual DSP profiles accessed via remote hand held controller. COLCAM-HD Color Video Camera Includes 3m DV cable, power supply, C/CS mount. COLCAM-HD1080P Color Video Camera Includes 3m DV cable, power supply, C/CS mount. 504136 3 meter HDMI cable 504138 Hand held control pad for COLCAM-HD* 504137 C/CS Adaptor *Controller for COLCAM-HD1080P available soon. MICROSCOPES, CAMERAS * Selectable via the UART communication C-Mount Eyepiece Adapters For 1/4-inch (4mm diagonal), 1/3-inch (6 mm diagonal) and 1/2-inch (8 mm diagonal) video cameras and eyepiece camera conversion, this lens and its accessories make it possible to connect a typical video or C-mount camera to almost any microscope on the market. The lens fits right into the ocular socket of standard 23.2 mm microscopes and the 30 mm adapter allows for use on the typical stereo zoom microscope. If you already have a trinocular microscope you can add the included C-Adapter to the top of an existing 1X C-mount (no lens) adapter. For a list of 1X C-mounts for popular microscopes, visit WPI’s website and search for “C-mounts”. 503097 503098 * Adapter, 0.45X for 1/3-in. and 1/2-in. video cameras, 30 mm Stereo adapter, 1X C-mount adapter Adapter, 0.28X for 1/4-in. video cameras, 30 mm Stereo adapter, 1X C-mount adapter SLR Digital Camera-to-Microscope Eyepiece Adapter This adapter connects T-mount SLR digital cameras to almost any microscope on the market. The adapter is built to 23.2 mm ocular tubes that are found on most high magnification (upright, inverted, standard) microscopes. The 30 mm adapter allows mounting on most Stereo zoom microscopes that use 30 mm oculars. If you already have a trincocular microscope you can add this adapter to the top of an existing 1X C-mount adapter. The 2X magnification of this microscope adapter yields an approximate 65% field of view from the visual field as measured on a Canon 10D Digital camera. (CCD Sensor size = 22.7 x 15.1 mm). 35 mm film reference size is 24 x 36 mm. Please contact your camera dealer for a suitable T-mount to bayonet adapter for your camera. 503099 Adapter, 2.0X for SLR digital Cameras (includes 30 mm Stereo adapter, 1X C-mount adapter ) * For adapter 503098 to mount properly, the 1/4-inch CCD camera must have a minimum of 13 mm clearance, measured from the front of the C-mount ring to the CCD surface. 503097 e Cam ra n ot in clud ed. 503099 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 153
