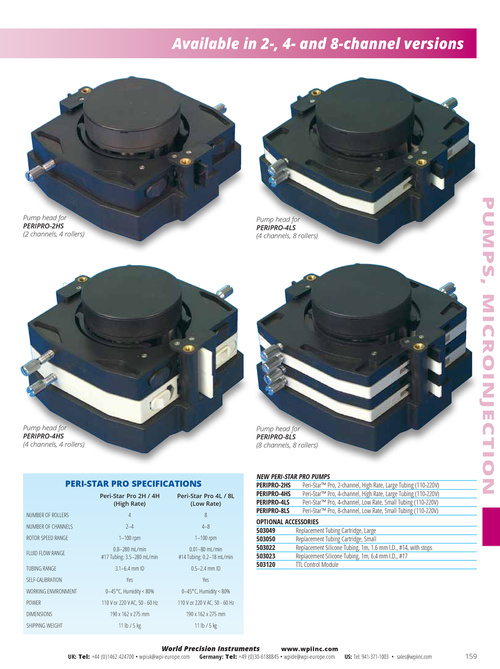

Available in 2-, 4- and 8-channel versions
PUMPS, MICROINJECTION
Pump head for PERIPRO-2HS (2 channels, 4 rollers)
Pump head for PERIPRO-4LS (4 channels, 8 rollers)
Pump head for PERIPRO-4HS (4 channels, 4 rollers)
Pump head for PERIPRO-8LS (8 channels, 8 rollers)
PERI-STAR PRO SPECIFICATIONS
Peri-Star Pro 2H / 4H (High Rate) NUMBER OF ROLLERS NUMBER OF CHANNELS ROTOR SPEED RANGE FLUID FLOW RANGE TUBING RANGE SELF-CALIBRATION WORKING ENVIRONMENT POWER DIMENSIONS SHIPPING WEIGHT 4 2–4 1–100 rpm 0 .8–280 mL/min #17 Tubing: 3 .5–280 mL/min 3 .1–6 .4 mm ID Yes 0–45°C, Humidity < 80% 110 V or 220 V AC, 50 - 60 Hz 190 x 162 x 275 mm 11 lb / 5 kg Peri-Star Pro 4L / 8L (Low Rate) 8 4–8 1–100 rpm 0 .01–80 mL/min #14 Tubing: 0 .2–18 mL/min 0 .5–2 .4 mm ID Yes 0–45°C, Humidity < 80% 110 V or 220 V AC, 50 - 60 Hz 190 x 162 x 275 mm 11 lb / 5 kg
NEW PERI-STAR PRO PUMPS PERIPRO-2HS Peri-Star™ Pro, 2-channel, High Rate, Large Tubing (110-220V) PERIPRO-4HS Peri-Star™ Pro, 4-channel, High Rate, Large Tubing (110-220V) PERIPRO-4LS Peri-Star™ Pro, 4-channel, Low Rate, Small Tubing (110-220V) PERIPRO-8LS Peri-Star™ Pro, 8-channel, Low Rate, Small Tubing (110-220V)
OPTIONAL ACCESSORIES 503049 Replacement Tubing Cartridge, Large 503050 Replacement Tubing Cartridge, Small 503022 Replacement Silicone Tubing, 1m, 1 .6 mm I .D ., #14, with stops 503023 Replacement Silicone Tubing, 1m, 6 .4 mm I .D ., #17 503120 TTL Control Module
UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com
World Precision Instruments
www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com
US: Tel: 941-371-1003 • sales@wpiinc.com
159
|
