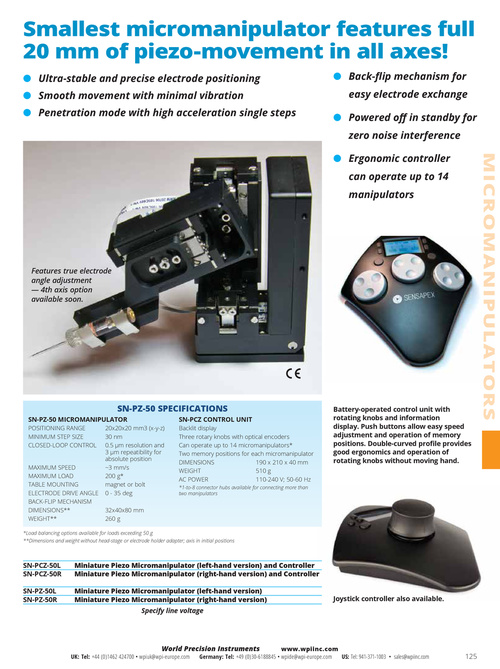

Smallest micromanipulator features full 20 mm of piezo-movement in all axes! ● Ultra-stable and precise electrode positioning ● Smooth movement with minimal vibration ● Penetration mode with high acceleration single steps ● Back-flip mechanism for easy electrode exchange ● Powered off in standby for zero noise interference ● Ergonomic controller can operate up to 14 manipulators MICROMANIPULATORS Features true electrode angle adjustment — 4th axis option available soon. SN-PZ-50 SPECIFICATIONS SN-PZ-50 MICROMANIPULATOR POSITIONING RANGE MINIMUM STEP SIZE CLOSED-LOOP CONTROL MAXIMUM SPEED MAXIMUM LOAD TABLE MOUNTING ELECTRODE DRIVE ANGLE BACK-FLIP MECHANISM DIMENSIONS** WEIGHT** 20x20x20 mm3 (x-y-z) 30 nm 0.5 μm resolution and 3 μm repeatibility for absolute position ~3 mm/s 200 g* magnet or bolt 0 - 35 deg 32x40x80 mm 260 g SN-PCZ CONTROL UNIT Backlit display Three rotary knobs with optical encoders Can operate up to 14 micromanipulators* Two memory positions for each micromanipulator DIMENSIONS 190 x 210 x 40 mm WEIGHT 510 g AC POWER 110-240 V; 50-60 Hz *1-to-8 connector hubs available for connecting more than two manipulators Battery-operated control unit with rotating knobs and information display. Push buttons allow easy speed adjustment and operation of memory positions. Double-curved profile provides good ergonomics and operation of rotating knobs without moving hand. *Load balancing options available for loads exceeding 50 g **Dimensions and weight without head-stage or electrode holder adapter; axis in initial positions SN-PCZ-50L SN-PCZ-50R SN-PZ-50L SN-PZ-50R Miniature Piezo Micromanipulator (left-hand version) and Controller Miniature Piezo Micromanipulator (right-hand version) and Controller Miniature Piezo Micromanipulator (left-hand version) Miniature Piezo Micromanipulator (right-hand version) Specify line voltage Joystick controller also available. UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 125
