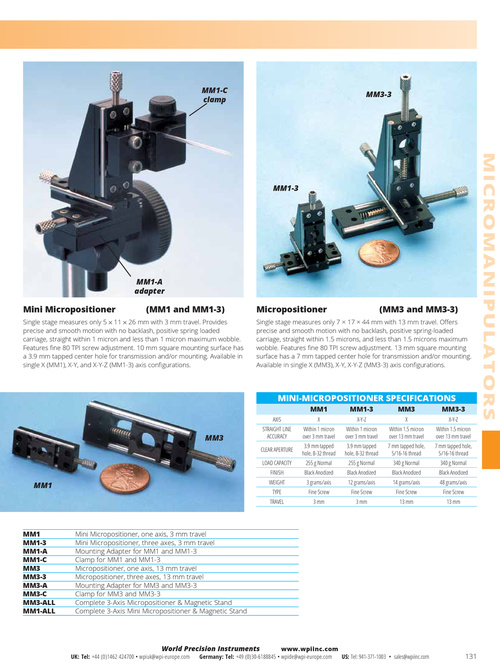

MM1-C clamp MM3-3 MICROMANIPULATORS MM1-3 MM1-A adapter Mini Micropositioner (MM1 and MM1-3) Micropositioner (MM3 and MM3-3) Single stage measures only 5 × 11 × 26 mm with 3 mm travel. Provides precise and smooth motion with no backlash, positive spring loaded carriage, straight within 1 micron and less than 1 micron maximum wobble. Features fine 80 TPI screw adjustment. 10 mm square mounting surface has a 3.9 mm tapped center hole for transmission and/or mounting. Available in single X (MM1), X-Y, and X-Y-Z (MM1-3) axis configurations. Single stage measures only 7 × 17 × 44 mm with 13 mm travel. Offers precise and smooth motion with no backlash, positive spring-loaded carriage, straight within 1.5 microns, and less than 1.5 microns maximum wobble. Features fine 80 TPI screw adjustment. 13 mm square mounting surface has a 7 mm tapped center hole for transmission and/or mounting. Available in single X (MM3), X-Y, X-Y-Z (MM3-3) axis configurations. MINI-MICROPOSITIONER SPECIFICATIONS MM1 AXIS X Within 1 micron over 3 mm travel 3 .9 mm tapped hole, 8-32 thread 255 g Normal Black Anodized 3 grams/axis Fine Screw 3 mm STRAIGHT LINE ACCURACY CLEAR APERTURE LOAD CAPACITY FINISH MM1-3 X-Y-Z Within 1 micron over 3 mm travel 3 .9 mm tapped hole, 8-32 thread 255 g Normal Black Anodized 12 grams/axis Fine Screw 3 mm MM3 X Within 1 .5 micron over 13 mm travel 7 mm tapped hole, 5/16-16 thread 340 g Normal Black Anodized 14 grams/axis Fine Screw 13 mm MM3-3 X-Y-Z Within 1 .5 micron over 13 mm travel 7 mm tapped hole, 5/16-16 thread 340 g Normal Black Anodized 48 grams/axis Fine Screw 13 mm MM3 MM1 WEIGHT TYPE TRAVEL MM1 MM1-3 MM1-A MM1-C MM3 MM3-3 MM3-A MM3-C MM3-ALL MM1-ALL Mini Micropositioner, one axis, 3 mm travel Mini Micropositioner, three axes, 3 mm travel Mounting Adapter for MM1 and MM1-3 Clamp for MM1 and MM1-3 Micropositioner, one axis, 13 mm travel Micropositioner, three axes, 13 mm travel Mounting Adapter for MM3 and MM3-3 Clamp for MM3 and MM3-3 Complete 3-Axis Micropositioner & Magnetic Stand Complete 3-Axis Mini Micropositioner & Magnetic Stand UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 131
