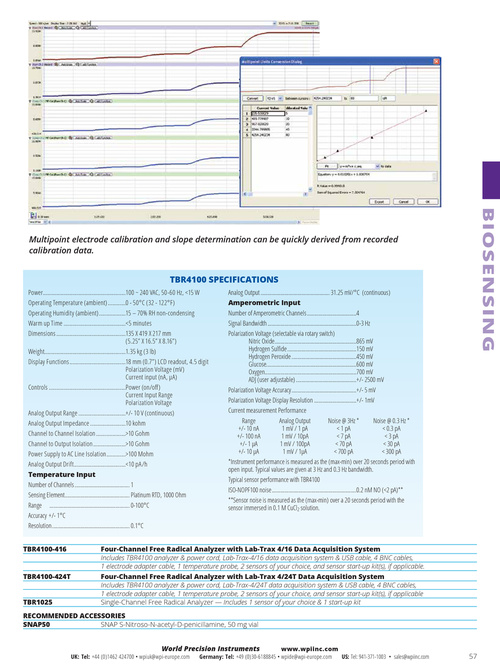

BIOSENSING Multipoint electrode calibration and slope determination can be quickly derived from recorded calibration data. TBR4100 SPECIFICATIONS Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 ~ 240 VAC, 50-60 Hz, <15 W Operating Temperature (ambient) . . . . . . . . . . . .0 - 50°C (32 - 122°F) Operating Humidity (ambient) . . . . . . . . . . . . . . . . . .15 – 70% RH non-condensing Warm up Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<5 minutes Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135 X 419 X 217 mm (5 .25” X 16 .5” X 8 .16”) Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 .35 kg (3 lb) Display Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 mm (0 .7”) LCD readout, 4 .5 digit Polarization Voltage (mV) Current input (nA, μA) Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Power (on/off) Current Input Range Polarization Voltage Analog Output Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+/- 10 V (continuous) Analog Output Impedance . . . . . . . . . . . . . . . . . . . . . . . .10 kohm Channel to Channel Isolation . . . . . . . . . . . . . . . . . . . .>10 Gohm Channel to Output Isolation . . . . . . . . . . . . . . . . . . . . . .>10 Gohm Power Supply to AC Line Isolation . . . . . . . . . . . . .>100 Mohm Analog Output Drift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<10 pA/h Temperature Input Number of Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Sensing Element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Platinum RTD, 1000 Ohm Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-100°C Accuracy +/- 1°C Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 .1°C TBR4100-416 Analog Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 .25 mV/°C (continuous) Amperometric Input Number of Amperometric Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Signal Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0-3 Hz Polarization Voltage (selectable via rotary switch) Nitric Oxide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .865 mV Hydrogen Sulfide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150 mV Hydrogen Peroxide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .450 mV Glucose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600 mV Oxygen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .700 mV ADJ (user adjustable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+/- 2500 mV Polarization Voltage Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+/- 5 mV Polarization Voltage Display Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+/- 1mV Current measurement Performance Range Analog Output Noise @ 3Hz * Noise @ 0 .3 Hz * +/- 10 nA 1 mV / 1 pA < 1 pA < 0 .3 pA +/- 100 nA 1 mV / 10pA < 7 pA < 3 pA +/- 1 μA 1 mV / 100pA < 70 pA < 30 pA +/- 10 μA 1 mV / 1μA < 700 pA < 300 pA *Instrument performance is measured as the (max-min) over 20 seconds period with open input. Typical values are given at 3 Hz and 0.3 Hz bandwidth. Typical sensor performance with TBR4100 ISO-NOPF100 noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 .2 nM NO (<2 pA)** **Sensor noise is measured as the (max-min) over a 20 seconds period with the sensor immersed in 0 .1 M CuCl2 solution . TBR4100-424T TBR1025 Four-Channel Free Radical Analyzer with Lab-Trax 4/16 Data Acquisition System Includes TBR4100 analyzer & power cord, Lab-Trax-4/16 data acquisition system & USB cable, 4 BNC cables, 1 electrode adapter cable, 1 temperature probe, 2 sensors of your choice, and sensor start-up kit(s), if applicable. Four-Channel Free Radical Analyzer with Lab-Trax 4/24T Data Acquisition System Includes TBR4100 analyzer & power cord, Lab-Trax-4/24T data acquisition system & USB cable, 4 BNC cables, 1 electrode adapter cable, 1 temperature probe, 2 sensors of your choice, and sensor start-up kit(s), if applicable Single-Channel Free Radical Analyzer — Includes 1 sensor of your choice & 1 start-up kit RECOMMENDED ACCESSORIES SNAP50 SNAP S-Nitroso-N-acetyl-D-penicillamine, 50 mg vial World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com 57
