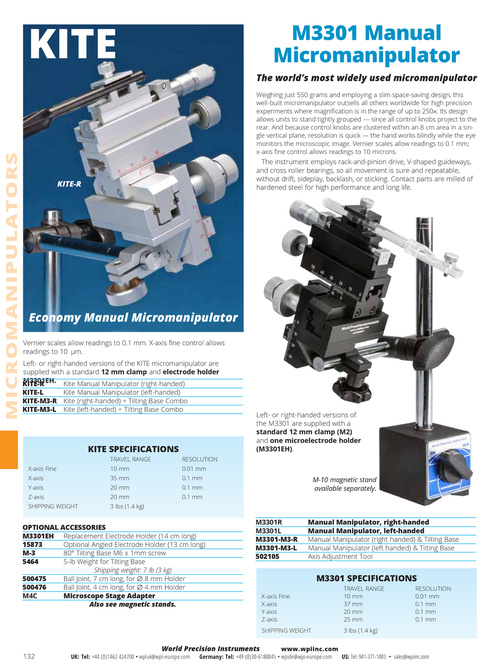

KITE M3301 Manual Micromanipulator The world’s most widely used micromanipulator Weighing just 550 grams and employing a slim space-saving design, this well-built micromanipulator outsells all others worldwide for high precision experiments where magnification is in the range of up to 250×. Its design allows units to stand tightly grouped — since all control knobs project to the rear. And because control knobs are clustered within an 8 cm area in a single vertical plane, resolution is quick — the hand works blindly while the eye monitors the microscopic image. Vernier scales allow readings to 0.1 mm; x-axis fine control allows readings to 10 microns. MICROMANIPULATORS KITE-R The instrument employs rack-and-pinion drive, V-shaped guideways, and cross roller bearings, so all movement is sure and repeatable, without drift, sideplay, backlash, or sticking. Contact parts are milled of hardened steel for high performance and long life. Economy Manual Micromanipulator Vernier scales allow readings to 0.1 mm. X-axis fine control allows readings to 10 µm. Left- or right-handed versions of the KITE micromanipulator are supplied with a standard 12 mm clamp and electrode holder M3301EH. Kite Manual Manipulator (right-handed) KITE-R KITE-L Kite Manual Manipulator (left-handed) KITE-M3-R Kite (right-handed) + Tilting Base Combo KITE-M3-L Kite (left-handed) + Tilting Base Combo KITE SPECIFICATIONS TRAVEL RANGE X-axis Fine X-axis Y-axis Z-axis SHIPPING WEIGHT 10 mm 35 mm 20 mm 20 mm 3 lbs (1.4 kg) RESOLUTION 0.01 mm 0.1 mm 0.1 mm 0.1 mm Left- or right-handed versions of the M3301 are supplied with a standard 12 mm clamp (M2) and one microelectrode holder (M3301EH). M-10 magnetic stand available separately. OPTIONAL ACCESSORIES M3301EH Replacement Electrode Holder (14 cm long) 15873 Optional Angled Electrode Holder (13 cm long) M-3 80° Tilting Base M6 x 1mm screw 5464 5-lb Weight for Tilting Base Shipping weight: 7 lb (3 kg) 500475 Ball Joint, 7 cm long, for ∅ 8 mm Holder 500476 Ball Joint, 4 cm long, for ∅ 4 mm Holder M4C Microscope Stage Adapter Also see magnetic stands. M3301R M3301L M3301-M3-R M3301-M3-L 502105 Manual Manipulator, right-handed Manual Manipulator, left-handed Manual Manipulator (right handed) & Tilting Base Manual Manipulator (left handed) & Tilting Base Axis Adjustment Tool M3301 SPECIFICATIONS X-axis Fine X-axis Y-axis Z-axis SHIPPING WEIGHT TRAVEL RANGE 10 mm 37 mm 20 mm 25 mm 3 lbs (1.4 kg) RESOLUTION 0.01 mm 0.1 mm 0.1 mm 0.1 mm 132 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
