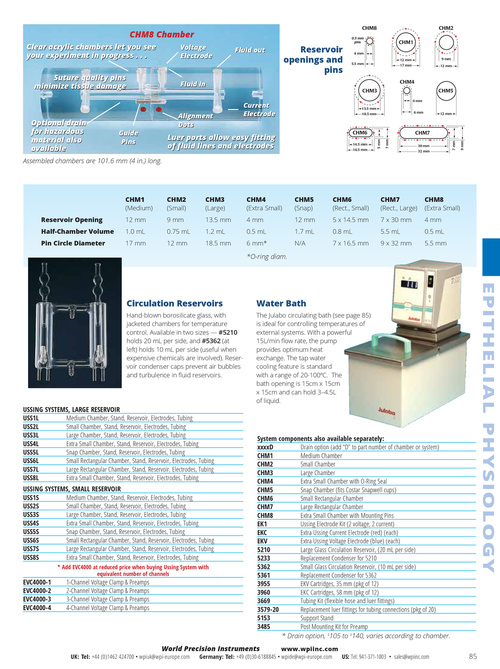

CHM8 Chamber Clear acrylic chambers let you see your experiment in progress . . . Suture quality pins minimize tissue damage Voltage Electrode Fluid out CHM8 CHM2 CHM1 12 mm 17 mm 9 mm 12 mm Reservoir openings and pins 0.5 mm pins 4 mm 5.5 mm Fluid in Current Electrode CHM4 CHM3 4 mm 13.5 mm 18.5 mm 6 mm CHM5 Optional drain for hazardous material also available 5 mm 7 mm 14.5 mm 16.5 mm 30 mm 32 mm Assembled chambers are 101.6 mm (4 in.) long. CHM1 (Medium) Reservoir Opening Half-Chamber Volume Pin Circle Diameter 12 mm 1.0 mL 17 mm CHM2 (Small) 9 mm 0.75 mL 12 mm CHM3 (Large) 13.5 mm 1.2 mL 18.5 mm CHM4 (Extra Small) 4 mm 0.5 mL 6 mm* CHM5 (Snap) 12 mm 1.7 mL N/A CHM6 (Rect., Small) 5 x 14.5 mm 0.8 mL 7 x 16.5 mm CHM7 (Rect., Large) 7 x 30 mm 5.5 mL 9 x 32 mm CHM8 (Extra Small) 4 mm 0.5 mL 5.5 mm *O-ring diam. 7 mm 9 mm Guide Pins Alignment Dots 12 mm Luer ports allow easy fitting of fluid lines and electrodes CHM6 CHM7 EPITHELIAL PHYSIOLOGY Circulation Reservoirs Hand-blown borosilicate glass, with jacketed chambers for temperature control. Available in two sizes — #5210 holds 20 mL per side, and #5362 (at left) holds 10 mL per side (useful when expensive chemicals are involved). Reservoir condenser caps prevent air bubbles and turbulence in fluid reservoirs. Water Bath The Julabo circulating bath (see page 85) is ideal for controlling temperatures of external systems. With a powerful 15L/min flow rate, the pump provides optimum heat exchange. The tap water cooling feature is standard with a range of 20-100ºC. The bath opening is 15cm x 15cm x 15cm and can hold 3–4.5L of liquid. USSING SYSTEMS, LARGE RESERVOIR USS1L Medium Chamber, Stand, Reservoir, Electrodes, Tubing USS2L Small Chamber, Stand, Reservoir, Electrodes, Tubing USS3L Large Chamber, Stand, Reservoir, Electrodes, Tubing USS4L Extra Small Chamber, Stand, Reservoir, Electrodes, Tubing USS5L Snap Chamber, Stand, Reservoir, Electrodes, Tubing USS6L Small Rectangular Chamber, Stand, Reservoir, Electrodes, Tubing USS7L Large Rectangular Chamber, Stand, Reservoir, Electrodes, Tubing USS8L Extra Small Chamber, Stand, Reservoir, Electrodes, Tubing USSING SYSTEMS, SMALL RESERVOIR USS1S Medium Chamber, Stand, Reservoir, Electrodes, Tubing USS2S Small Chamber, Stand, Reservoir, Electrodes, Tubing USS3S Large Chamber, Stand, Reservoir, Electrodes, Tubing USS4S Extra Small Chamber, Stand, Reservoir, Electrodes, Tubing USS5S Snap Chamber, Stand, Reservoir, Electrodes, Tubing USS6S Small Rectangular Chamber, Stand, Reservoir, Electrodes, Tubing USS7S Large Rectangular Chamber, Stand, Reservoir, Electrodes, Tubing USS8S Extra Small Chamber, Stand, Reservoir, Electrodes, Tubing EVC4000-1 EVC4000-2 EVC4000-3 EVC4000-4 * Add EVC4000 at reduced price when buying Ussing System with equivalent number of channels 1-Channel Voltage Clamp & Preamps 2-Channel Voltage Clamp & Preamps 3-Channel Voltage Clamp & Preamps 4-Channel Voltage Clamp & Preamps System components also available separately: xxxxD Drain option (add “D” to part number of chamber or system) CHM1 Medium Chamber CHM2 Small Chamber CHM3 Large Chamber CHM4 Extra Small Chamber with O-Ring Seal CHM5 Snap Chamber (fits Costar Snapwell cups) CHM6 Small Rectangular Chamber CHM7 Large Rectangular Chamber CHM8 Extra Small Chamber with Mounting Pins EK1 Ussing Electrode Kit (2 voltage, 2 current) EKC Extra Ussing Current Electrode (red) (each) EKV Extra Ussing Voltage Electrode (blue) (each) 5210 Large Glass Circulation Reservoir, (20 mL per side) 5233 Replacement Condenser for 5210 5362 Small Glass Circulation Reservoir, (10 mL per side) 5361 Replacement Condenser for 5362 3955 EKV Cartridges, 35 mm (pkg of 12) 3960 EKC Cartridges, 58 mm (pkg of 12) 3669 Tubing Kit (flexible hose and luer fittings) 3579-20 Replacement luer fittings for tubing connections (pkg of 20) 5153 Support Stand 3485 Post Mounting Kit for Preamp * Drain option, $105 to $140, varies according to chamber. 85 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
