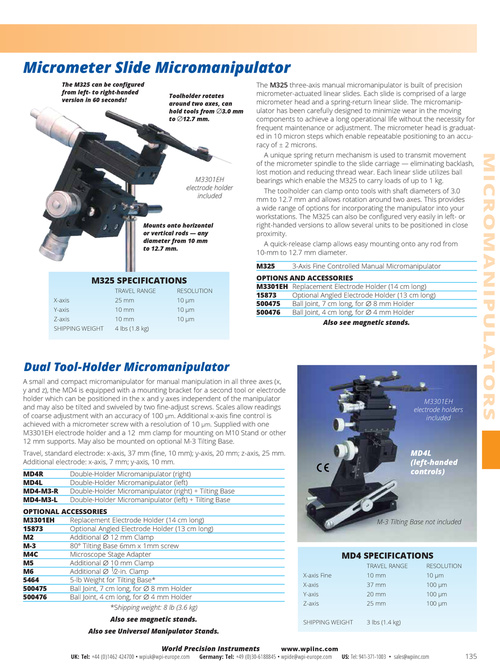

Micrometer Slide Micromanipulator The M325 can be configured from left- to right-handed version in 60 seconds! Toolholder rotates around two axes, can hold tools from ∅3.0 mm to ∅12.7 mm. M3301EH electrode holder included Mounts onto horizontal or vertical rods — any diameter from 10 mm to 12.7 mm. The M325 three-axis manual micromanipulator is built of precision micrometer-actuated linear slides. Each slide is comprised of a large micrometer head and a spring-return linear slide. The micromanipulator has been carefully designed to minimize wear in the moving components to achieve a long operational life without the necessity for frequent maintenance or adjustment. The micrometer head is graduated in 10 micron steps which enable repeatable positioning to an accuracy of ± 2 microns. A unique spring return mechanism is used to transmit movement of the micrometer spindle to the slide carriage — eliminating backlash, lost motion and reducing thread wear. Each linear slide utilizes ball bearings which enable the M325 to carry loads of up to 1 kg. The toolholder can clamp onto tools with shaft diameters of 3.0 mm to 12.7 mm and allows rotation around two axes. This provides a wide range of options for incorporating the manipulator into your workstations. The M325 can also be configured very easily in left- or right-handed versions to allow several units to be positioned in close proximity. A quick-release clamp allows easy mounting onto any rod from 10-mm to 12.7 mm diameter. M325 3-Axis Fine Controlled Manual Micromanipulator OPTIONS AND ACCESSORIES M3301EH Replacement Electrode Holder (14 cm long) 15873 Optional Angled Electrode Holder (13 cm long) 500475 Ball Joint, 7 cm long, for ∅ 8 mm Holder 500476 Ball Joint, 4 cm long, for ∅ 4 mm Holder Also see magnetic stands. MICROMANIPULATORS M325 SPECIFICATIONS TRAVEL RANGE X-axis Y-axis Z-axis SHIPPING WEIGHT 25 mm 10 mm 10 mm 4 lbs (1.8 kg) RESOLUTION 10 µm 10 µm 10 µm Dual Tool-Holder Micromanipulator A small and compact micromanipulator for manual manipulation in all three axes (x, y and z), the MD4 is equipped with a mounting bracket for a second tool or electrode holder which can be positioned in the x and y axes independent of the manipulator and may also be tilted and swiveled by two fine-adjust screws. Scales allow readings of coarse adjustment with an accuracy of 100 µm. Additional x-axis fine control is achieved with a micrometer screw with a resolution of 10 µm. Supplied with one M3301EH electrode holder and a 12 mm clamp for mounting on M10 Stand or other 12 mm supports. May also be mounted on optional M-3 Tilting Base. Travel, standard electrode: x-axis, 37 mm (fine, 10 mm); y-axis, 20 mm; z-axis, 25 mm. Additional electrode: x-axis, 7 mm; y-axis, 10 mm. MD4R MD4L MD4-M3-R MD4-M3-L Double-Holder Micromanipulator (right) Double-Holder Micromanipulator (left) Double-Holder Micromanipulator (right) + Tilting Base Double-Holder Micromanipulator (left) + Tilting Base M3301EH electrode holders included MD4L (left-handed controls) OPTIONAL ACCESSORIES M3301EH Replacement Electrode Holder (14 cm long) 15873 Optional Angled Electrode Holder (13 cm long) M2 Additional ∅ 12 mm Clamp M-3 80° Tilting Base 6mm x 1mm screw M4C Microscope Stage Adapter M5 Additional ∅ 10 mm Clamp M6 Additional ∅ 1⁄2-in. Clamp 5464 5-lb Weight for Tilting Base* 500475 Ball Joint, 7 cm long, for ∅ 8 mm Holder 500476 Ball Joint, 4 cm long, for ∅ 4 mm Holder *Shipping weight: 8 lb (3.6 kg) Also see magnetic stands. Also see Universal Manipulator Stands. UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com M-3 Tilting Base not included MD4 SPECIFICATIONS TRAVEL RANGE X-axis Fine X-axis Y-axis Z-axis SHIPPING WEIGHT 10 mm 37 mm 20 mm 25 mm 3 lbs (1.4 kg) RESOLUTION 10 µm 100 µm 100 µm 100 µm World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 135
