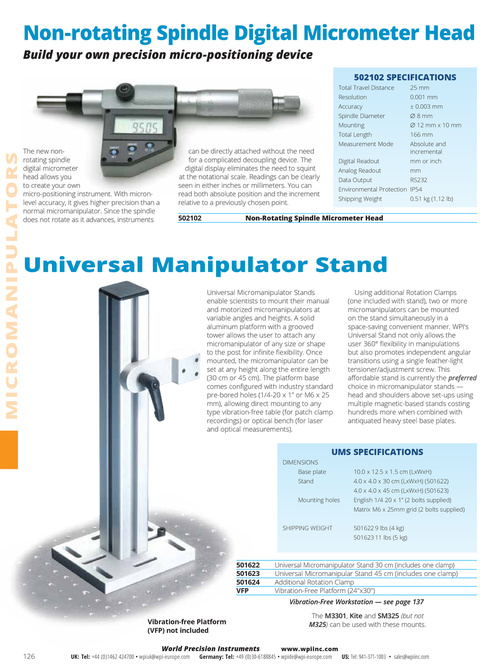

Non-rotating Spindle Digital Micrometer Head Build your own precision micro-positioning device 502102 SPECIFICATIONS Total Travel Distance Resolution Accuracy Spindle Diameter Mounting Total Length Measurement Mode Digital Readout Analog Readout Data Output Shipping Weight 25 mm 0.001 mm ± 0.003 mm ∅ 8 mm ∅ 12 mm x 10 mm 166 mm Absolute and incremental mm or inch mm RS232 0.51 kg (1.12 lb) MICROMANIPULATORS The new nonrotating spindle digital micrometer head allows you to create your own micro-positioning instrument. With micronlevel accuracy, it gives higher precision than a normal micromanipulator. Since the spindle does not rotate as it advances, instruments can be directly attached without the need for a complicated decoupling device. The digital display eliminates the need to squint at the notational scale. Readings can be clearly seen in either inches or millimeters. You can read both absolute position and the increment relative to a previously chosen point. 502102 Environmental Protection IP54 Non-Rotating Spindle Micrometer Head Universal Manipulator Stand Universal Micromanipulator Stands enable scientists to mount their manual and motorized micromanipulators at variable angles and heights. A solid aluminum platform with a grooved tower allows the user to attach any micromanipulator of any size or shape to the post for infinite flexibility. Once mounted, the micromanipulator can be set at any height along the entire length (30 cm or 45 cm). The platform base comes configured with industry standard pre-bored holes (1/4-20 x 1” or M6 x 25 mm), allowing direct mounting to any type vibration-free table (for patch clamp recordings) or optical bench (for laser and optical measurements). Using additional Rotation Clamps (one included with stand), two or more micromanipulators can be mounted on the stand simultaneously in a space-saving convenient manner. WPI’s Universal Stand not only allows the user 360° flexibility in manipulations but also promotes independent angular transitions using a single feather-light tensioner/adjustment screw. This affordable stand is currently the preferred choice in micromanipulator stands — head and shoulders above set-ups using multiple magnetic-based stands costing hundreds more when combined with antiquated heavy steel base plates. UMS SPECIFICATIONS DIMENSIONS Base plate Stand Mounting holes 10.0 x 12.5 x 1.5 cm (LxWxH) 4.0 x 4.0 x 30 cm (LxWxH) (501622) 4.0 x 4.0 x 45 cm (LxWxH) (501623) English 1/4 20 x 1” (2 bolts supplied) Matrix M6 x 25mm grid (2 bolts supplied) SHIPPING WEIGHT 501622 9 lbs (4 kg) 501623 11 lbs (5 kg) 501622 501623 501624 VFP Universal Micromanipulator Stand 30 cm (includes one clamp) Universal Micromanipular Stand 45 cm (includes one clamp) Additional Rotation Clamp Vibration-Free Platform (24"x30") Vibration-Free Workstation — see page 137 The M3301, Kite and SM325 (but not M325) can be used with these mounts. Vibration-free Platform (VFP) not included 126 World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
