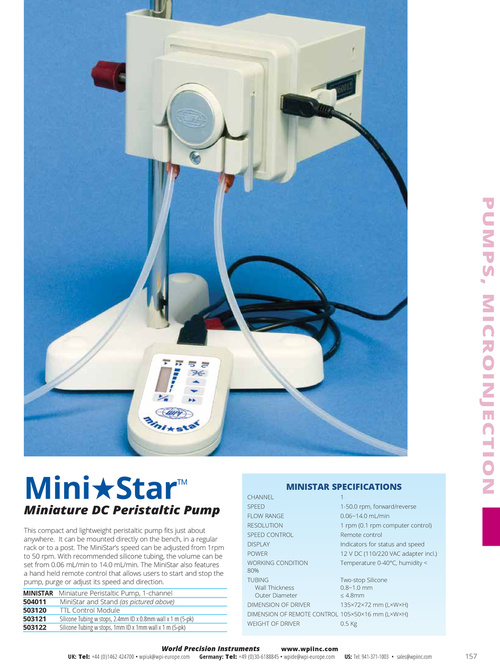

PUMPS, MICROINJECTION Mini★Star™ MINISTAR SPECIFICATIONS CHANNEL SPEED FLOW RANGE RESOLUTION SPEED CONTROL DISPLAY POWER WORKING CONDITION 80% TUBING Wall Thickness Outer Diameter DIMENSION OF DRIVER WEIGHT OF DRIVER 1 1-50.0 rpm, forward/reverse 0.06~14.0 mL/min 1 rpm (0.1 rpm computer control) Remote control Indicators for status and speed 12 V DC (110/220 VAC adapter incl.) Temperature 0-40°C, humidity < Two-stop Silicone 0.8~1.0 mm ≤ 4.8mm 135×72×72 mm (L×W×H) 0.5 Kg Miniature DC Peristaltic Pump This compact and lightweight peristaltic pump fits just about anywhere. It can be mounted directly on the bench, in a regular rack or to a post. The MiniStar’s speed can be adjusted from 1rpm to 50 rpm. With recommended silicone tubing, the volume can be set from 0.06 mL/min to 14.0 mL/min. The MiniStar also features a hand held remote control that allows users to start and stop the pump, purge or adjust its speed and direction. MINISTAR 504011 503120 503121 503122 Miniature Peristaltic Pump, 1-channel MiniStar and Stand (as pictured above) TTL Control Module Silicone Tubing w stops, 2 .4mm ID x 0 .8mm wall x 1 m (5-pk) Silicone Tubing w stops, 1mm ID x 1mm wall x 1 m (5-pk) DIMENSION OF REMOTE CONTROL 105×50×16 mm (L×W×H) UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 157
