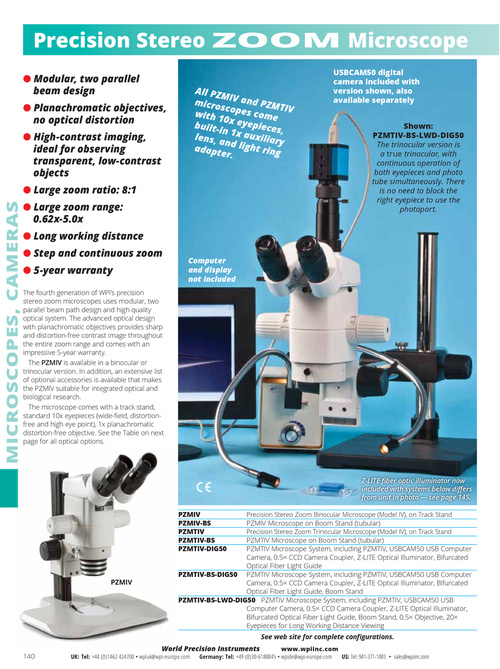

Precision Stereo ZOOM Microscope ● Modular, two parallel beam design ● Planachromatic objectives, no optical distortion ● High-contrast imaging, ideal for observing transparent, low-contrast objects ● Large zoom ratio: 8:1 All PZ MI micro V and PZM TIV sco with 1 pes come 0x eye pieces builtin , lens, a 1x auxiliar y nd lig ht rin adapt g er. USBCAM50 digital camera included with version shown, also available separately Shown: PZMTIV-BS-LWD-DIG50 The trinocular version is a true trinocular, with continuous operation of both eyepieces and photo tube simultaneously. There is no need to block the right eyepiece to use the photoport. MICROSCOPES, CAMERAS ● Large zoom range: 0.62x-5.0x ● Long working distance ● Step and continuous zoom ● 5-year warranty The fourth generation of WPI’s precision stereo zoom microscopes uses modular, two parallel beam path design and high quality optical system. The advanced optical design with planachromatic objectives provides sharp and distortion-free contrast image throughout the entire zoom range and comes with an impressive 5-year warranty. The PZMIV is available in a binocular or trinocular version. In addition, an extensive list of optional accessories is available that makes the PZMIV suitable for integrated optical and biological research. The microscope comes with a track stand, standard 10x eyepieces (wide-field, distortionfree and high eye point), 1x planachromatic distortion-free objective. See the Table on next page for all optical options. Computer and display not included Z-LITE fiber optic illuminator now included with systems below differs from unit in photo — see page 145. PZMIV PZMIV-BS PZMTIV PZMTIV-BS PZMTIV-DIG50 Precision Stereo Zoom Binocular Microscope (Model IV), on Track Stand PZMIV Microscope on Boom Stand (tubular) Precision Stereo Zoom Trinocular Microscope (Model IV), on Track Stand PZMTIV Microscope on Boom Stand (tubular) PZMTIV Microscope System, including PZMTIV, USBCAM50 USB Computer Camera, 0.5× CCD Camera Coupler, Z-LITE Optical Illuminator, Bifurcated Optical Fiber Light Guide PZMTIV-BS-DIG50 PZMTIV Microscope System, including PZMTIV, USBCAM50 USB Computer Camera, 0.5× CCD Camera Coupler, Z-LITE Optical Illuminator, Bifurcated Optical Fiber Light Guide, Boom Stand PZMTIV-BS-LWD-DIG50 PZMTIV Microscope System, including PZMTIV, USBCAM50 USB Computer Camera, 0.5× CCD Camera Coupler, Z-LITE Optical Illuminator, Bifurcated Optical Fiber Light Guide, Boom Stand, 0.5× Objective, 20× Eyepieces for Long Working Distance Viewing See web site for complete configurations. 140 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com PZMIV World Precision Instruments
