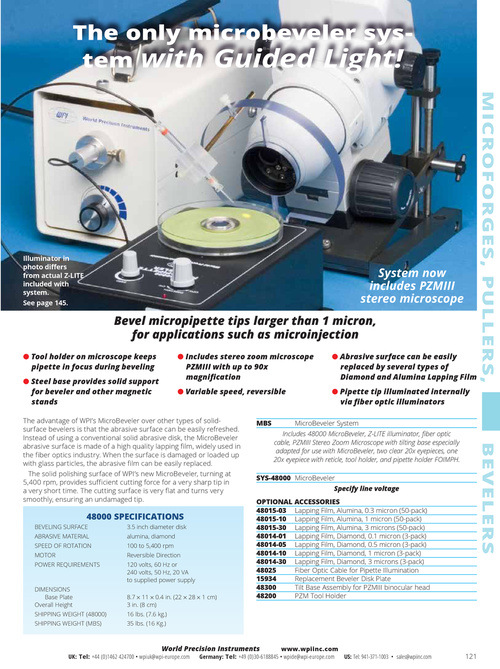

The only microbeveler system with Guided Light! MICROFORGES, PULLERS, Illuminator in photo differs from actual Z-LITE included with system. See page 145. System now includes PZMIII stereo microscope Bevel micropipette tips larger than 1 micron, for applications such as microinjection ● Tool holder on microscope keeps pipette in focus during beveling ● Steel base provides solid support for beveler and other magnetic stands ● Includes stereo zoom microscope PZMIII with up to 90x magnification ● Variable speed, reversible ● Abrasive surface can be easily replaced by several types of Diamond and Alumina Lapping Film ● Pipette tip illuminated internally via fiber optic illuminators The advantage of WPI’s MicroBeveler over other types of solidsurface bevelers is that the abrasive surface can be easily refreshed. Instead of using a conventional solid abrasive disk, the MicroBeveler abrasive surface is made of a high quality lapping film, widely used in the fiber optics industry. When the surface is damaged or loaded up with glass particles, the abrasive film can be easily replaced. The solid polishing surface of WPI’s new MicroBeveler, turning at 5,400 rpm, provides sufficient cutting force for a very sharp tip in a very short time. The cutting surface is very flat and turns very smoothly, ensuring an undamaged tip. MBS MicroBeveler System Includes 48000 MicroBeveler, Z-LITE illuminator, fiber optic cable, PZMIII Stereo Zoom Microscope with tilting base especially adapted for use with MicroBeveler, two clear 20x eyepieces, one 20x eyepiece with reticle, tool holder, and pipette holder FOIMPH. BEVELERS SYS-48000 MicroBeveler Specify line voltage OPTIONAL ACCESSORIES 48015-03 Lapping Film, Alumina, 0.3 micron (50-pack) 48015-10 Lapping Film, Alumina, 1 micron (50-pack) 48015-30 Lapping Film, Alumina, 3 microns (50-pack) 48014-01 Lapping Film, Diamond, 0.1 micron (3-pack) 48014-05 Lapping Film, Diamond, 0.5 micron (3-pack) 48014-10 Lapping Film, Diamond, 1 micron (3-pack) 48014-30 Lapping Film, Diamond, 3 microns (3-pack) 48025 Fiber Optic Cable for Pipette Illumination 15934 Replacement Beveler Disk Plate 48300 Tilt Base Assembly for PZMIII binocular head 48200 PZM Tool Holder 48000 SPECIFICATIONS BEVELING SURFACE ABRASIVE MATERIAL SPEED OF ROTATION MOTOR POWER REQUIREMENTS 3.5 inch diameter disk alumina, diamond 100 to 5,400 rpm Reversible Direction 120 volts, 60 Hz or 240 volts, 50 Hz, 20 VA to supplied power supply 8.7 × 11 × 0.4 in. (22 × 28 × 1 cm) 3 in. (8 cm) 16 lbs. (7.6 kg.) 35 lbs. (16 Kg.) DIMENSIONS Base Plate Overall Height SHIPPING WEIGHT (48000) SHIPPING WEIGHT (MBS) UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 121
