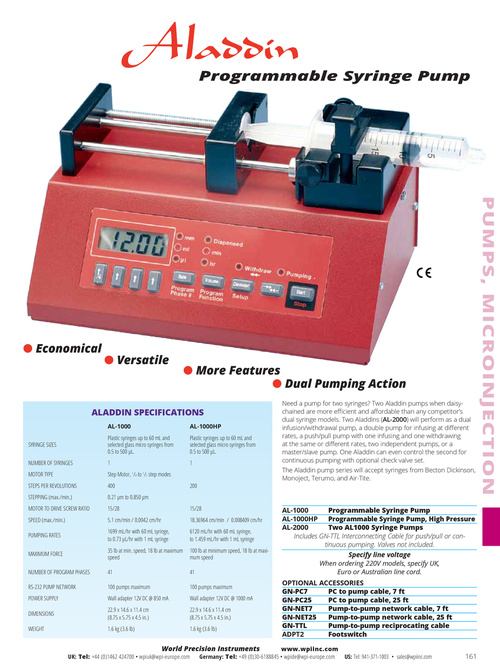

Aladdin Programmable Syringe Pump PUMPS, MICROINJECTION ● Economical ● Versatile ● More Features ● Dual Pumping Action Need a pump for two syringes? Two Aladdin pumps when daisychained are more efficient and affordable than any competitor’s dual syringe models. Two Aladdins (AL-2000) will perform as a dual infusion/withdrawal pump, a double pump for infusing at different rates, a push/pull pump with one infusing and one withdrawing at the same or different rates, two independent pumps, or a master/slave pump. One Aladdin can even control the second for continuous pumping with optional check valve set. The Aladdin pump series will accept syringes from Becton Dickinson, Monoject, Terumo, and Air-Tite. ALADDIN SPECIFICATIONS AL-1000 SYRINGE SIZES NUMBER OF SYRINGES MOTOR TYPE STEPS PER REVOLUTIONS STEPPING (max ./min .) MOTOR TO DRIVE SCREW RATIO SPEED (max ./min .) PUMPING RATES MAXIMUM FORCE NUMBER OF PROGRAM PHASES RS-232 PUMP NETWORK POWER SUPPLY DIMENSIONS WEIGHT Plastic syringes up to 60 mL and selected glass micro syringes from 0 .5 to 500 µL . 1 Step Motor, 1/8 to 1/2 step modes 400 0 .21 µm to 0 .850 µm 15/28 5 .1 cm/min / 0 .0042 cm/hr 1699 mL/hr with 60 mL syringe, to 0 .73 µL/hr with 1 mL syringe 35 lb at min . speed, 18 lb at maximum speed 41 100 pumps maximum Wall adapter 12V DC @ 850 mA 22 .9 x 14 .6 x 11 .4 cm (8 .75 x 5 .75 x 4 .5 in .) 1 .6 kg (3 .6 lb) 15/28 18 .36964 cm/min / 0 .008409 cm/hr 6120 mL/hr with 60 mL syringe, to 1 .459 mL/hr with 1 mL syringe 100 lb at minimum speed, 18 lb at maximum speed 41 100 pumps maximum Wall adapter 12V DC @ 1000 mA 22 .9 x 14 .6 x 11 .4 cm (8 .75 x 5 .75 x 4 .5 in .) 1 .6 kg (3 .6 lb) 200 AL-1000HP Plastic syringes up to 60 mL and selected glass micro syringes from 0 .5 to 500 µL . 1 AL-1000 Programmable Syringe Pump AL-1000HP Programmable Syringe Pump, High Pressure AL-2000 Two AL1000 Syringe Pumps Includes GN-TTL Interconnecting Cable for push/pull or continuous pumping. Valves not included. Specify line voltage When ordering 220V models, specify UK, Euro or Australian line cord. OPTIONAL ACCESSORIES GN-PC7 PC to pump cable, 7 ft GN-PC25 PC to pump cable, 25 ft GN-NET7 Pump-to-pump network cable, 7 ft GN-NET25 Pump-to-pump network cable, 25 ft GN-TTL Pump-to-pump reciprocating cable ADPT2 Footswitch US: Tel: 941-371-1003 • sales@wpiinc.com UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com 161
