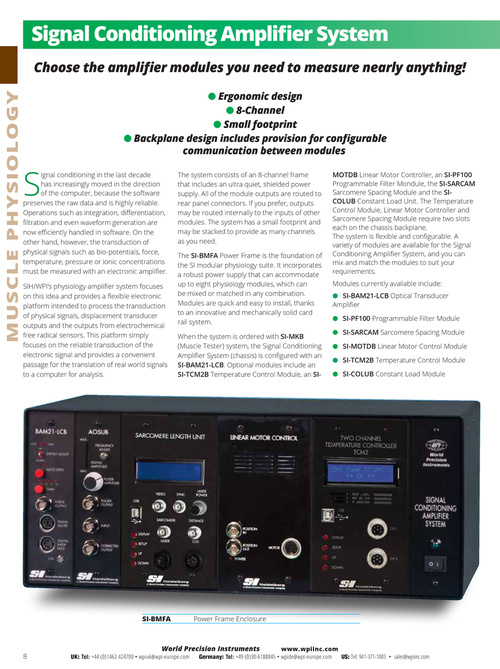

Choose the amplifier modules you need to measure nearly anything! MUSCLE PHYSIOLOGY ● Ergonomic design ● 8-Channel ● Small footprint ● Backplane design includes provision for configurable communication between modules S ignal conditioning in the last decade has increasingly moved in the direction of the computer, because the software preserves the raw data and is highly reliable. Operations such as integration, differentiation, filtration and even waveform generation are now efficiently handled in software. On the other hand, however, the transduction of physical signals such as bio-potentials, force, temperature, pressure or ionic concentrations must be measured with an electronic amplifier. SIH/WPI’s physiology amplifier system focuses on this idea and provides a flexible electronic platform intended to process the transduction of physical signals, displacement transducer outputs and the outputs from electrochemical free radical sensors. This platform simply focuses on the reliable transduction of the electronic signal and provides a convenient passage for the translation of real world signals to a computer for analysis. The system consists of an 8-channel frame that includes an ultra quiet, shielded power supply. All of the module outputs are routed to rear panel connectors. If you prefer, outputs may be routed internally to the inputs of other modules. The system has a small footprint and may be stacked to provide as many channels as you need. The SI-BMFA Power Frame is the foundation of the SI modular physiology suite. It incorporates a robust power supply that can accommodate up to eight physiology modules, which can be mixed or matched in any combination. Modules are quick and easy to install, thanks to an innovative and mechanically solid card rail system. When the system is ordered with SI-MKB (Muscle Tester) system, the Signal Conditioning Amplifier System (chassis) is configured with an SI-BAM21-LCB. Optional modules include an SI-TCM2B Temperature Control Module, an SI- MOTDB Linear Motor Controller, an SI-PF100 Programmable Filter Mondule, the SI-SARCAM Sarcomere Spacing Module and the SICOLUB Constant Load Unit. The Temperature Control Module, Linear Motor Controller and Sarcomere Spacing Module require two slots each on the chassis backplane. The system is flexible and configurable. A variety of modules are available for the Signal Conditioning Amplifier System, and you can mix and match the modules to suit your requirements. Modules currently available include: ● SI-BAM21-LCB Optical Transducer Amplifier ● SI-PF100 Programmable Filter Module ●● SI-SARCAM Sarcomere Spacing Module ●● SI-MOTDB Linear Motor Control Module ●● SI-TCM2B Temperature Control Module ●● SI-COLUB Constant Load Module SI-BMFA Power Frame Enclosure 8 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
