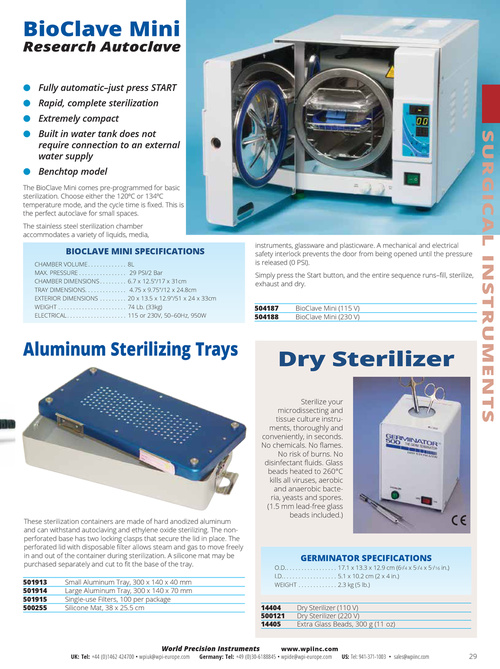

BioClave Mini ● Fully automatic–just press START ● Rapid, complete sterilization ● Extremely compact ● Built in water tank does not require connection to an external water supply ● Benchtop model Research Autoclave SURGICAL INSTRUMENTS SURGICAL INSTRUMENTS The BioClave Mini comes pre-programmed for basic sterilization. Choose either the 120ºC or 134ºC temperature mode, and the cycle time is fixed. This is the perfect autoclave for small spaces. The stainless steel sterilization chamber accommodates a variety of liquids, media, BIOCLAVE MINI SPECIFICATIONS CHAMBER VOLUME . . . . . . . . . . . . . MAX. PRESSURE . . . . . . . . . . . . . . . . CHAMBER DIMENSIONS . . . . . . . . . TRAY DIMENSIONS. . . . . . . . . . . . . . EXTERIOR DIMENSIONS . . . . . . . . . WEIGHT . . . . . . . . . . . . . . . . . . . . . . . ELECTRICAL . . . . . . . . . . . . . . . . . . . . 8L 29 PSI/2 Bar 6.7 x 12.5"/17 x 31cm 4.75 x 9.75"/12 x 24.8cm 20 x 13.5 x 12.9"/51 x 24 x 33cm 74 Lb. (33kg) 115 or 230V, 50–60Hz, 950W instruments, glassware and plasticware. A mechanical and electrical safety interlock prevents the door from being opened until the pressure is released (0 PSI). Simply press the Start button, and the entire sequence runs–fill, sterilize, exhaust and dry. 504187 504188 BioClave Mini (115 V) BioClave Mini (230 V) Aluminum Sterilizing Trays Dry Sterilizer Sterilize your microdissecting and tissue culture instruments, thoroughly and conveniently, in seconds. No chemicals. No flames. No risk of burns. No disinfectant fluids. Glass beads heated to 260°C kills all viruses, aerobic and anaerobic bacteria, yeasts and spores. (1.5 mm lead-free glass beads included.) These sterilization containers are made of hard anodized aluminum and can withstand autoclaving and ethylene oxide sterilizing. The nonperforated base has two locking clasps that secure the lid in place. The perforated lid with disposable filter allows steam and gas to move freely in and out of the container during sterilization. A silicone mat may be purchased separately and cut to fit the base of the tray. 501913 501914 501915 500255 Small Aluminum Tray, 300 x 140 x 40 mm Large Aluminum Tray, 300 x 140 x 70 mm Single-use Filters, 100 per package Silicone Mat, 38 x 25.5 cm O.D.. . . . . . . . . . . . . . . . . 17.1 x 13.3 x 12.9 cm (6 /4 x 5 /4 x 5 /16 in.) I.D.. . . . . . . . . . . . . . . . . . 5.1 x 10.2 cm (2 x 4 in.) WEIGHT . . . . . . . . . . . . . 2.3 kg (5 lb.) 3 1 1 GERMINATOR SPECIFICATIONS 14404 500121 14405 Dry Sterilizer (110 V) Dry Sterilizer (220 V) Extra Glass Beads, 300 g (11 oz) UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 29
