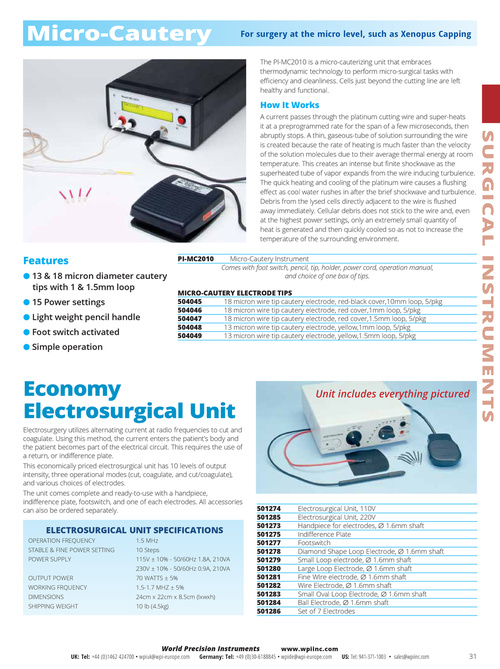

For surgery at the micro level, such as Xenopus Capping The PI-MC2010 is a micro-cauterizing unit that embraces thermodynamic technology to perform micro-surgical tasks with efficiency and cleanliness. Cells just beyond the cutting line are left healthy and functional. How It Works A current passes through the platinum cutting wire and super-heats it at a preprogrammed rate for the span of a few microseconds, then abruptly stops. A thin, gaseous-tube of solution surrounding the wire is created because the rate of heating is much faster than the velocity of the solution molecules due to their average thermal energy at room temperature. This creates an intense but finite shockwave as the superheated tube of vapor expands from the wire inducing turbulence. The quick heating and cooling of the platinum wire causes a flushing effect as cool water rushes in after the brief shockwave and turbulence. Debris from the lysed cells directly adjacent to the wire is flushed away immediately. Cellular debris does not stick to the wire and, even at the highest power settings, only an extremely small quantity of heat is generated and then quickly cooled so as not to increase the temperature of the surrounding environment. SURGICAL INSTRUMENTS Features ● 13 & 18 micron diameter cautery tips with 1 & 1.5mm loop ● 15 Power settings ● Light weight pencil handle ● Foot switch activated ● Simple operation PI-MC2010 Micro-Cautery Instrument Comes with foot switch, pencil, tip, holder, power cord, operation manual, and choice of one box of tips. MICRO-CAUTERY ELECTRODE TIPS 504045 18 micron wire tip cautery electrode, red-black cover,10mm loop, 5/pkg 504046 18 micron wire tip cautery electrode, red cover,1mm loop, 5/pkg 504047 18 micron wire tip cautery electrode, red cover,1.5mm loop, 5/pkg 504048 13 micron wire tip cautery electrode, yellow,1mm loop, 5/pkg 504049 13 micron wire tip cautery electrode, yellow,1.5mm loop, 5/pkg Economy Electrosurgical Unit Electrosurgery utilizes alternating current at radio frequencies to cut and coagulate. Using this method, the current enters the patient’s body and the patient becomes part of the electrical circuit. This requires the use of a return, or indifference plate. This economically priced electrosurgical unit has 10 levels of output intensity, three operational modes (cut, coagulate, and cut/coagulate), and various choices of electrodes. The unit comes complete and ready-to-use with a handpiece, indifference plate, footswitch, and one of each electrodes. All accessories can also be ordered separately. Unit includes everything pictured  ELECTROSURGICAL UNIT SPECIFICATIONS OPERATION FREQUENCY STABLE & FINE POWER SETTING POWER SUPPLY OUTPUT POWER WORKING FRQUENCY DIMENSIONS SHIPPING WEIGHT 1.5 MHz 10 Steps 115V ± 10% - 50/60Hz 1.8A, 210VA 230V ± 10% - 50/60Hz 0.9A, 210VA 70 WATTS ± 5% 1.5-1.7 MHZ ± 5% 24cm x 22cm x 8.5cm (lxwxh) 10 lb (4.5kg) 501274 501285 501273 501275 501277 501278 501279 501280 501281 501282 501283 501284 501286 Electrosurgical Unit, 110V Electrosurgical Unit, 220V Handpiece for electrodes, ∅ 1.6mm shaft Indifference Plate Footswitch Diamond Shape Loop Electrode, ∅ 1.6mm shaft Small Loop electrode, ∅ 1.6mm shaft Large Loop Electrode, ∅ 1.6mm shaft Fine WIre electrode, ∅ 1.6mm shaft Wire Electrode, ∅ 1.6mm shaft Small Oval Loop Electrode, ∅ 1.6mm shaft Ball Electrode, ∅ 1.6mm shaft Set of 7 Electrodes UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 31
