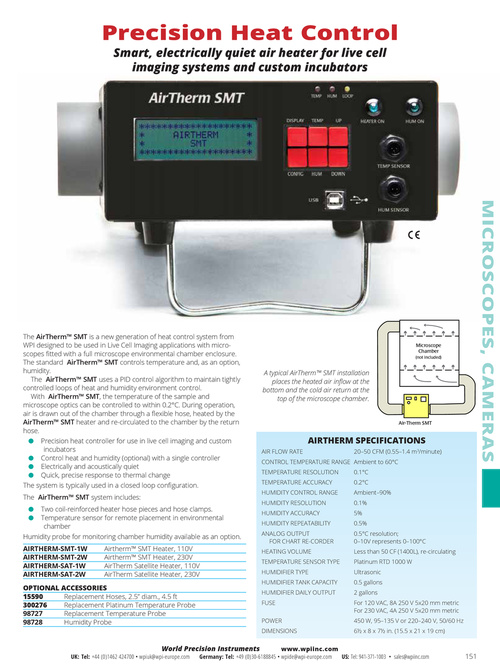

Precision Heat Control Smart, electrically quiet air heater for live cell imaging systems and custom incubators MICROSCOPES, CAMERAS The AirTherm™ SMT is a new generation of heat control system from WPI designed to be used in Live Cell Imaging applications with microscopes fitted with a full microscope environmental chamber enclosure. The standard AirTherm™ SMT controls temperature and, as an option, humidity. The AirTherm™ SMT uses a PID control algorithm to maintain tightly controlled loops of heat and humidity environment control. With AirTherm™ SMT, the temperature of the sample and microscope optics can be controlled to within 0.2°C. During operation, air is drawn out of the chamber through a flexible hose, heated by the AirTherm™ SMT heater and re-circulated to the chamber by the return hose. ● Precision heat controller for use in live cell imaging and custom incubators ● Control heat and humidity (optional) with a single controller ● Electrically and acoustically quiet ● Quick, precise response to thermal change The system is typically used in a closed loop configuration. The AirTherm™ SMT system includes: Two coil-reinforced heater hose pieces and hose clamps. Temperature sensor for remote placement in environmental chamber Humidity probe for monitoring chamber humidity available as an option. ● ● AIRTHERM-SMT-1W AIRTHERM-SMT-2W AIRTHERM-SAT-1W AIRTHERM-SAT-2W Airtherm™ SMT Heater, 110V Airtherm™ SMT Heater, 230V AirTherm Satellite Heater, 110V AirTherm Satellite Heater, 230V Microscope Chamber (not included) A typical AirTherm™ SMT installation places the heated air inflow at the bottom and the cold air return at the top of the microscope chamber. Air-Therm SMT AIRTHERM SPECIFICATIONS AIR FLOW RATE TEMPERATURE RESOLUTION TEMPERATURE ACCURACY HUMIDITY CONTROL RANGE HUMIDITY RESOLUTION HUMIDITY ACCURACY HUMIDITY REPEATABILITY ANALOG OUTPUT FOR CHART RE-CORDER HEATING VOLUME TEMPERATURE SENSOR TYPE HUMIDIFIER TYPE HUMIDIFIER TANK CAPACITY HUMIDIFIER DAILY OUTPUT FUSE POWER DIMENSIONS 20–50 CFM (0.55–1.4 m3/minute) 0.1°C 0.2°C Ambient–90% 0.1% 5% 0.5% 0.5°C resolution; 0–10V represents 0–100°C Less than 50 CF (1400L), re-circulating Platinum RTD 1000 W Ultrasonic 0.5 gallons 2 gallons For 120 VAC, 8A 250 V 5x20 mm metric For 230 VAC, 4A 250 V 5x20 mm metric 450 W, 95–135 V or 220–240 V, 50/60 Hz 6½ x 8 x 7½ in. (15.5 x 21 x 19 cm) CONTROL TEMPERATURE RANGE Ambient to 60°C OPTIONAL ACCESSORIES 15590 Replacement Hoses, 2.5” diam., 4.5 ft 300276 Replacement Platinum Temperature Probe 98727 Replacement Temperature Probe 98728 Humidity Probe World Precision Instruments UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 151
