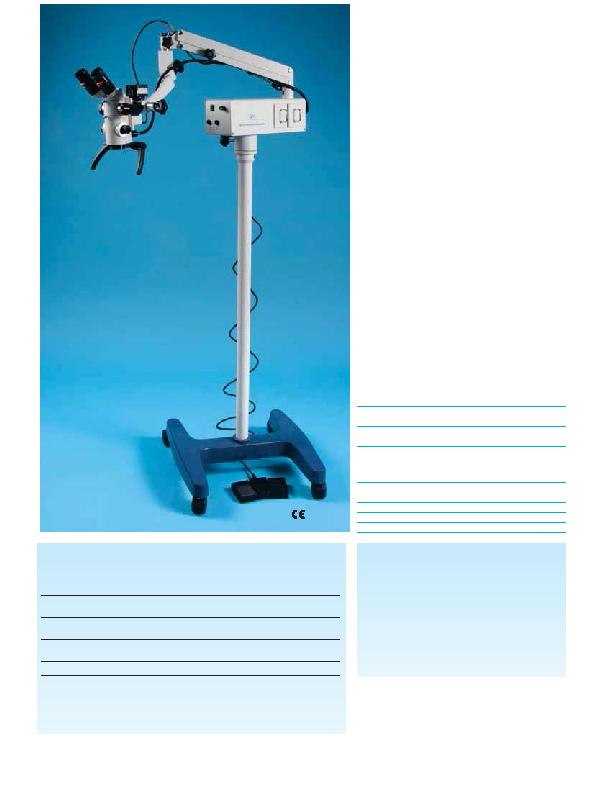

WPI's precision SurgioScope (with five magnification steps)
is a portable high quality surgical microscope offering
outstanding image quality and value. Incorporating an agile
extension arm and excellent working distance objectives,
the SurgioScope provides convenient movement and
maneuverability necessary for accurate positioning. These
important features, together with a high quality optical
system, provide sharp image contrast and enhanced large
field of vision. The SurgioScope comes fully equipped with
a foot-controlled motorized focusing system, normally only
found in more expensive surgical microscopes. A unique
dual lamp housing enables safe and rapid changing of
the lamp during an operation, without the need to power
down. The optional video port on the "T" version permits
operational procedures to be monitored or recorded
simultaneously using video or still cameras (not included).
Precision
SurgioScope
FEATURES:
Motorized focusing system,
allows hands-free operation
Light weight, compact and
easy to maneuver --weighs
only 70 lb.
Dual bulbs prevent
illumination failure during
surgery
Optional video adapter
Improved optics 119 lp/mm
Convenient handles
New head tilting mechanism
Five magnification steps
SURGIOSCOPE Specifications
TOTAL MAGNIFICATION (F200) ............................................. 3.2
× -- 25×
ADJUSTABLE DIOPTER ............................................................. ± 6 Diopter
ADJUSTABLE INTERPUPILLARY DISTANCE ....................... min. 50 mm -- max. 70 mm
EYEPIECE ...................................................................................... 12.5x
FINE FOCUS ADJUSTMENT RANGE ..................................... 30 mm
WORKING HEIGHT (Arm Movement Range Above Floor)
89 cm Post .......................... Focus on specimens 34.5" (88 cm) to 51" (130 cm) above floor *
103 cm Post ........................ Focus on specimens 40.5" (103 cm) to 57" (146 cm) above floor *
* Subtract Working Distance for height above specimen, 103 cm post recommended for F350 objective.
Ideal for small animal surgery
RANGE OF MOTION
Maximum Stretch Radius of Arm .................................870 mm
Vertical Movement Range ..................................700-1100 mm
ILLUMINATION
Spot = 42 mm
Dual lamp housing with quick-change spare and internal
coaxial fiber optic cable.
HALOGEN-TUNGSTEN LAMP ...12V, 100W, with cold reflection
OPTIONAL CAMERA ................... COLCAM, USBCAM50 (
1
/
2
" CCD)
USBCAM33
(
1
/
3
" CCD)
POWER .................................. 110V, 50-60 Hz, or 220V, 50-60 Hz
SHIPPING WEIGHT ..........................................................94 lb (43 kg)
Objective
Working
Distance
Magnification
step
Visual Field of
view (mm)
Camera field 1/2"
CCD (mm)
Camera field 1/3"
CCD (mm)
F200
(included)
190mm
3.2, 5, 8, 13,
20x
50, 31, 20,
12, 8
50, 31, 20,
12, 8
35, 23, 14,
9, 5.5
F250
#504285
240mm
2.6, 4, 6.4, 10.4,
16x
65, 40, 25,
16, 10
63, 40, 25,
16, 10
45, 28, 18,
11, 7
For additional objectives and specifications, please go to WPI website --www.wpiinc.com
World Precision Instruments
www.wpiinc.com
UK: Tel: +44 (0)1462 424700 · wpiuk@wpi-europe.com Germany: Tel: +49 (0)30-6188845 · wpide@wpi-europe.com US: Tel: 941-371-1003 · sales@wpiinc.com
World Precision Instruments
www.wpiinc.com
UK: Tel: +44 (0)1462 424700 · wpiuk@wpi-europe.com Germany: Tel: +49 (0)30-6188845 · wpide@wpi-europe.com US: Tel: 941-371-1003 · sales@wpiinc.com
PSMB5N Binocular SurgioScope, F200 objective
(Specify post height.)
PSMT5N Trinocular SurgioScope, beam splitter, std video adapter,
F200 objective (Specify post height.)
Specify 89 cm or 103 cm post
Specify line voltage
OPTIONS AND ACCESSORIES
501636
1
/
2
" CS-mount Adaptor (requires
Beam Splitter 501637)
501637 Beam
splitter
504285
F250 Objective
500162
Replacement lamp, 12V, 100 W
