104
W
orld Pr
ec
ision Instruments
Stopcock #14036
included with BLPR2
BLPR2 can be used for the direct arterial and venous pressure mea-
sure ment in animal blood vessels. Supplied sterile, BLPR2 is accurate,
linear and stable with temperature. May be sterilized cold with Cidex or a
similar bac te ri cide.
BLPR2 is equipped with a twelve-foot cable and connector com pat i ble
with WPI's four-channel signal conditioning unit, TBM4M Transbridge,
and the single-channel BP1 blood pressure mon i tor. Cable has moisture-
resis tant locking connector. A continuous, uniform lumen eliminates
places for bub bles to form and lodge. The clear fluid path is easy to
inspect. Easy to mount -- slotted transducer body accepts Velcro strap.
To facilitate setup and operation, a four-way stopcock that al lows easy
filling, flushing, and zeroing of the transducer is in clud ed. Typically, the
stopcock is located between the trans ducer and the animal catheter
where it can be used to quickly zero, flush, or de-bubble the transducer.

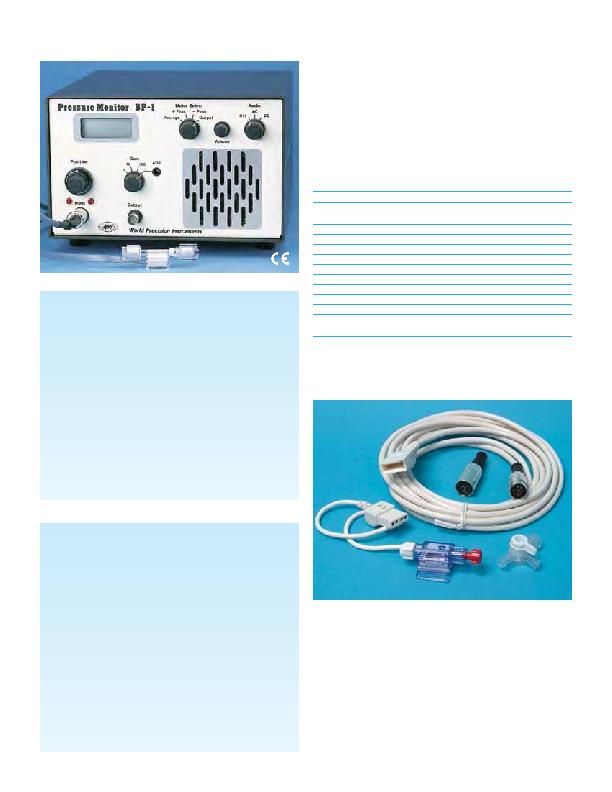

Blood Pressure Monitor and Transducer
Monitors animal arterial or venous blood pressure
Displays systolic, diastolic or average blood pressure
BP1 accepts WPI's BLPR blood pressure transducer (below) as well as other
blood pressure transducers.
An audio monitor provides a signal with variable pitch and am pli tude,
allowing you to hear changes in blood pressure. Digital LCD display pro vides
average or peak signal values from 0 to 1999 mV. With an optional pressure
gauge (not provided -- see PM015D, page
187
), the user may cal i brate the
display to read mm Hg. Re cord er out put con nec tor al lows di rect con nec tion to
a pen re cord er, os cil lo scope or com put er via a data acquisition system.
BP1 SPECIFICATIONS
AMPLIFICATION
x1, x10, x100, variable (x5 to x1000)
BANDWIDTH, SMALL SIGNAL (-3 dB)
300 kHz (x1)
30 kHz (x10)
3 kHz (x100)
0.3 kHz (x1000)
OUTPUT VOLTAGE SWING
± 5 volts
MAXIMUM OUTPUT CURRENT
2 mA
INPUT IMPEDANCE, EACH INPUT
100 k
|| 0.01 F
TRANSDUCER APPLIED VOLTS
10 V nominal, varies with load. 25 mA,
maximum
DIGITAL PANEL METER
0 to 1999 mV (calibrated in mm of Hg
pressure when supplied with pressure
gauge). Meter reads average value or
± peak (1 to 20 Hz).
POWER
95-135 V or 220-240 V, 50/60 Hz
DIMENSIONS
8.5 x 5.12 x 10 in. (21.6 x 13 x 25.44 cm)
SHIPPING WEIGHT
11 lb (5 kg)
BLPR2 SPECIFICATIONS
WORKING PRESSURE
-50 to + 300 mm Hg
OVERPRESSURE
-400 to +4000 mm Hg
EXCITATION VOLTAGE
1-10 VDC or RMS to 5 kHz
INPUT IMPEDANCE
350
±10%
OUTPUT IMPEDANCE
300
±10%
ISOLATION
< 5 A leakage at 120 VAC
SENSITIVITY 5
V/V/mm Hg
DYNAMIC RESPONSE
100 Hz
EIGHT HOUR DRIFT
1 mm Hg after 5 minute warm-up
MAXIMUM ERROR
Total combined effects of Sensitivity, Linearity,
Hysteresis (at 25°C and 5 V/V/mm Hg) do not
exceed ±2% or 1 mm Hg, whichever is greater.
ENVIRONMENTAL
Operating Temp. Range
+15°C to +40°C
Storage Temp. Range
-30°C to +60°C
Light Sensitivity
Not affected by light under 3000 ft/candles
(32,000
lux)
SHIPPING WEIGHT
1 lb
BLOOD PRESSURE
TRANSDUCER
World Precision Instruments
www.wpiinc.com
UK: Tel: +44 (0)1462 424700 · wpiuk@wpi-europe.com Germany: Tel: +49 (0)30-6188845 · wpide@wpi-europe.com US: Tel: 941-371-1003 · sales@wpiinc.com
World Precision Instruments
www.wpiinc.com
UK: Tel: +44 (0)1462 424700 · wpiuk@wpi-europe.com Germany: Tel: +49 (0)30-6188845 · wpide@wpi-europe.com US: Tel: 941-371-1003 · sales@wpiinc.com
SYS-BP1
Pressure Monitor (transducer & cable not included)
Specify line voltage
ACCESSORIES
BLPR2
NEW Blood Pressure Transducer & Cable
BPCABLE2 NEW Cable (12 ft) with DIN connector for BLPR2
503067
BLPR2 Transducer without cable
13024
Single Rack Mount Kit
13025
Dual Rack Mount Kit
3491
Extension Cable, 5 ft
500184
BNC-to-BNC Cable, 10 ft
14036-15
4-Way Luer Stopcock, Blue Tint (package of 15)
KZ1101
Micro Cannula, 3 inch
Note: BLPR2 is intended for animal research only and may not be
used for human blood pressure measurement.
