Illuminators and Light Guides
World Precision Instruments offers a comprehensive range of illumination equipment for stereo and fluorescence microscopy.
Microscope Lighting Introduction
Good lighting for a microscope is critical to make all relevant details of the sample visible. This is achieved by offering microscope lighting options that are varied and offer different characteristics that will influence the analysis of the samples’ surface topography.
For non-transparent samples, reflected or incident light is used. Typical options will include Fiber Optic Light Guides, Ring Lights and Line Lights.
For transparent samples, transmitted light is used to illuminate the sample. Typical options will include Back Light.
Cold Light Source
Fiber optic illumination offers easy compatibility with all stereo microscopes due to their wide range of light guides and accessories. They are referred to as cold light source as the light is guided to the sample via optical fiber, so heat develops only at the light source and no heat is emitted on the sample itself.
Compared to direct light sources fiber optic light sources provide significantly higher intensity. This is particularly important when working with magnifications of 30X and higher.
Direct Light Source
In direct lighting solutions the lighting in the form of single LED’s is located directly in the lighting head. As the LED’s can each be controlled independently this can provide more lighting control including segmenting the ring light illumination in different ways to provide better contrast on the sample by using shadow effects.
- Ring Lights for microscopes
- Back Lights for microscopes
LED Fiber Optic Illuminator
Photonic LED fiber optic illuminators are designed with microscopy applications in m...
Halogen Fiber Optic Illuminator
Uninterrupted, directed light for microscopes and other applications.
The Z-LI...
Lambda 421
Optical Beam Combining System, Includes Lambda 421 with liquid light guide, cables, ...
Lambda 721 - Optical Beam Combining System
Includes Lambda 721 with liquid light guide, cables, and power cord. The instrument ...
Lambda 821
Optical Beam Combining System, Includes Lambda 821 with liquid light guide, cables, and...
Lambda OBC
Optical Beam Combiner, Includes Lambda OBC optical beam combining pentagon that accomod...
Lambda TLED / TLED+
The Lambda TLED and TLED+ are stand-alone LED light sources that can be used with the t...

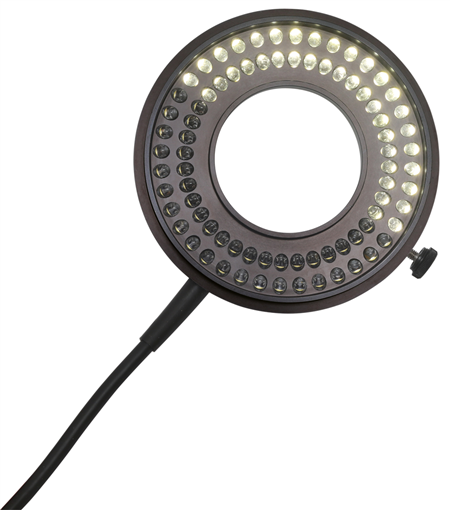

LED-Ringlight 66/80
- 80 LEDs
- Individual segment control (requires controller)
- Mounting diameter: Ø 66 mm, adapters available for different diameters
- Working distances 35-120 mm and 120-300 mm
- Comparable to 150 W Halogen light source
- Polarising filter set and diffuser available
