Lambda HPX LED

Lambda HPX LED

Liquid Cooled LED Light Source



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

There are 1 images available to view - click to enlarge and scroll through the product gallery.

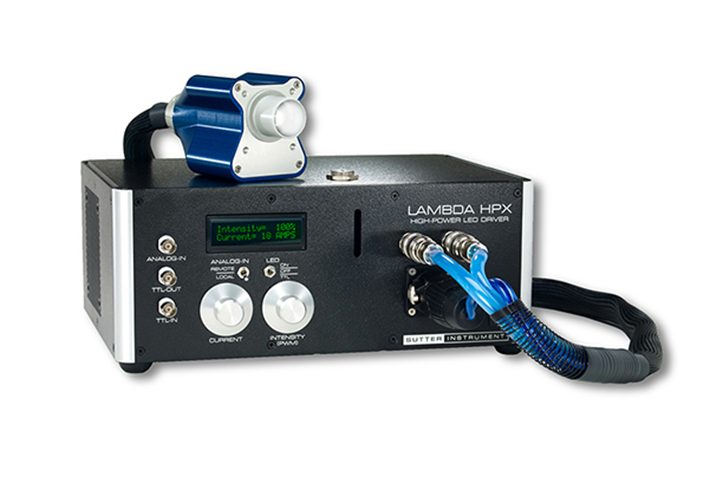

The Lambda HPX represents the latest generation of liquid-cooled high-output LED light sources. Designed around a single 90W 4.25 mm LED die, the Lambda HPX provides light output comparable to a 200W xenon arc lamp. A quiet, vibration-free liquid cooling head (pre-filled at the factory) allows us to maintain the low junction temperatures required to reach the manufacturer’s projected minimum bulb life of 60,000 hours. (The HPX is expected to retain 70% of it's light output after 60,000 hours.) The lightweight precision-machined LED head is designed to mount directly on the epi port of a microscope using an included microscope adapter (specify at time of order). This affords the maximum amount of light coupled directly to the scope, without the losses associated with a liquid light guide.

Because LEDs exhibit color shift with current change, the Lambda HPX was designed to dim the LED using either PWM or current control. PWM will be preferable for most applications, and allows the LED to run cooler. PWM switching is at 28 kHz, high enough for use with most high speed cameras. For those with applications intolerant of pulsed output, dimming via current control is also available. PWM and current information are conveniently displayed on the front panel display, and are manually selectable via control knobs. Integral shuttering time is 10 microseconds to turn on and off.

PWM can also be controlled externally via analog input. TTL input and output allows for triggering from either software or directly from another device such as a camera or digital IO board. The LED cable, and cooling lines are easily removable from the chassis with no-drip quick connectors. This allows for easy set up and routing of cables through your setup. Active temperature monitoring insures that the LED life will be maximized.

Light output is in the visible spectrum from 430 nm - 700 nm. Both a cool white and “tungsten” white LED is available (see spectra). Special order units are available with 630 nm, 530 nm, 460 nm, 405 nm, and 385 nm wavelength specific LEDs. The Lambda HPX can also be combined with our FLED to create a two-channel system with any combination of wavelengths.

FEATURES

  • Pre-filled liquid cooling
  • Dimming via PWM or Current control
  • Lifetime > 50,000 hours
  • Front mounted connectors for ease of access
  • TTL and Analog controlsIntegral Shuttering
  • White light and UV combination available


COMMON APPLICATIONS

  • Fluorescent microscopy
  • Optogenetics

Specifications

LAMBDA-HPX- Includes the Lambda HPX LED light source, cables and controller

HPX-Y Lambda HPX LED light source for Olympus

HPX-N Lambda HPX LED light source for Nikon

HPX-Z Lambda HPX LED light source for Zeiss

HPX-L Lambda HPX LED light source for Leica

Select one wavelength when ordering:

WC-HPX LED, Cool White
460-HPX LED, 460 nm
530-HPX LED, 530 nm
630-HPX LED, 630 nm


LAMBDA-HPXUV- Includes the Lambda HPXUV Ultraviolet LED light source, cables and controller

HPXUV-Y Lambda HPX UV LED light source for Olympus

HPXUV-N Lambda HPX UV LED light source for Nikon

HPXUV-Z Lambda HPX UV LED light source for Zeiss

HPXUV-L Lambda HPX UV LED light source for Leica

HPXUV-C Lambda HPX UV LED light source with C-mount

Select one wavelength when ordering

385-HPX UV LED, 385nm
405-HPXUV LED, 405nm


LAMBDA-HPX-DC* - Includes the Lambda HPX LED light source with cool white LED, Lambda FLED with Ultraviolet LED, and cables.


HPX-DC-Y Lambda HPX and FLED for Olympus

HPX-DC-N Lambda HPX and FLED for Nikon

HPX-DC-Z Lambda HPX and FLED for Zeiss

HPX-DC-L Lambda HPX and FLED for Leica

* Suitable for additional DAPI channel


ACCESSORIES

TRIGGER USB trigger box (Compatible with Micro-Manager software)



TECHNICAL SPECIFICATIONS


Output Range
White light (430 nm - 700 nm)


Shuttering
Turn on time: 10 µs
Turn off time: 10 µs


Noise/Short term stability
0.02%


LED Life
> 50,000 hours


PWM Frequency
28 kHz


Input / Output
TTL & Analog


Standard White LEDs
Cool white (see spectra)


Optional LEDs
630 nm, 530 nm, 460 nm, and 405 nm


Dimming
PWM or Current control


Dimensions
Control Box
12.25 in W x 9 in D x 5.25 in H | 311 mm W x 229 mm D x 133 mm H

Head (attaches to scope)
2.5 in W x 3 in H x 5 in L | 64 mm W x 76 mm H x 127 mm L

Length of cabling between Head and Control Box
4 ft | 1.2 m

Weight
12.5 lbs | 5.7 Kg


Electrical
120/240 Volts
50/60 Hertz power line
150 Watts max
