Lambda FLED

Lambda FLED

Fluorescent Light Source


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

There are 1 images available to view - click to enlarge and scroll through the product gallery.

The Lambda FLED was designed as a high-power LED driver for fluorescence microscopy. Based on our proven TLED+ design, the FLED has been optimized for single-channel, high-current LEDs used as excitation light sources.

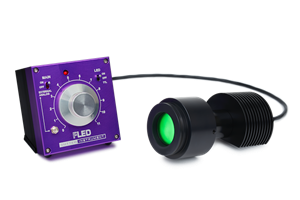

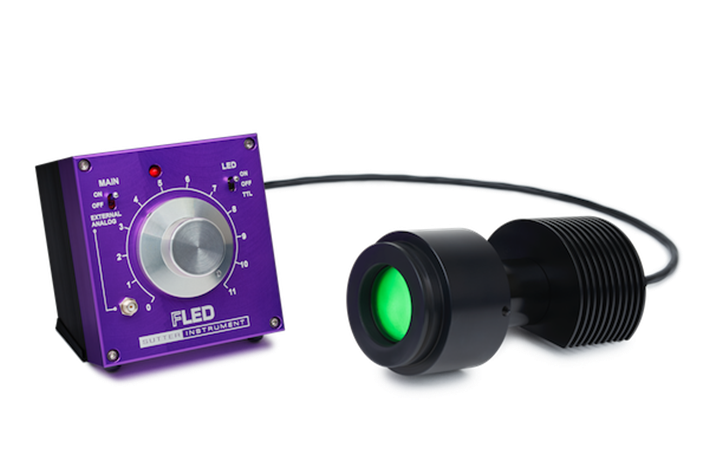

The basic system consists of an LED mounted on a special black-anodized aluminum heat sink and a controller. The controller is CNC machined from solid aluminum billet, and powered by a rugged modular universal power supply. The FLED provides intensity control and on-off control via a toggle switch or TTL logic. The on-off time is less than 25 µsecs when using TTL control. In addition to digital input control, the Lambda FLED has an analog input to modulate the LED intensity. The Lambda FLED is expected to have stable output that will last more than 50,000 hours.

The Lambda FLED can be ordered with several different wavelength-specific LEDs that range from 365 nm to 940 nm. Please call us if you require a wavelength that is not listed.

Our dual channel Lambda FLED option combines two high power LEDs into a single light path. The FLED-DC allows the use of two channels for fluorescence imaging. Both channels are driven by individual FLED controllers and can be triggered, also individually, by a TTL signal. For greater than two LEDs in a setup, please see our Lambda 421 or Lambda OBC.

Product Wavelength options (nm)* External Control
FLED 340, 365, 385, 410, 440, 460, 480, 506, 530, 561, 590, 630, 660, 740, 850, 940 Digital (BNC) / Analog (SMA)


* other wavelengths available upon request
Each Lambda FLED system includes an optical mounting adapter for the excitation port of the microscope and detailed installation instructions. Mounting adapters are designed to fit most models of Nikon, Olympus, Zeiss and Leica microscopes. Custom adapters are available at an additional cost.

FEATURES

  • > 50,000 hour lifetime
  • < 25 µsecs ON-OFF time
  • TTL control (with polarity switch)
  • Very stable output
  • Compact stand-alone design
  • Easy installation

COMMON APPLICATIONS

  • Fluorescent microscopy
  • Ultra high speed wavelength selection (FLED-DC)

Specifications

LAMBDA FLED Single Channel LED Light Source
Includes Lambda FLED light source, FLED controller and power supply

*Please select one wavelength when ordering: (in nm) 340, 365, 385, 410, 440, 460, 480, 506, 530, 561, 590, 630, 660, 740, 850, 940

FLED-N Lambda FLED for Nikon

FLED-N25 Lambda FLED for Nikon TE200/E300, Diaphot 200/300 (Replaces the epi-illuminator)

FLED-Y Lambda FLED for Olympus

FLED-Z Lambda FLED for Zeiss

FLED-L Lambda FLED for Leica

FLED-C Lambda FLED with C-mount (Suitable for SOM microscope)


LAMBDA FLED-DC Dual Channel LED Light Source
Includes dual channel Lambda FLED light source, two FLED controllers and power supplies.

*Please select TWO wavelengths when ordering: (in nm) 340, 365, 385, 410, 440, 460, 480, 506, 530, 561, 590, 630, 660, 740, 850, 940

FLED-DC-N Dual Channel Lambda FLED for Nikon

FLED-DC-Y Dual Channel Lambda FLED for Olympus

FLED-DC-Z Dual Channel Lambda FLED for Zeiss

FLED-DC-L Dual Channel Lambda FLED for Leica

FLED-DC-C Dual Channel Lambda FLED with C-mount


TRIGGER USB trigger box (Compatible with Micro-Manager software)

* Other wavelengths and wavelength combinations may be available. Contact Sutter for details.

Custom mounting adapters are available on all models at an additional cost.




TECHNICAL SPECIFICATIONS

Output Range
White light (400 nm - 700 nm)


Noise/Short term stability
0.01%


LED Life
> 50,000 hours


Control Box Dimensions
FLED
4 in x 3.25 in x 4.1 in | 10.2 cm x 8.3 cm x 10.2 cm

Weight
2.2 lbs | 1.0 kg


Electrical
120/240 Volts
50/60 Hertz power line
75 Watts max
