LED Fiber Optic Illuminator
Photonic LED fiber optic illuminators are designed with microscopy applications in mind and support a fuill range of accessories including gooseneck, flexible light guide, line light converter and a wide choice of filters. These cold light sources are also great solutions for industrial applications incluiding, inspection, forensics and machine vision.
LED Fiber Optic Light Sources
Photonic lighting systems excel by virtue of their:
- Precise object illumination
- High light output
- Even illumination without a dark spot
- Individual structuring of the light beam with light guides, lens attachments and filter/filter combinations
- Variety of illumination options even in inaccessible places
- Increased lamp life thanks to the newly developed soft start electronics
- Unexpected voltages are discharged in combination with ESD light guides
The LED light sources have been developed for illumination purposes of stereo microscopy for industrial and laboratory use.
| Order Code | Description | |
| F1 LED-Light-Source |
| LED light source for industrial applications (Product Code 10030)
|
| F3000 LED Light Source |
| High Powered LED fiber optic illuminator (Product Code 10060.1)
|
| F5100 LED-Light-Source |
| High Powered LED fiber optic illuminator (Product Code 10140)
|
| 10105 |
| Foot switch with 2.5 m cable, 2.5 mm jack
|
| Filter holder with filter compatible with F3000 and F5100 LED Light-Sources
|
Light Guides & Accessories
FIBRE OPTICS from Photonic deliver outstanding trans-mission speeds and optimum light distribution. The luminous flux is unrivalled in comparison with that of its competitors. High-quality fibre sheathing prevents fibre breakage, while the light guide connection is exceptionally heat resistant. This guarantees the highest quality in each particular application and exceptionally long optical fibre life.
- Highest transmission speed
- High-quality sheathing protects fibres
- Stable aluminium end-piece design
- Optimal light distribution
- High temperature resilience
- Long fibre durability combined with intense light sources
Light Guides & Accessories For F1, F3000, F5100 and PL Series
| Order Code | Description | |
| 595-20-167 |  | Gooseneck Light Guide Dual Arm
|
| 595-20-169 |  | Gooseneck Combination Light Guide Dual Arm
|
| 595-20-030 |  | Flexible Light Guide, Single Arm
|
| 595-20-033 | | Flexible Light Guide, Single Arm
|
| 595-20-036 |  | Flexible Light Guide, Dual Arm
|
| 595-20-140 |  | Line Light converter for Gooseneck Light Guides |
 | Articulated Support Arm - order components separately
| |
 | Filters to fit at end of light guide
| |
| 595-20-005 |  | Fiber optic ring light 66 mm ID with focusing lens
|
|

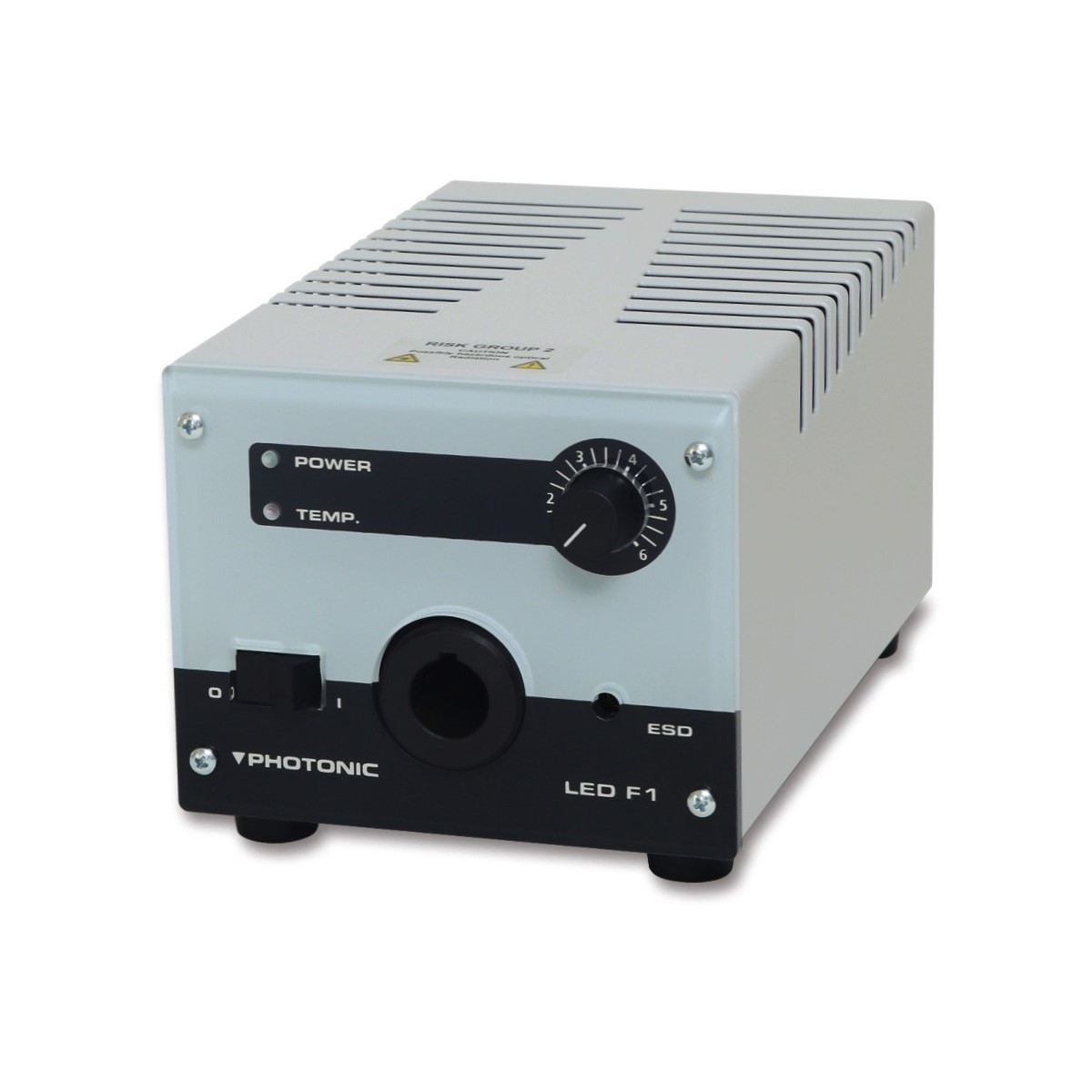

F1 LED-Light-Source
LED light source for industrial applications, Comparable with 100 W Xenon light sour...

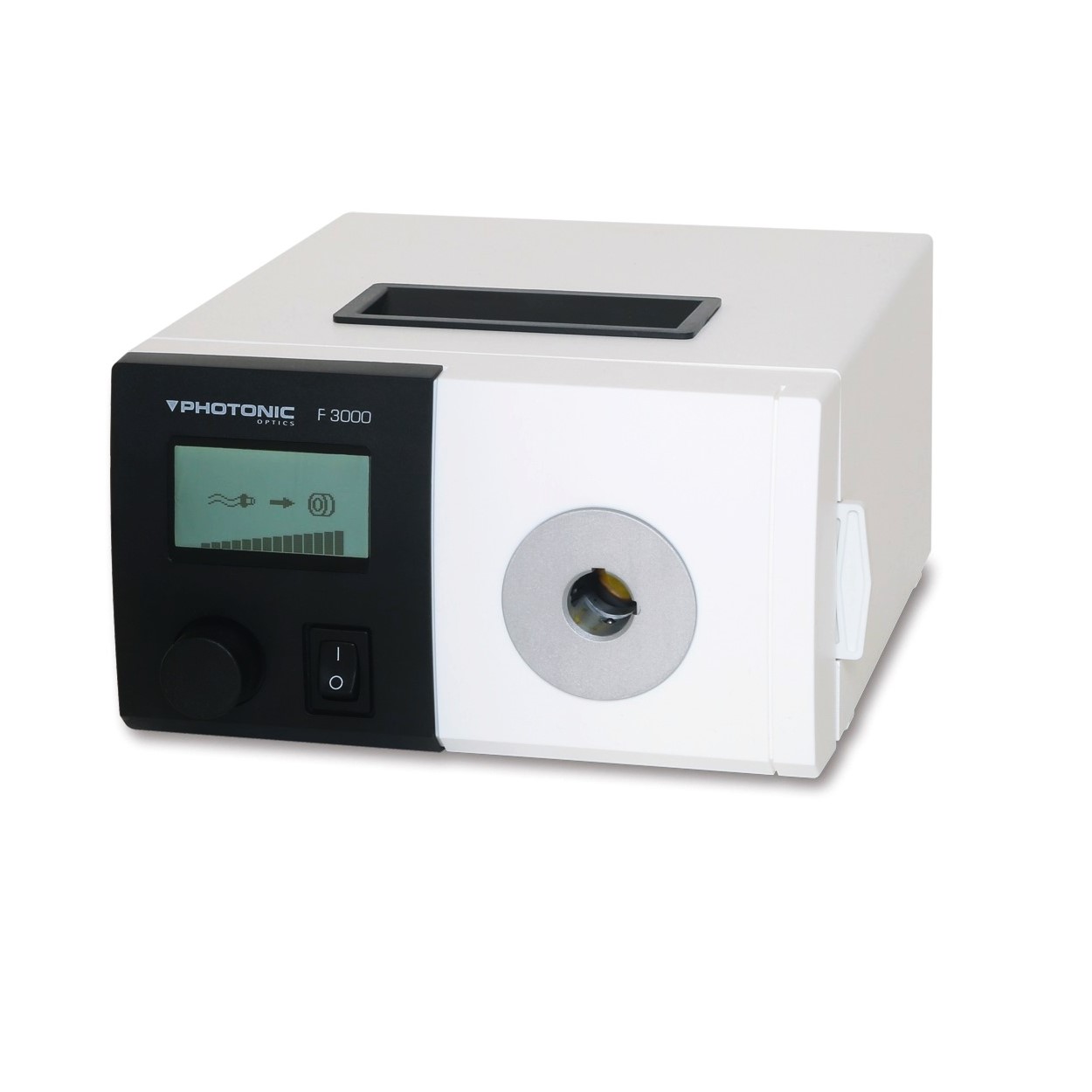

F3000 LED Light Source
LED light source for microscopy illumination, Life-Science and industrial applicatio...

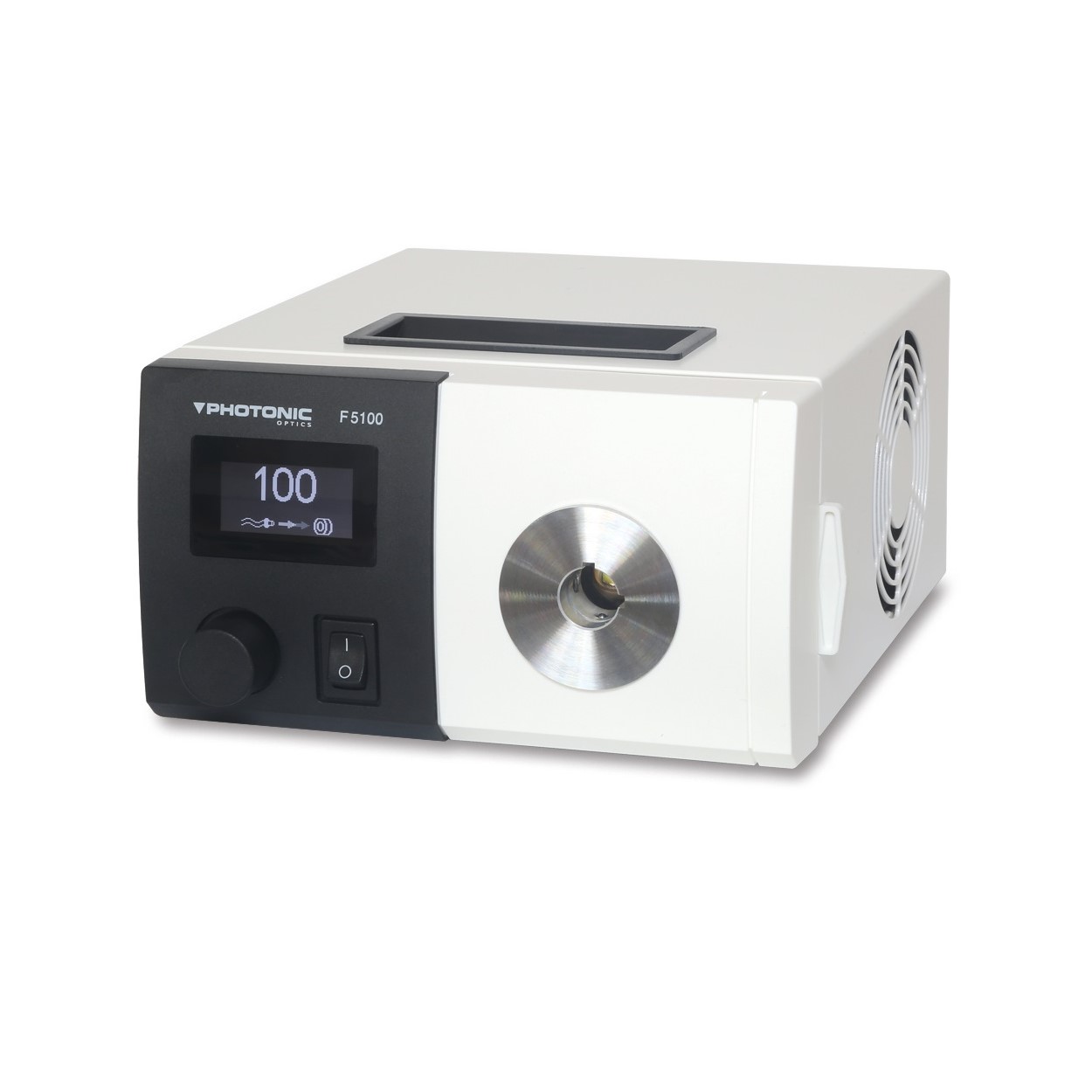

F5100 LED-Light-Source
LED light source for microscopy illumination, Brighter than 250 W Halogen light sour...

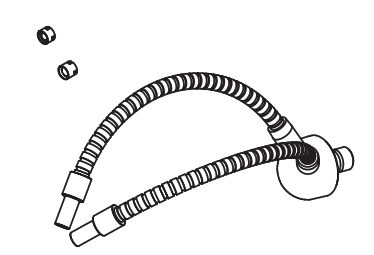

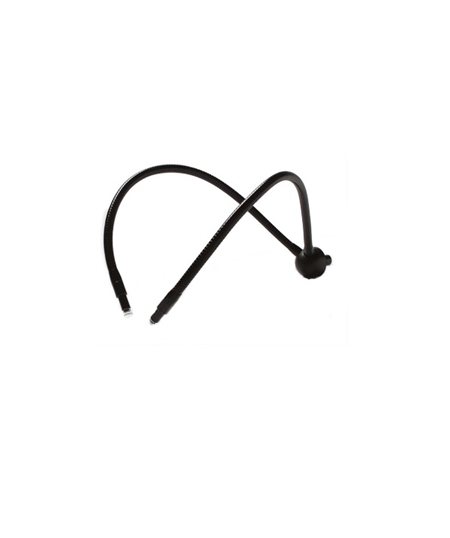

595-20-167
Gooseneck Light Guide Dual Arm
- Optimal positioning with flexi-arms
- Diameter (active) at light source: 4,5 mm
- Mechanic diameter at light source: 15 mm
- Length: 550 mm
- Focus lenses and color filters available
- Suitable for F1, F3000, F5100 and PL light sources

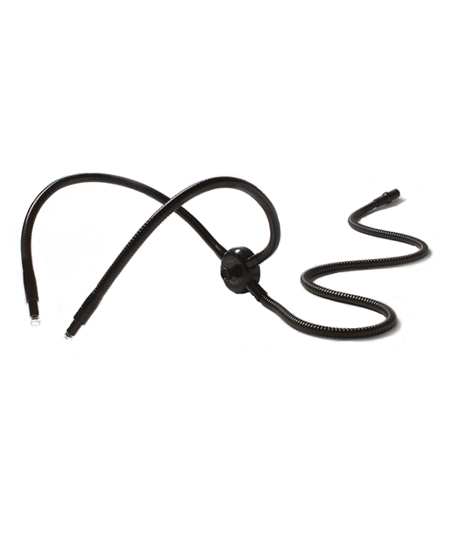

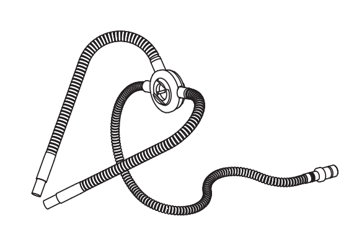

595-20-169
Gooseneck Combination Light Guide Dual Arm
- Optimal positioning with flexi-arms
- Diameter (active) at light source: 4,5 mm
- Mechanic diameter at light source: 15 mm
- Gooseneck Length 550 mm; Flexible Guide Length 750 mm
- Focus lenses and color filters available
- Suitable for F1, F3000, F5100 and PL light sources

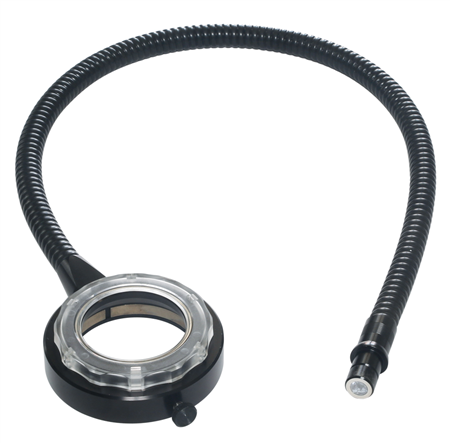

595-20-005
Fiber optic ring light - inner diameter 66 mm with focusing lens
- For microscopes with 66 mm lenses
- Length: 750 mm
- Diameter (active) at light source: 9 mm
- Mechanic Diameter at light source: 15 mm
- Suitable for F1, F3000, F5100 and PL light sources

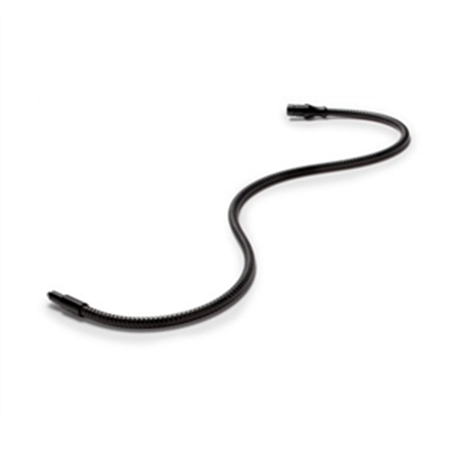

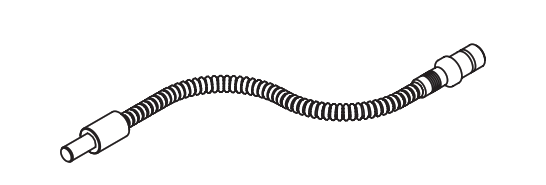

595-20-030
Flexible Light Guide, Single Arm Ø 5 mm L = 1000 mm
- 1-arm active Ø 5mm
- Length: 1000 mm
- With optical elements
- Suitable for F1, F3000, F5100 and PL light sources
595-20-033
Flexible Light Guide, Single Arm Ø 8 mm L = 1000 mm
- 1-arm active Ø 8 mm
- Length: 1000 mm
- Without optical elements
- Suitable for F1, F3000, F5100 and PL light sources

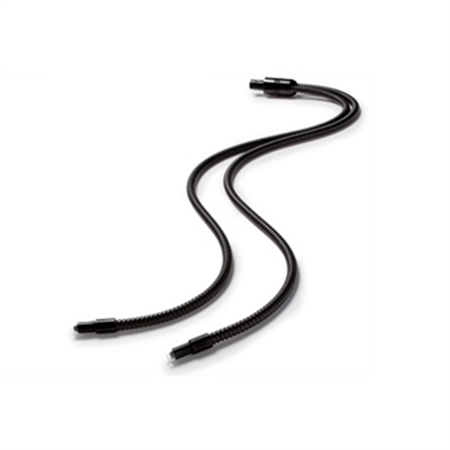

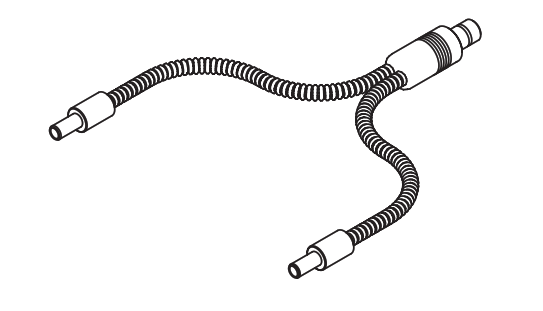

595-20-036
Flexible Light Guide, Dual Arm 2 x Ø 5 mm L = 1000 mm
- 2-arm active Ø 5mm
- Length: 1000 mm
- With optical elements
- Suitable for F1, F3000, F5100 and PL light sources

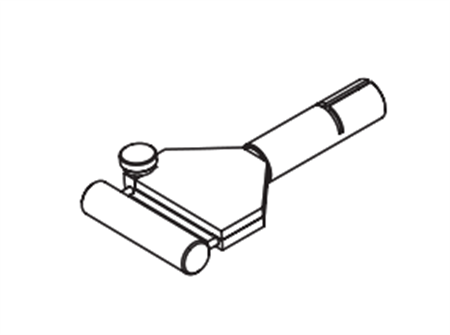

595-20-140
Line Light converter for Gooseneck Light Guides
- Suitable for F1, F3000, F5100 and PL light sources
595-30-005
Holder M6, for illumination light guide
- For use with flexible light guide
- To complete articulated support order 595-30-029 and 619-30-007
- Suitable for F1, F3000, F5100 and PL light sources

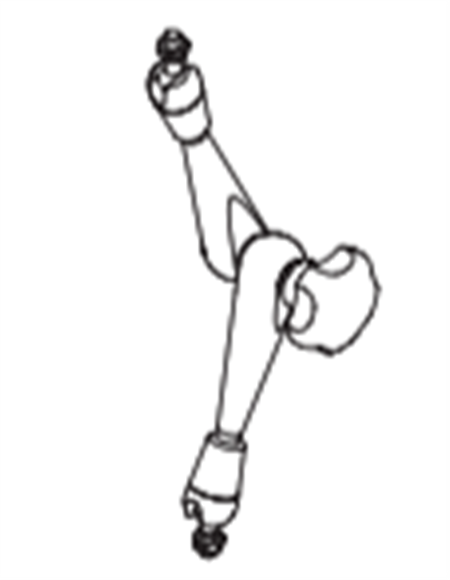

595-30-029
Articulated arm, 2 x M6, L = 200 mm
- For use with flexible light guide
- To complete articulated support order 595-30-005 and 619-30-007
- Suitable for F1, F3000, F5100 and PL light sources

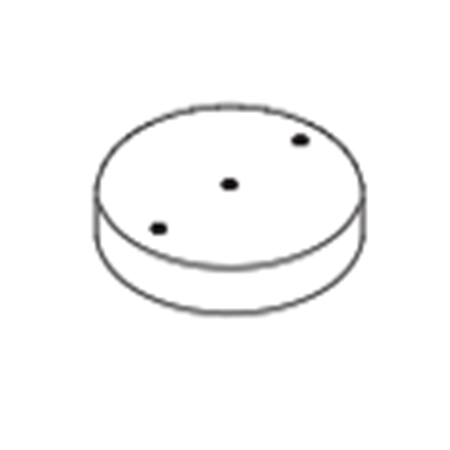

619-30-007
Base plate, 3 x M6 thread, 1 x M6/M5 adapter
- For use with flexible light guide
- To complete articulated support order 595-30-029 and 595-30-005
- Suitable for F1, F3000, F5100 and PL light sources

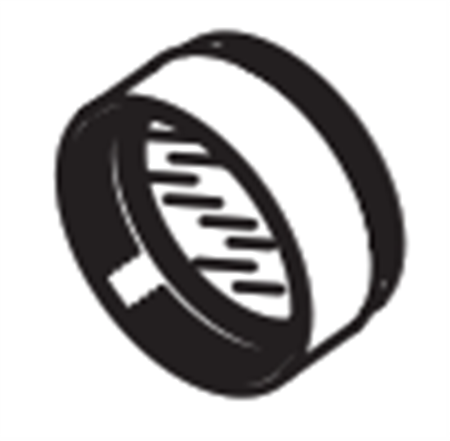

595-30-006
Filter Bracket
- For use with flexible light guide and filter
- Suitable for F1, F3000, F5100 and PL light sources
595-30-013
Polarisation Filter
- For use with flexible light guide and filter bracket (595-30-006)
- Suitable for F1, F3000, F5100 and PL light sources
595-30-012
Daylight Filter
- For use with flexible light guide and filter bracket (595-30-006)
- Suitable for F1, F3000, F5100 and PL light sources
595-30-009
Green Filter
- For use with flexible light guide and filter bracket (595-30-006)
- Suitable for F1, F3000, F5100 and PL light sources
595-30-010
Yellow Filter
- For use with flexible light guide and filter bracket (595-30-006)
- Suitable for F1, F3000, F5100 and PL light sources
595-30-011
Red Filter
- For use with flexible light guide and filter bracket (595-30-006)
- Suitable for F1, F3000, F5100 and PL light sources

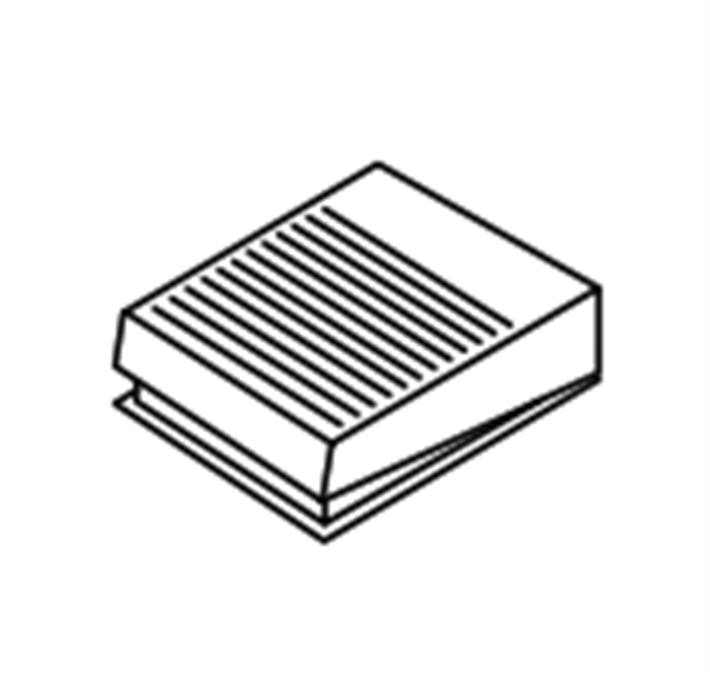

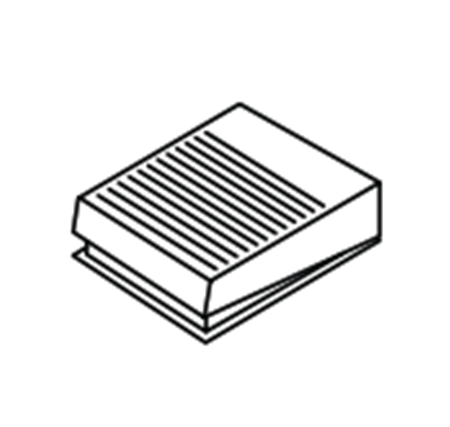

10105
Foot switch with 2.5 m cable, 2.5 mm jack
- On/Off, Presets and Dimming Options
- Suitable for F3000 and F5100
593-30-224
Filter holder with filter "Halogen" 3500 K
- Suitable for F3000 and F5100

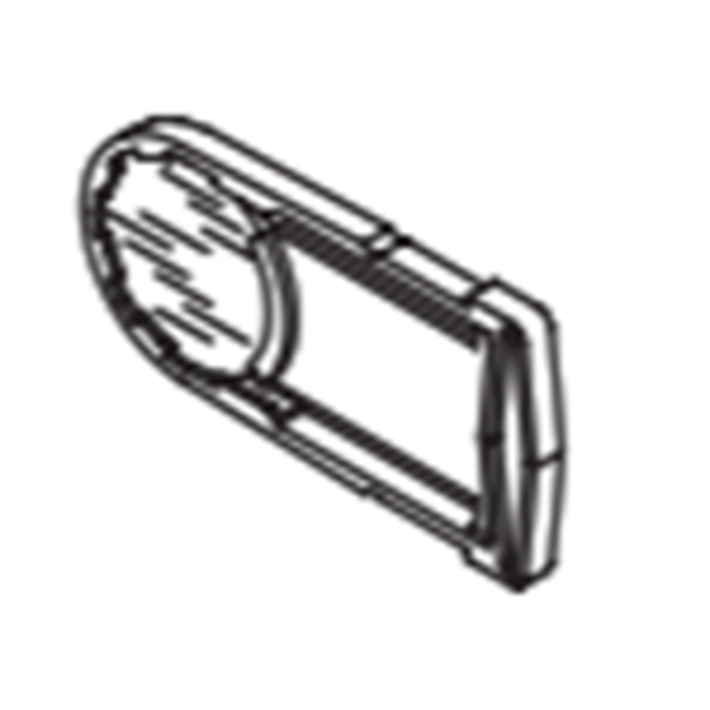

593-30-001
Filter holder with blue filter
- Suitable for F3000 and F5100
593-30-002
Filter holder with green filter
- Suitable for F3000 and F5100
593-30-003
Filter holder with yellow filter
- Suitable for F3000 and F5100
593-30-004
Filter holder with red filter
- Suitable for F3000 and F5100
593-30-005
Filter holder with daylight filter
- Suitable for F3000 and F5100
593-37-006
Filter holder empty
- Suitable for F3000 and F5100
