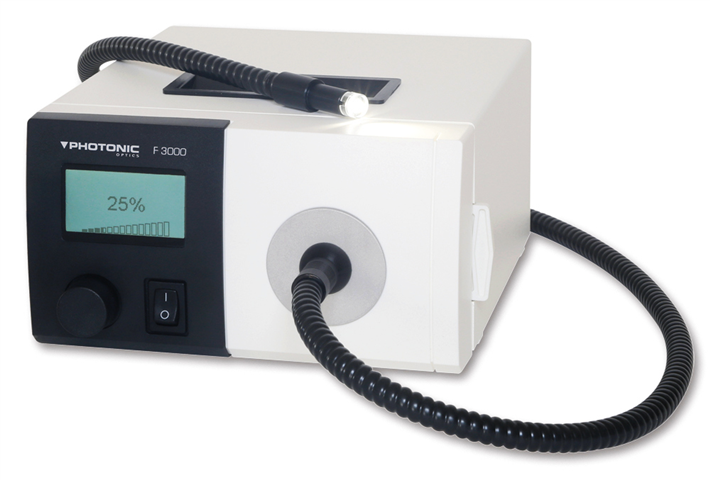

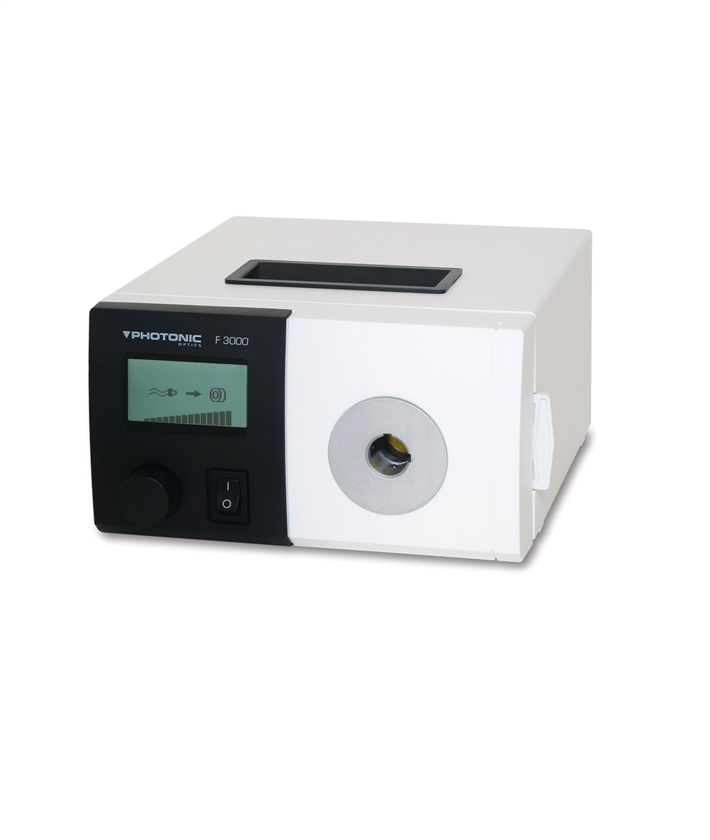

F3000 LED Light Source
LED light source for microscopy illumination, Life-Science and industrial applications, Brighter than a 150 W Halogen light source, Perfectly suitable for camera applications, Rippel- and flicker-free, LCD-Display (Product Code 10060.1)
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 3 images available to view - click to enlarge and scroll through the product gallery.
F3000 LED Light Source Accessories
/ Download as PDF
F3000 LED Light Instruction Manual
/ Download as PDF
- Brighter than a 150 W halogen light source
- Extended service life of approx. 25,000 h (70% of the output brightness), no lamp replacement required (no servicing costs, no storage costs for spare lamps)
- Colour temperature: 5800 K (can be adjusted in direction of halogen light using filter)
- Electronic shutter function
- Continuously variable luminance control
- Robust, stable metallic housing with quiet fan
- The device can be controlled via USB and foot switch
The LED light source F3000 is utilized in many different applications due to the well-proven LED technology used. LED’s enable great light quality over a very long time while reducing maintenance costs dramatically in comparison to halogen lamps. After 30.000 hours usage the light source still has a light output of 70 % of the original brightness. The light source is perfectly applicable for camera applications as the light is ripple- and flicker-free and reaches daylight quality with filters.
The light source combines the advantages of LED lighting and a fiber-optic light source. Highest light intensity, cold light and low maintenance result in an illumination solution, which covers a broad variety of forms of lighting in industry and life-science

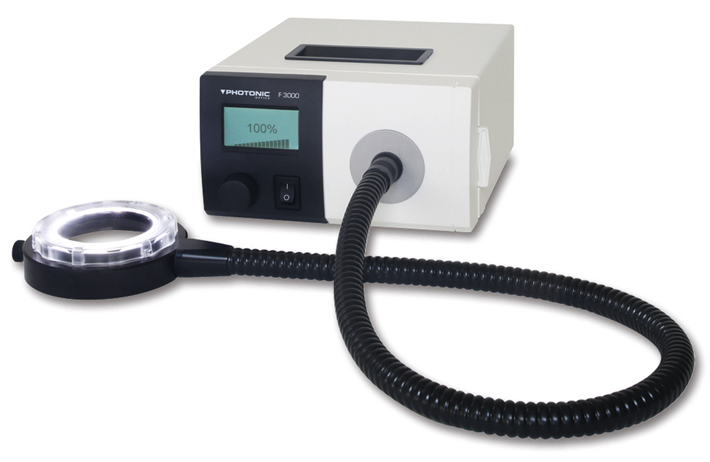

To complete setup select from a wide range of flexible and gooseneck light guides, focusable ring lights and backlights.
Specifications
| Lamps | Hi-Power LEDs |
| Luminance | Approx. 640 lm for fibre Ø 8 x 1000 mm |
| Colour temperature | Approx. 5,800 K |
| Maximum fibre diameter | 9 mm |
| Service life | Approx. L70 approx. 30,000 h (70% output luminance) |
| Cooling | Axial fan |
| Supply | 12 VDC, 5420 mA |
| Power input | 65 Watt |
| Ambient environment | 10–40 °C, max. 80% relative humidity |
| Light guide connection | Ø 15 mm |
| Rear connections | USB for control via PC, 2.5 mm jack for foot switch, ESD socket, DC socket |
| Display | Graphics display for operating status and comprehensive menu functions |
| Dimensions (B x D x H) | Approx. 170 x 196 x 98 mm without projecting parts |
| Weight | Approx. 3.8 kg |
