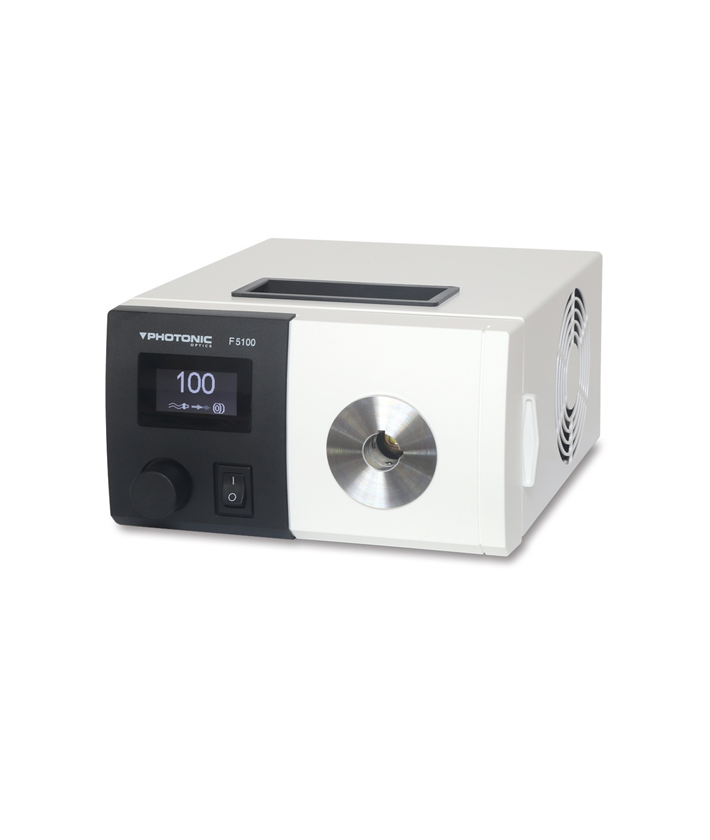

F5100 LED-Light-Source
LED light source for microscopy illumination, Brighter than 250 W Halogen light source (Product Code 10140)
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 2 images available to view - click to enlarge and scroll through the product gallery.
F5100 LED Light Source Accessories
/ Download as PDF
F5100 LED Light Source Instruction Manual
/ Download as PDF
- Brighter than a 250 W halogen light source
- Extended service life of approx. 25,000 h (70% of the output brightness), no lamp replacement required (no servicing costs, no storage costs for spare lamps)
- Colour temperature: 6500 K (can be adjusted in direction of halogen light using filter)
- Electronic shutter function
- Continuously variable luminance control
- Robust, stable metallic housing with quiet fan
- The device can be controlled via USB and foot switch
The F5100 is the latest fibre-optic light source and was specifically designed for stereomicroscopic applications in industry and life science. Due to unsurpassed light intensity and comprehensive PHOTONIC accessories the light source is outstanding in the market.
Through various possibilities to individualize the menu the F5100 adapts to every user individually. Especially notable is the strobe light function, which makes the light source unique in the market.
Specifications
| Lamps | Hi-Power LEDs |
| Luminance | Approx. 1200 lm for fibre Ø 8 x 1000 mm |
| Colour temperature | Approx. 6500 K |
| Maximum fibre diameter | 9 mm |
| Service life | Approx. L70 approx. 25,000 h (70% output luminance) |
| Cooling | Axial fan |
| Supply | 24 VDC, 4100 mA |
| Power input | 100 Watt |
| Ambient environment | 10–40 °C, max. 80% relative humidity |
| Light guide connection | Ø 15 mm |

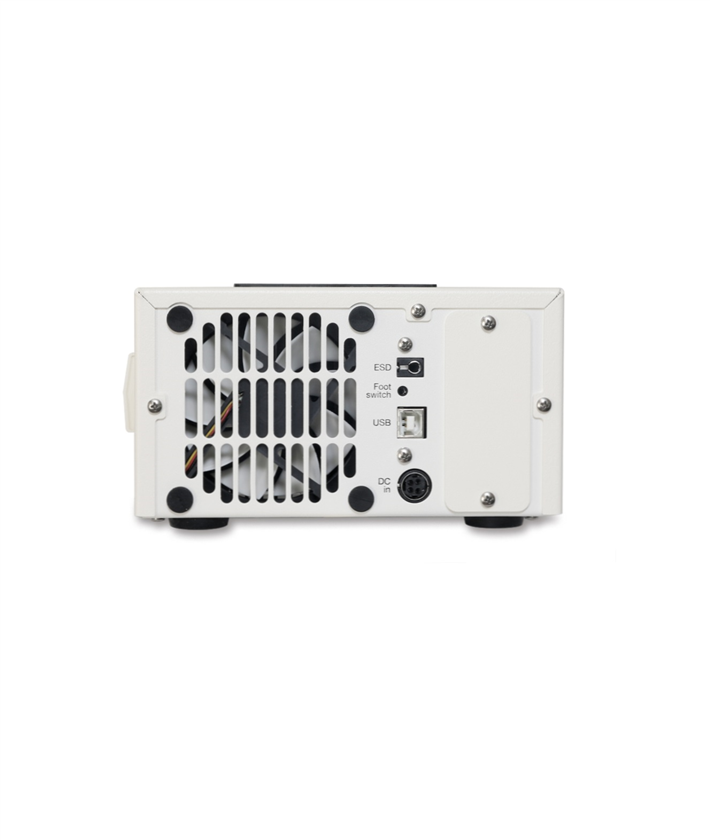

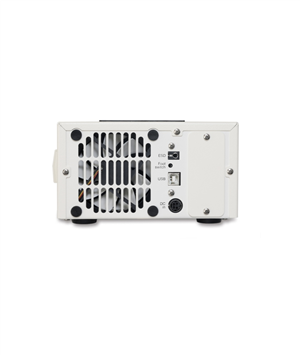

| Rear connections | USB for control via PC, 2.5 mm jack for foot switch, ESD socket, DC socket |
| Display | Graphics display for operating status and comprehensive menu functions |
| Dimensions (B x D x H) | Approx. 170 x 205 x 98 mm without projecting parts |
| Weight | Approx. 3.8 kg |
