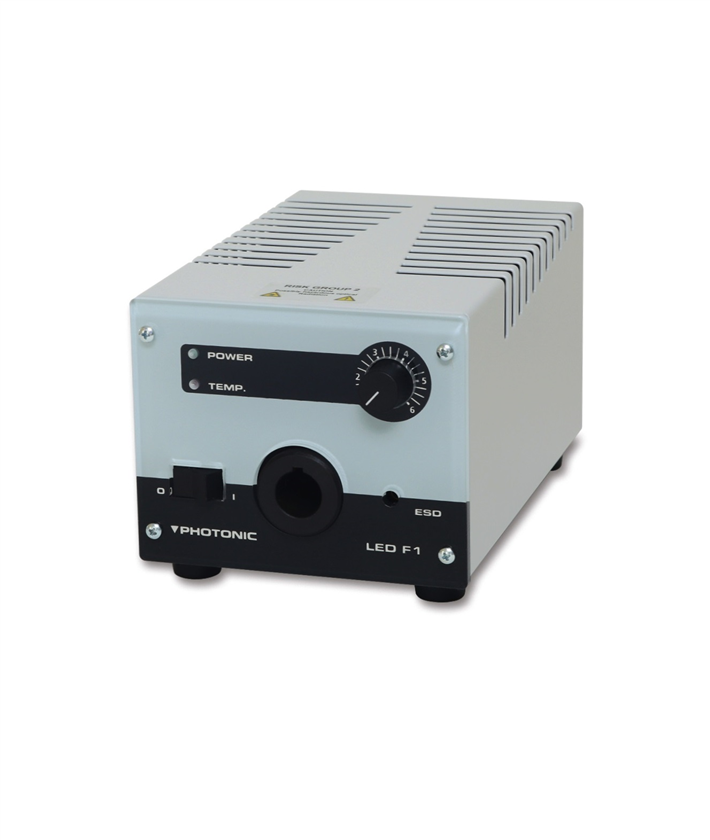

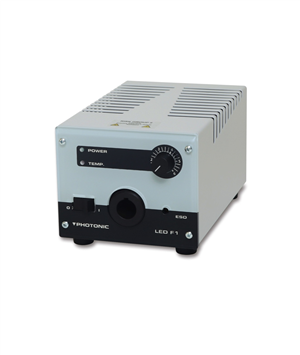

F1 LED-Light-Source

Overview

• LED light source (comparable with 100 W Xenon light source)
• High stability, super-low-noise, vibration-free operation
• Brightness control
• Long service life of up to 50,000 hours
• Minimal energy consumption and environmentally friendly

The LED light source F1 was specially designed to be used in very challenging conditions of industrial environments. This illumination solution combines vibration-free and silent operation with absolute reliability over the LED life span of 50,000 hours.

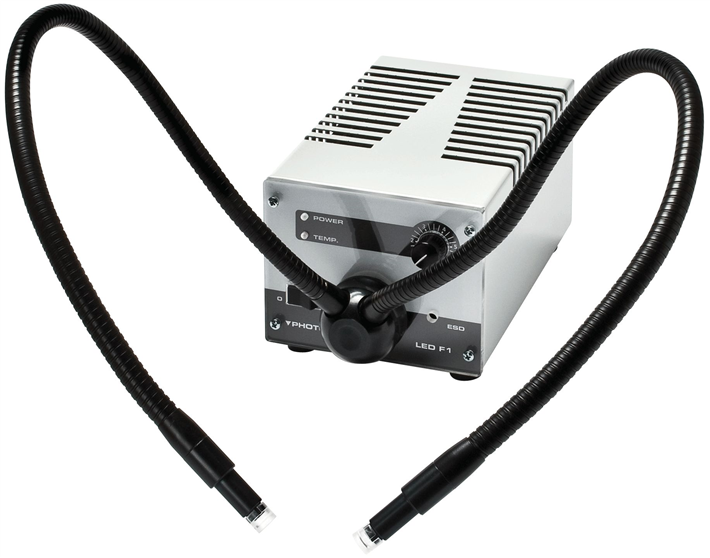

The compatibility of the F1 with PHOTONIC light guides and via customer-specific adapters with other light guides make it one of the most versatile industrial light sources on the market.

The compact design, a unique cooling concept and her absolute reliability in rough conditions convince our customers. In combination with the extensive accessories a broad variety of illumination forms can be realized, which are crucial in quality assurance to deliver outstanding products.

• Colour temperature: daylight quality
• No IR radiation, no UV radiation
• Minimal object heating
• Ripple-free and flicker-free
• No noise, no vibrations
• Free from air turbulence
• Insensitive to shock and vibrations
• ESD protection

Specifications

Lamp	High-power LEDs
Control range	Min. 30:1
Colour temperature	5,500 K (daylight)
Power input	22 W
Power supply	24 V DC +/– 5%; 100 mA; socket for hollow pin 5.5 x 2.1 mm
Brightness control	Infinitely adjustable using rotary potentiometer; with index marks
LED service life	50,000 hours
Light guide connection	Photonic standard (Ø 15 mm, galvanic isolation)
ESD socket	For 4 mm banana plug for potential equalisation
Power cord	Plug in
Dimensions (L x W x H)	96 x 110 x 175 mm without controls
Weight	2.5 Kg
