Lambda HPX-L5 LED

Lambda HPX-L5 LED

High Power LED Light Source with Liquid Lightguide


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

There are 1 images available to view - click to enlarge and scroll through the product gallery.

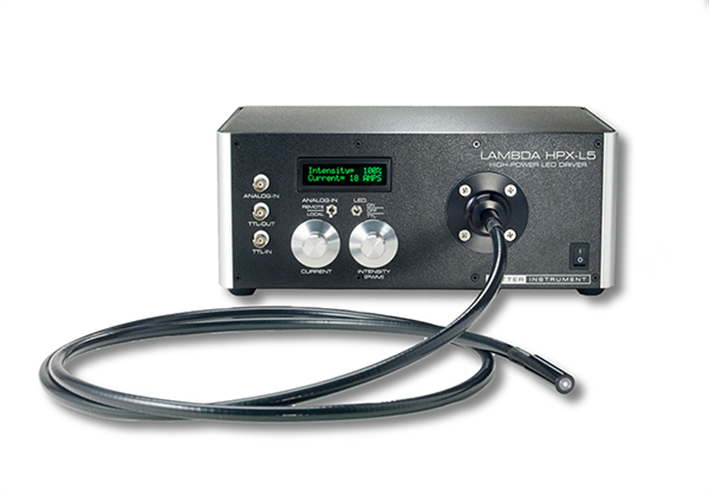

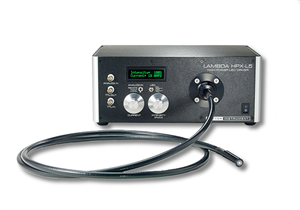

The Lambda HPX-L5 was created as a liquid light guide coupled version of the HPX, our newest high power LED light source. The liquid light guide allows for LED cooling via an internal heatsink with a whisper fan. This requires less maintenance than the liquid-cooled direct mount version. Designed around a single 90W 3 mm LED die, the Lambda HPX-L5 provides light output comparable to a 150W xenon arc lamp when using the same light guide. The Lambda HPX-L5 is optimized for coupling to an optional 5 mm liquid light guide, and off-the-shelf microscope adapter. The HPX is expected to retain 70% of it's original light output after 60,000 hours.

Because LEDs exhibit color shift with current change, the Lambda HPX was designed to dim the LED using either PWM or current control. PWM will be preferable for most applications, and allows the LED to run cooler. PWM switching is at 28 kHz, high enough for use with most high speed cameras. For those with applications intolerant of any pulsed output, dimming via current control is also available. PWM and Current information are conveniently displayed on the front panel display, and are manually selectable via control knobs. Integral shuttering time is 10 microseconds to turn on and off. TTL input and output allows for triggering from either software or directly from another device such as a camera or digital IO board. PWM can also be controlled externally via analog input. Active temperature monitoring insures that the LED life will be maximized.

Light output is in the visible spectrum from 430 nm - 700 nm. Special order units are available with 630 nm, 530 nm, 460 nm, and 405 nm wavelength specific LEDs. The Lambda HPX-L5 can also be combined with our FLED to create a two-channel system with any combination of wavelengths.

FEATURES

  • Vibration-free coupling via liquid light guide
  • Dimming via PWM or Current control
  • Lifetime > 50,000 hours
  • Front mounted connectors for ease of access
  • TTL and Analog controls
  • Integral Shuttering
  • White light and UV combination available


COMMON APPLICATIONS

  • Fluorescent microscopy
  • Optogenetics

Specifications

LAMBDA-HPX-L5 - Includes the Lambda HPX-L5 LED light source, liquid light guide and power cables.

HPX-L5 Lambda HPX-L5 High owered LED light source

Please select one wavelength when ordering

WC-HPX-L5 LED, Cool White
460-HPX-L5 LED, 460 nm
530-HPX-L5 LED, 530 nm
630-HPX-L5 LED, 630 nm



LAMBDA-HPX-L5UV - Includes the Lambda HPX-L5UV LED light source, liquid light guide and power cables.

HPX-L5UV Lambda HPX-L5UV LED light source

Available Wavelength

405-HPX-L5
LED, 405 nm


LAMBDA-HPX-L5DC* - Includes the Lambda HPX-L5 LED light source with cool white LED, Lambda FLED with UV LED, liquid light guide, and cables.

HPX-L5DC-Y Lambda HPX-L5 and FLED for Olympus (You will need a mounting adapter for your microscope)

HPX-L5DC-N Lambda HPX-L5 and FLED for Nikon (You will need a mounting adapter for your microscope)

HPX-L5DC-Z Lambda HPX-L5 and FLED for Zeiss (You will need a mounting adapter for your microscope)

HPX-L5DC-L Lambda HPX-L5 and FLED for Leica (You will need a mounting adapter for your microscope)

* Suitable for additional DAPI channel



ACCESSORIES

0777648 Replacement Liquid light guide (2 meters, 5mm diameter)

TRIGGER USB trigger box (Compatible with Micro-Manager software)

Mounting adapters for Nikon, Zeiss, Leica and Olympus microscopes are available. Please see the Microscope Adapters list.


TECHNICAL SPECIFICATIONS


Output Range
White light (430 nm - 700 nm)


Shuttering
Turn on time: 10 µs
Turn off time: 10 µs


Noise/Short term stability
0.02%


LED Life
60,000 hours


PWM Frequency
28 kHz


Input / Output
TTL & Analog


Standard White LEDs
Cool White only (see spectra)


Optional LEDs
630 nm, 530 nm, 460 nm, and 405 nm


Dimming
PWM or Current control


Dimensions
Control Box
12.25 in W x 9 in D x 5.25 in H | 311 mm W x 229 mm D x 133 mm H


Weight
8.8 lbs | 4 kg


Electrical
120/240 Volts
50/60 Hertz power line
150 Watts max
