Lambda TLED / TLED+

Overview

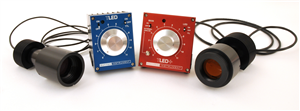

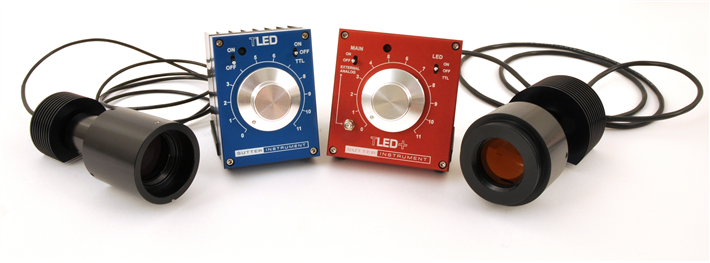

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Lambda TLED DataSheet
/ Download as PDF

FEATURES

• > 50,000 hour lifetime
• < 25µsecs ON-OFF time
• TTL control (with polarity switch)
• Very stable output
• Compact stand-alone design
• Easy installation

The Lambda TLED and TLED+ are stand-alone LED light sources that can be used with the transmitted light path of a microscope or in other applications with similar requirements.

The basic system consists of an LED mounted on a special black-anodized aluminum heat sink and a controller. Both TLED and TLED+ controllers are powered by a rugged modular universal power supply. The controllers provide intensity control and on-off control via a toggle switch or TTL logic. The on-off time is < 25 µsecs when using TTL control. In addition to digital input control, the Lambda TLED+ has an analog input to modulate the LED intensity. The Lambda TLED and TLED+ are expected to have stable output that will last in excess of 50,000 hours.

The Lambda TLED and TLED+ can be ordered with a high-output white light LED making it a suitable light source for contrast methods including Phase and Differential Interference Contrast (DIC).

As an alternative to the standard white-light LED, we have several options available including an IR-LED which is suitable for experiments requiring IR-DIC. Please contact Sutter for details.

Our dual channel Lambda TLED+ option combines two high power LEDs into a single light path. The TLED-DC includes a 460nm LED for stimulation, while the second channel passes the phosphor emission from a white light LED. The white light channel can be used to access spectra between 510nm to 630nm and is suitable for a variety of applications. Both channels are driven by individual TLED+ controllers and can be triggered, also individually, by a TTL signal. Alternate wavelength configurations are available.

TLED / TLED+ Comparison

* other wavelengths available upon request

Each Lambda TLED/TLED+ system includes an optical mounting adapter for the microscope and detailed installation instructions. Mounting adapters are designed to fit most models of Nikon, Olympus, Zeiss and Leica microscopes. Custom adapters for the Lambda TLED/TLED+ are available at an additional cost.

Specifications

LAMBDA TLED Single Channel LED Light Source

Includes Lambda TLED light source, TLED controller and power supply

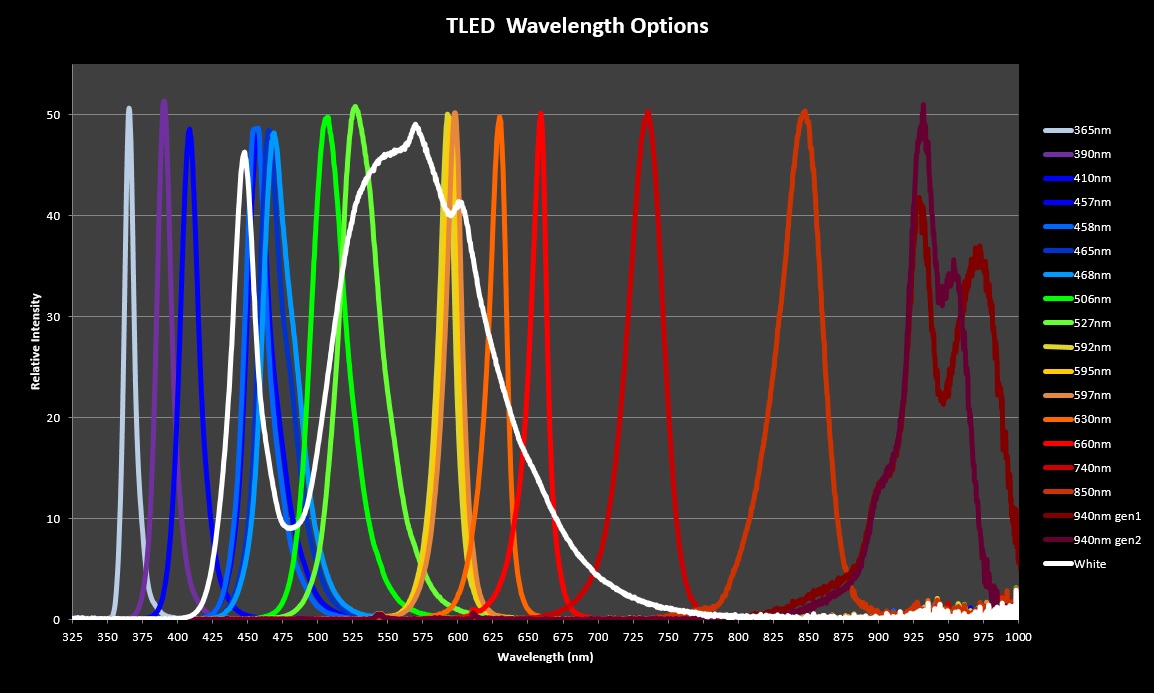

Please select a wavelength when ordering: White, 405nm,460nm, 505nm, 530nm, 624nm, 660nm, 740nm, 850nm, 940nm*

Catalog Number Description
TLED-N Lambda TLED for Nikon
TLED-N40 Lambda TLED for Nikon E400/E600
TLED-N50 Lambda TLED for Nikon AZ100
TLED-N65 Lambda TLED for Nikon FN1
TLED-Y Lambda TLED for Olympus
TLED-Z Lambda TLED for Zeiss
TLED-L Lambda TLED for Leica
TLED-C Lambda TLED for C-mount


LAMBDA TLED+ Single Channel LED Light Source

Includes Lambda TLED+ light source, TLED+ controller and power supply
Please select a wavelength when ordering: White, 365nm, 385nm, 460nm, 530nm, 630nm*

Catalog Number Description
TLEDPLUS-N Lambda TLED+ for Nikon
TLEDPLUS-Y Lambda TLED+ for Olympus
TLEDPLUS-Z Lambda TLED+ for Zeiss
TLEDPLUS-L Lambda TLED+ for Leica


LAMBDA TLED-DC Dual Channel LED Light Source

Includes Dual Channel Lambda TLED-DC with 2 TLED+ controllers and power supplies
Please select a wavelength combination when ordering: White and 385nm / White and 460nm / 385nm and 530nm / 460nm and 630nm / 530nm and 630nm*

Catalog Number Description
TLED-DC-N Dual Channel Lambda TLED for Nikon
TLED-DC-Y Dual Channel Lambda TLED for Olympus
TLED-DC-Z Dual Channel Lambda TLED for Zeiss
TLED-DC-L Dual Channel Lambda TLED for Leica


LAMBDA TLED-RGB LED Light Source

Includes Lambda TLED-RGB light source, TLED controller and power supply

Catalog Number Description
TLED-RGB-N Lambda TLED-RGB for Nikon
TLED-RGB-Y Lambda TLED-RGB for Olympus

ACCESSORIES

Catalog Number Description
TRIGGER² USB trigger box

Custom mounting adapters are available at an additional cost. Contact Sutter for details.

* Other wavelengths may be available. Contact Sutter for details.
¹ Suitable for additional DAPI channel
² Compatible with Micro-Manager software

TECHNICAL SPECIFICATIONS

Output Range
 White light (400nm - 700nm)

Noise/Short term stability
 0.01%

LED Life
 > 50,000 hours

Control Box Dimensions
TLED
 3in x 3.5in x 4.1in | 7.6cm x 8.9cm x 10.2cm

TLED+
 4in x 3.25in x 4.1in | 10.2cm x 8.3cm x 10.2cm

Weight
 2.2 lbs | 1.0 kg

Electrical
 120/240 Volts
 50/60 Hertz power line
 75 Watts max

Accessories
