Pneumatic PicoPump with vacuum

Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

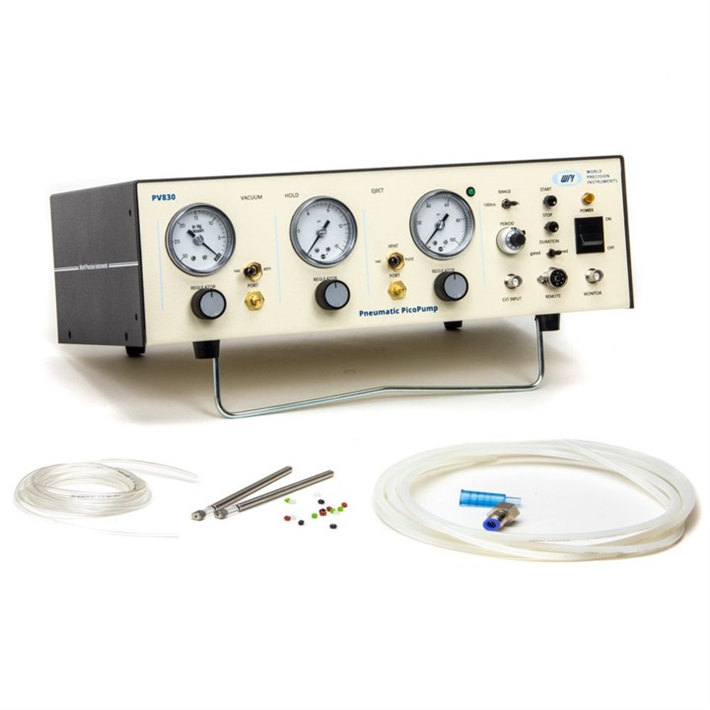

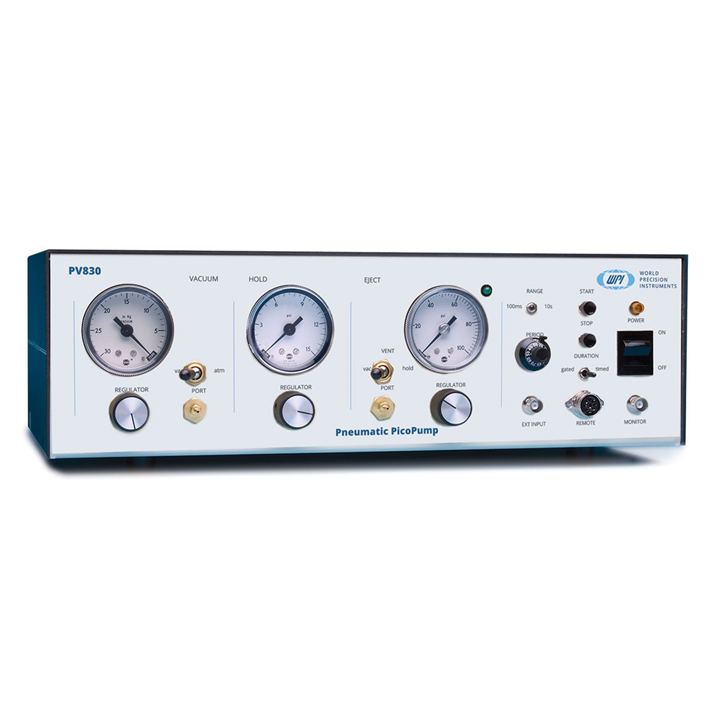

Pneumatic PicoPump  PV830

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Instruction Manual
/ Download as PDF

Zebrafish Microinjection Setup
/ Download as PDF

Microinjection Datasheet
/ Download as PDF

  • Regulated Hold, Ejection and Vacuum Pressure
  • Carefully regulated air pressures for securing cells and injecting them with fluid
  • Pressure Input: 0-150 psi
  • Pressure Output: 0.3-90 psi

Intracellular injection

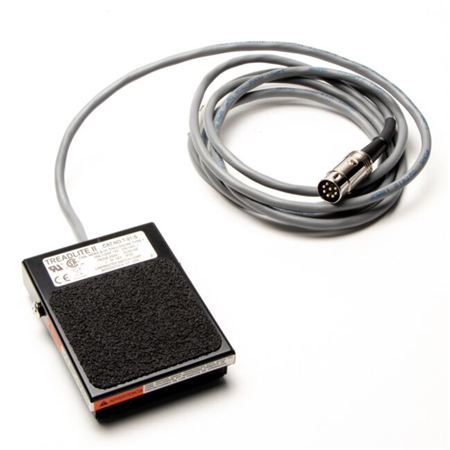

Designed to simplify intracellular injection and a variety of other microinjection tasks, WPI™s PicoPumps use carefully regulated air pressures for securing cells and injecting them with fluid. Injected volumes range from picoliters to nanoliters. Separate ports supply positive and negative pressure - positive pressure for high-pressure ejection, and suction for supporting the cell or for filling the pipette from the tip. A second pressure port maintains a low positive "holding" pressure to the injecting pipette between injection pulses, to prevent fluid up­take through capillary action or diffusion. Timing, ejection pressure, holding pressure, and suction are adjusted independently by control knobs and indicator gauges on the front panel. Injection pressure is controlled by a 20-turn regulator on the front panel. A built-in timing circuit allows precise control of the amount of time that the injection pressure is applied to the output port. Time intervals can range from 10 seconds down to 10 ms or less, depending on the eject pressure setting. The injection pressure interval can be triggered manually on the front panel, by footswitch, or by computer controlled TTL pulse. A 5 volt monitor output provides a logic-level pulse for your computer or other monitoring device.

PV830 Features

Eject pressure, Hold pressure, and Vacuum are all available, controlled by separate regulators on the front panel. Eject pressure supplies a high-pressure pulse for injecting fluid. Hold pressure, which is not sufficient to cause fluid ejection, is used to prevent back filling of the pipette by capillary action or diffusion when the solenoid is inactive. Pressure in the injection pipette is automatically switched between Eject and Hold pressure by a precision timing circuit that controls a solenoid valve. Vacuum is used to fill pipettes from the tip or to secure a floating cell during microinjection. Vacuum is regulated the same way, by a 20-turn knob on the front panel. Vacuum may be switched from regulated vacuum to atmosphere by using the pneumatic toggle on the front panel. Vacuum can also be routed to the eject port.

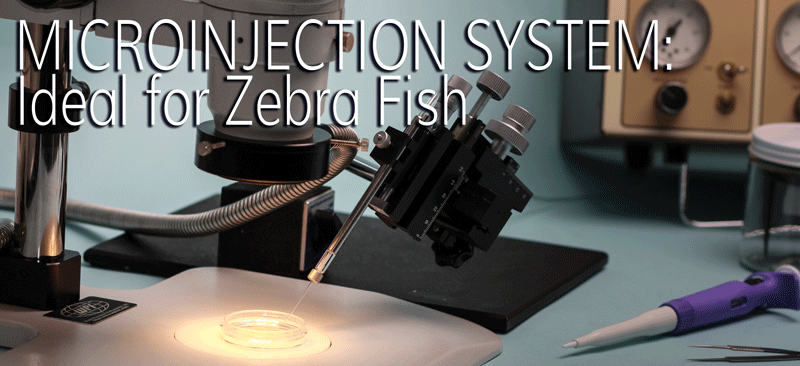

Ideal for zebrafish microinjection systems.



Pressure Input 0-150PSI
Pressure Output 0.3-90PSI
Lowest Regulated Pressure 12" water
Regulator Accuracy 0.1% (20-turn dial)
Regulator Repeatability 0.05PSI (both hold and eject pressures)
Gauge Accuracy 3% at full scale (both hold and eject pressures)
Input Connector Quick Connect (1/4" OD tubing)
Output Connector Barbed (1/16" ID tubing)
Control Solenid


Vacuum Input 0-30.0" Hg
Vacuum Output 0.2-29.9" Hg
Lowest Regulated Vacuum 3" water
Regulator Accuracy 0.1% (20-turn dial)
Regulator Repeatability 0.03" Hg
Gauge Accuracy 3% at full scale
Input Connector Quick Connect (1/4" OD tubing)
Output Connector Barbed (1/16" ID tubing)
Control Manual
Vent Atmosphere


Input Kit 10' nylon tubing (0.25" OD, 1000PSI), one 1/2" female NPT adapter
Output Kit Two PicoNozzle


Power 95-135V or 220-240V, 50/60Hz
Dimensions 17 x5.25 x 9.5" (43 x 13 x 24cm)
Shipping Weight 14 lb. (6.3kg)





Manual Micromanipulator (right-handed)

View details...



Magnetic Stand

View details...

Choose Quantity

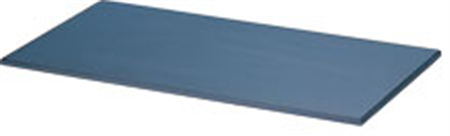

Steel Base Plate. 21.5 x 30 cm. 4.5kg
