Stands/Accessories
See our selection of stands and magnetic bases for use with manipulators in research laboratories.
| Stand | Main Pole Dia | Main Pole Length | Sub Pole Dia | Sub Poles Length | Clamp | Vertical Holding Power | |
|---|---|---|---|---|---|---|---|
| M9 |  |
12 mm | 119 mm | 12 mm | 106 + 25 mm | 100 kgf | |

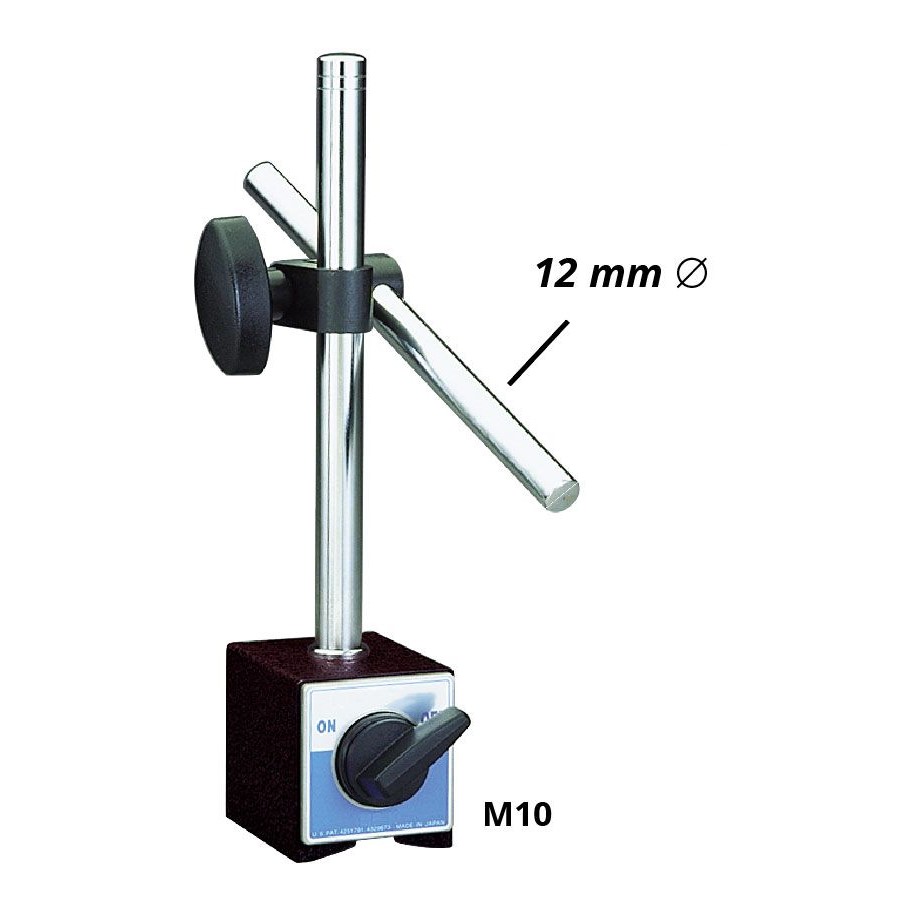

| M10 |  |
14 mm | 178 mm | 165 mm | 4.5 to 6.5 mm | 80 kgf | |

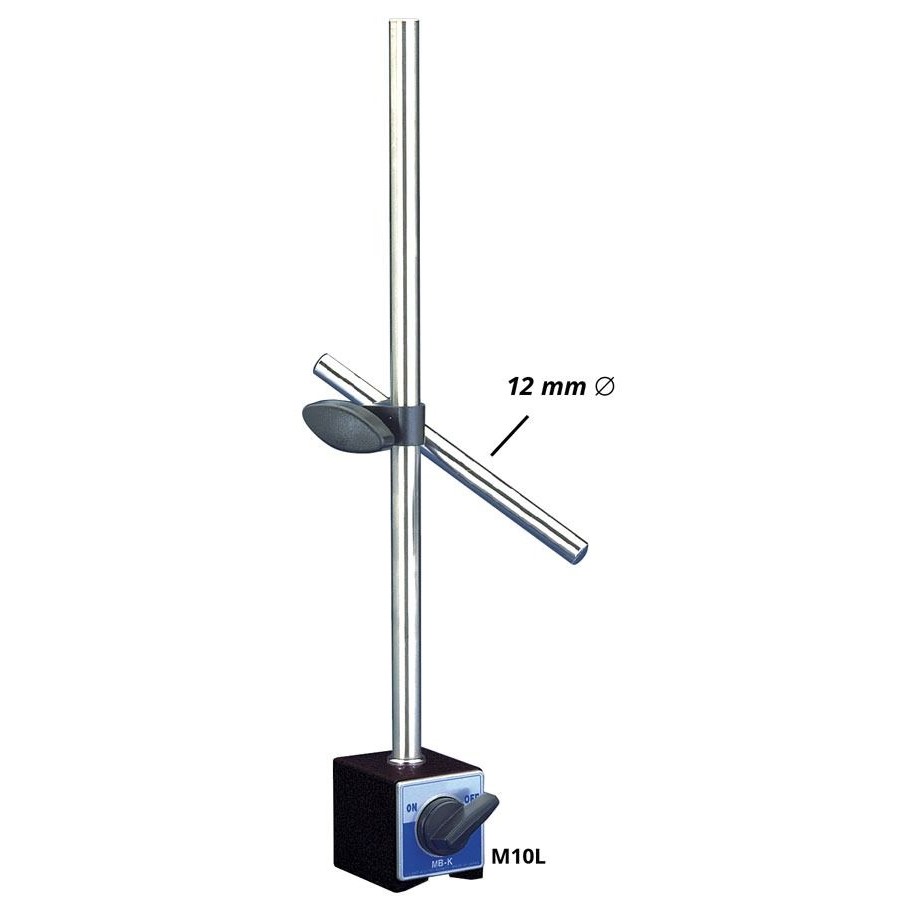

| M10L |  |
14 mm | 356 mm | 165 mm | 4.5 to 6.5 mm | 80 kgf | |

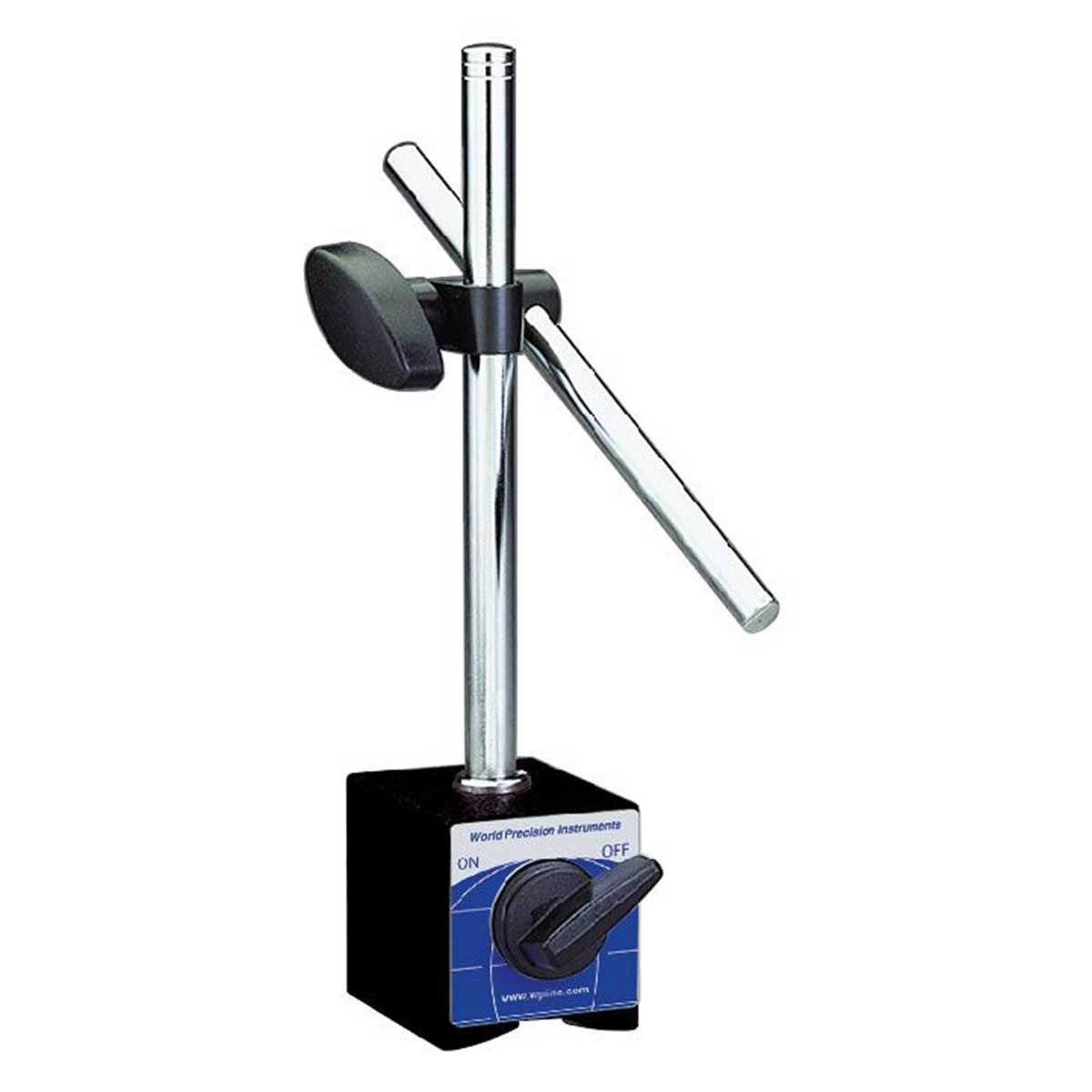

| M1 |  |
12 mm | 176 mm | 10 mm | 165 mm | 4.5 to 6.5 mm | 80 kgf |

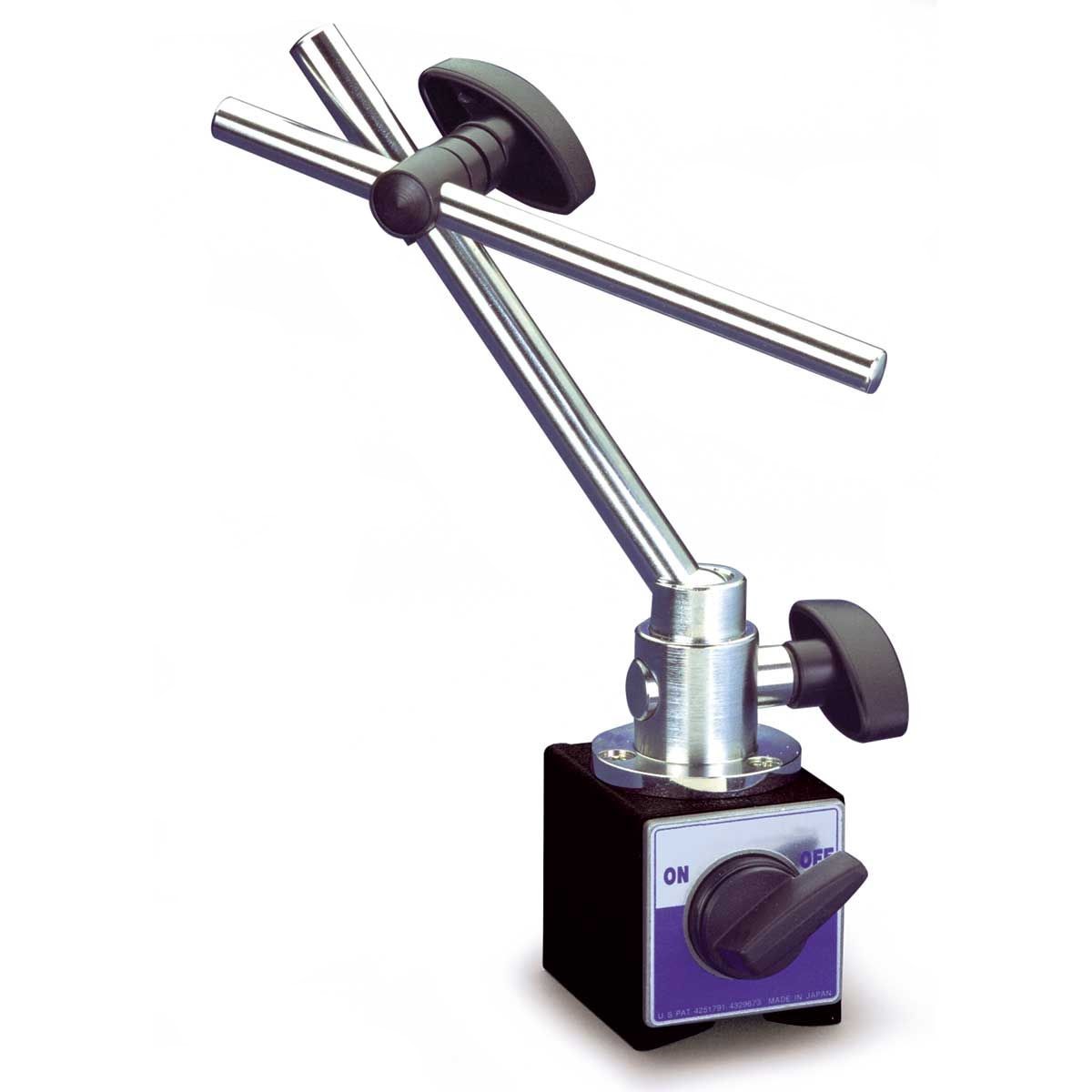

| M8 |  |
12 mm | 194 mm | 165 mm | 4.5 to 6.5 mm | 80 kgf | |

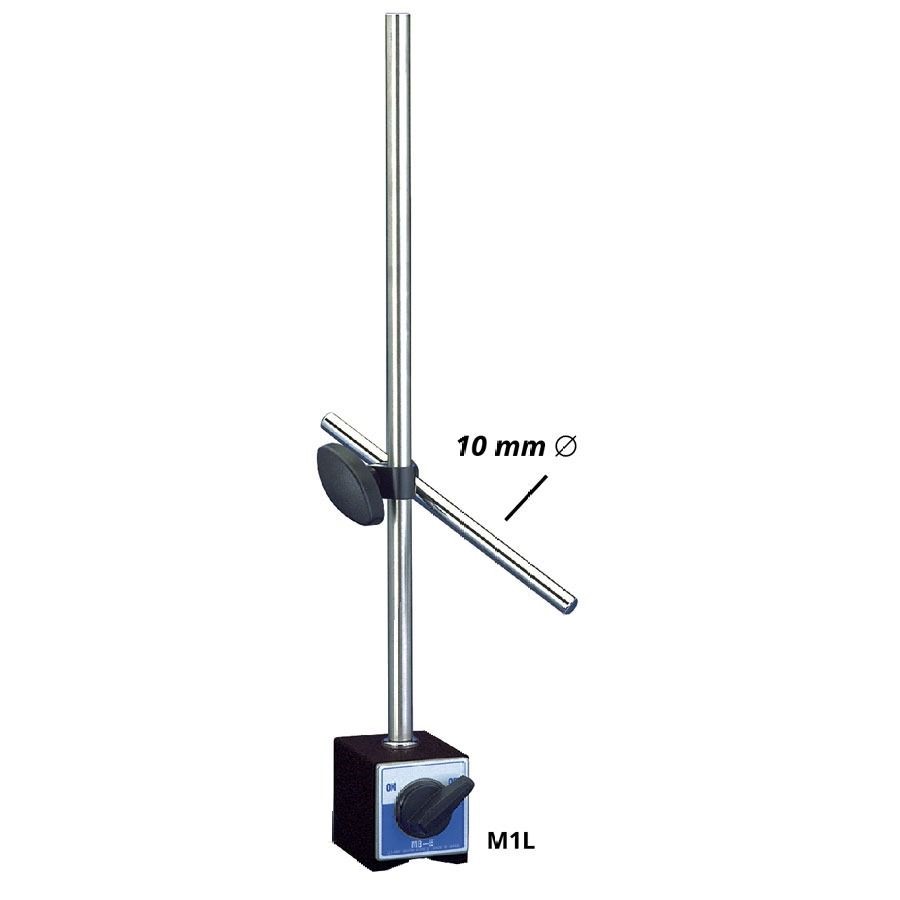

| M1L |  |
12 mm | 356 mm | 165 mm | 4.5 to 6.5 mm | 80 kgf | |

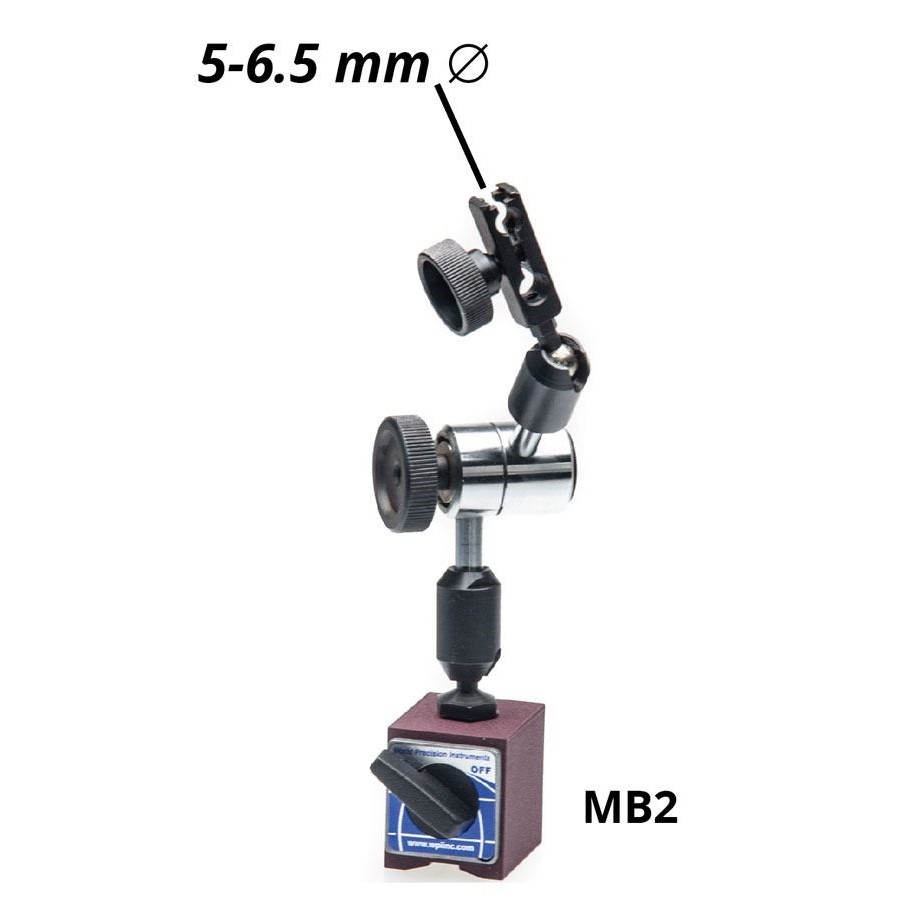

| MB2 |  |
46 mm | 46 + 39 mm | 5 to 6.5 mm | 17 kgf | ||
| M7 |  |
7 mm | 52 mm | 6 mm | 20 kgf | ||

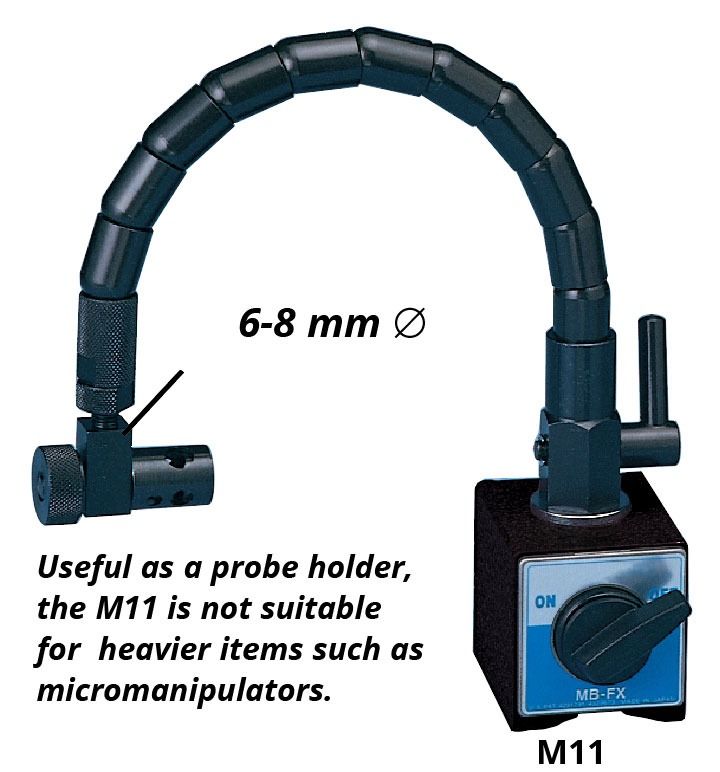

| M11 |  |
16 mm | 315 mm | 6 to 8 mm | 80 kgf | ||

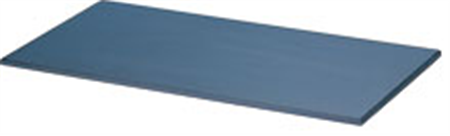

5479
Steel Base Plate. 30.5 x 61 cm. 14.5kg
5052
Steel Base Plate. 21.5 x 30 cm. 4.5kg

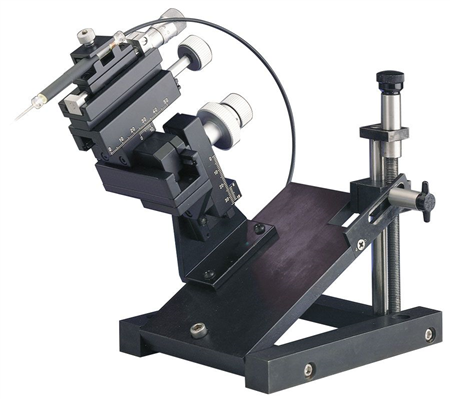

TBS
Tilting Base with Screw Adjustment. Tilt angle up to 35 degrees. 3.5-lb steel base provides stability. Adjust tilt angle by turning knob.
Micromanipulator not included.
- 5” x 6” footprint saves space in your work area
- High precision and high stability
- Tilt angle up to 35º
- 3.5-lb steel base provides stability for your micromanipulator
- Holes also allow permanent mounting to your bench top
- Adjust tilt angle by turning knob
- Manipulator mounting bracket included
.png)
M-3
Tilting Base, 60 x 130 x 6 mm, adjustable to 80 degrees.
- Adjustable to 80 degrees
- 60 x 130 x 6 mm (5.1"x 0.25"x 2.3")
- 5464 5-lb weight for Tilting Base sold separately
- Thumbscrew included for metric anti-vibration platforms with M6 holes

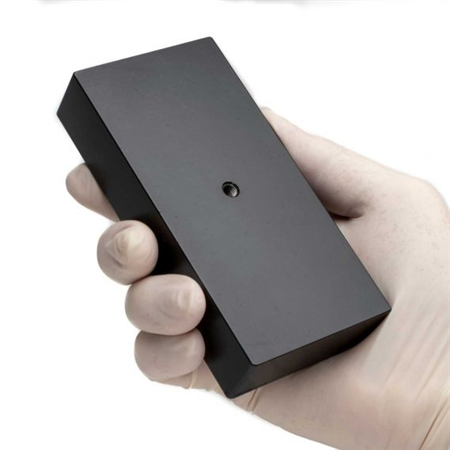

5464
Base Weight for M-3.5-lb weight for M-3 Tilting Base
- 5-lb weight for Tilting Base
- 25.4 x 60 x 130 mm (1"x2.3"x5.1")
- M6 screw hole
M4C
Microscope Stage Adapter. Mount to any microscope stage up to 20 mm.

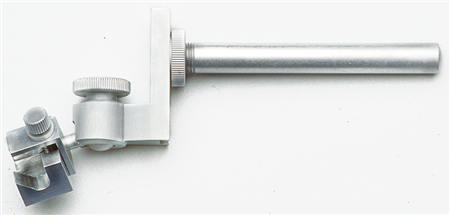

500475
Ball Joint. 7 cm long. For 8 mm diameter holder.
500476
Ball Joint. 4 cm long. For 4 mm diameter holder.

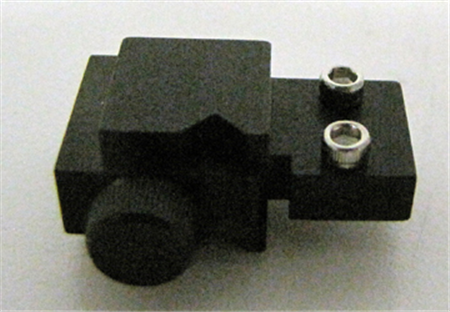

MM1-C
Clamp for MM1 and MM1-3. Mount electrodes on miniature manipulators. Opens 0-4mm.

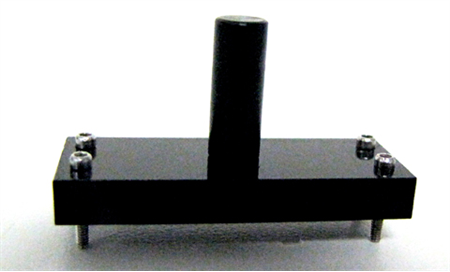

MM1-A
Adapter for MM1 and MM1-3. Mount the MM1 miniature manipulator on an MB2 magnetic stand.

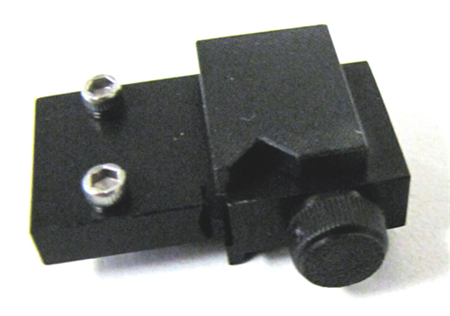

MM3-C
Clamp for MM3 and MM3-3. Mount electrodes on miniature manipulators.
MM3-A
Adapter for MM3 and MM3-3. Mount the MM3 miniature manipulator on an MB2 magnetic stand.

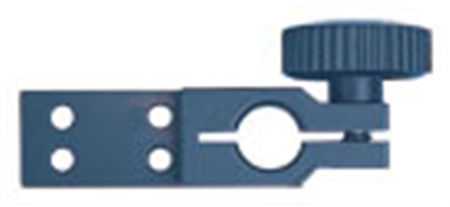

M2
Manipulator Mounting Clamp.Diameter: 12 mm clamp. Interchangeable clamp allows manipulator to be mounted on a variety of supports.

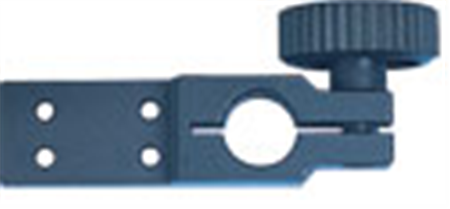

M5
Manipulator Mounting Clamp to 10 mm diameter rod
This interchangeable clamp allow you to mount WPI manipulators DC3001, KITE, M3301, MMJ, and MD4 to a 10 mm mounting rod
- Diameter: 10 mm clamp
- Fits stands M1, M1L and M8 which have a 10 mm diameter mounting rod
- Fits WPI micromanipulators DC3001, KITE, M3301, MMJ, and MD4
M3301EH
Replacement Electrode Holder, 14 cm x 7.2 mm diameter.
Replacement Electrode for Manual Manipulator Left/Hand M3301L and Right/Hand M3301R

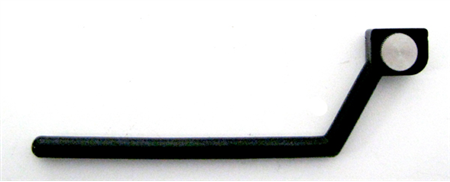

15873
Angled Electrode Holder. 13 cm long, 7.2 mm diameter.
