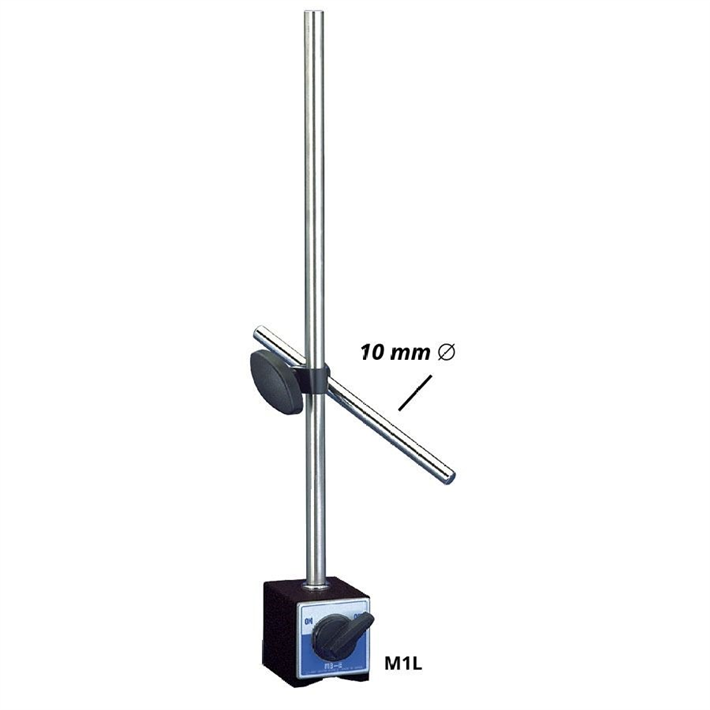

M1L

Overview

• Main Post Diameter: 12 mm
• Sub Post Diameter: 10 mm
• Height: 356 mm
• Not for use with the KITE or M3301 (See M10)

Features

A precision magnetic base provides stable support for such devices as electrodes and micromanipulators. The adjustable second arm adopts a variety of angles.These are an ideal manipulator stands.

Same base and support arm as M1, but equipped with a longer (14-inch) vertical post. (Optional M5 10 mm clamp should be added for use with M3301, DC3001, MD4 and MMJ manipulators.)

Base

50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2.0 x 2.3 x 2.2 in. )

Vertical Holding Power

80 kgf (176 lb force)

Main Pole

diameter: 12 mm (0.47 in.) length: 356 mm (14 in.)

Sub Pole

diameter: 10 mm (0.39 in.) length: 165 mm (6.5 in.)

Clamp Hole

diameter: 4.5 mm and 6.5 mm

Weight

1.8 kg (4 lb)
